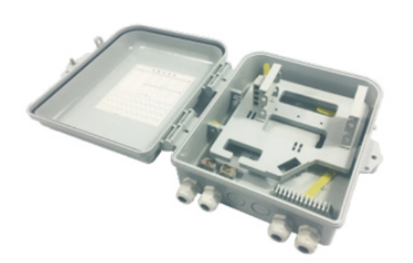

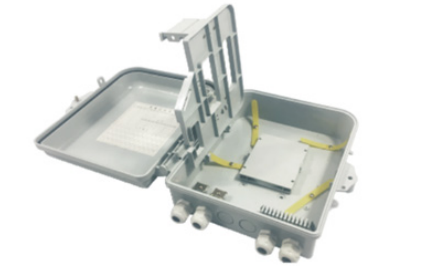

F2H-FSB-16-AC Fiber Splitter Box-16 Cores

undefined
undefined

Functions

Grandway’s Fiber Splitter Box provides a high density wall mounted or pole mounted solution for next generation networks, which aims to provide and manage fiber splitters in a limited space. It is designed for FTTH (Fiber to the Home) or FTTB (Fiber to the Building) with protective housing for all the passive fiber equipment installed inside.








F2H-FDB-P001-2 Fiber Distribution Box

DATASHEET

F2H-FDB-P001-2 Fiber Distribution Box

SOFTWARE

F2H-FDB-P001-2 Fiber Distribution Box

MANUAL

F2H-FDB-P001-2 Fiber Distribution Box

CERTIFICATE

F2H-FSB-16-AC Fiber Splitter Box-16 Cores


undefined

1. Water-proof design with IP65 Protection level

2. Integrated with splice cassette and cable management system

3. Manage fibers in a reasonable fiber radius condition

4. Easy to maintain and extend the capacity

5. Fiber bend radius control more than 40mm

6. Suitable for the fusion splice or mechanical splice

7. 1*8/1*16 Insertion Module Splitter can be installed

8. 2 ports cable entrance for FTTH Drop Cable
