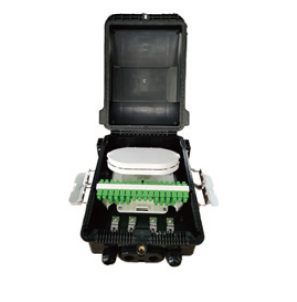

F2H-FTB-24-Y Fiber Termination Box-24 Cores
Grandway’s Fiber Termination Box is able to hold up to 24 subscribers.It is used as a termination point for the feeder cable to connect with drop cable in FTTX network system.It integrates fiber splicing，splittting，distribution，storage and cable connection in one solid protection.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
1. The box casing is made of industrial plastic PC+ABS material.
2. Outdoor application and good UV resistant.
3. Maximum 96F splice capacity，stainless anti-rust bolts and nuts.
4. Easy for maintenance and expansion.
5. Fiber bend radius control more than 35mm.
6. 180 degree access with 2 pcs of buckled lock structure.
7. Designated position for the placement of 3 pcs of 1:8 splitter .
8. Protection level：IP65.
9. 1 mid-span cable entrance(10-14mm) for uncut cable and 4 reserved cable entrance(8-12mm) for distribution cable gland.
