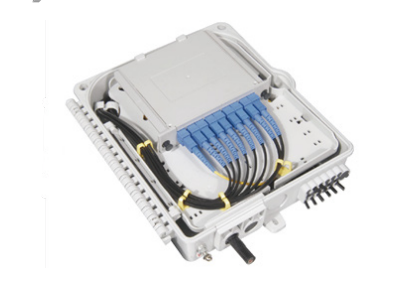

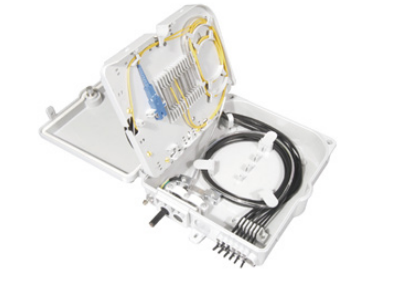

F2H-FSB-8-A Fiber Splitter Box-8 Cores
Grandway’s Fiber Splitter Box provides a high density wall mounted or pole mounted solution for next generation networks, which aims to provide and manage fiber splitters in a limited space. It is designed for FTTH (Fiber to the Home) or FTTB (Fiber to the Building) with protective housing for all the passive fiber equipment installed inside.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
1. Water-proof design with IP65 Protection level
2. Integrated with splice cassette and cable management system
3. Manage fibers in a reasonable fiber radius condition
4. Easy to maintain and extend the capacity
5. Fiber bend radius control more than 40mm
6. Suitable for the fusion splice or mechanical splice
7. 1*8 Insertion Module Splitter can be installed
8. 8 ports cable entrance for FTTH Drop Cable
