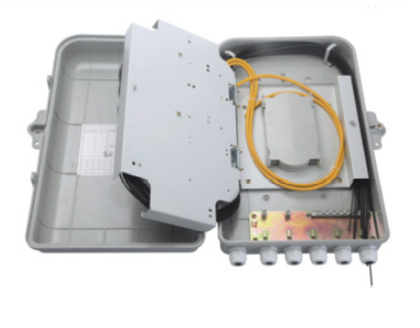

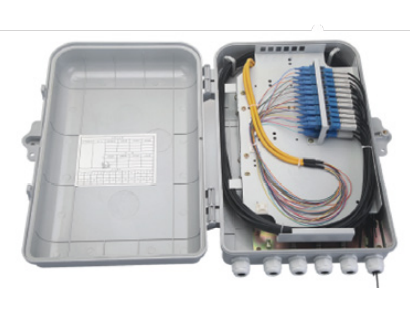

F2H-FTB-24-Q Fiber Termination Box-24 Cores
Grandway’s Fiber Termination Box provides a high density wall mounted solution for next generation networks, which aims to provide and manage maximum numbers of fiber termination in a limited space. It is normally installed in the way of wall mounting or pole mounting.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
1. Water-proof design with IP65 Protection level
2. Integrated with splice cassette and cable management system
3. Manage fibers in a reasonable fiber radius condition
4. Easy to maintain and extend the capacity
5. Fiber bend radius control more than 40mm
6. Suitable for the fusion splice or mechanical splice
7. 3 ports cable entrance for FTTH drop cable.
