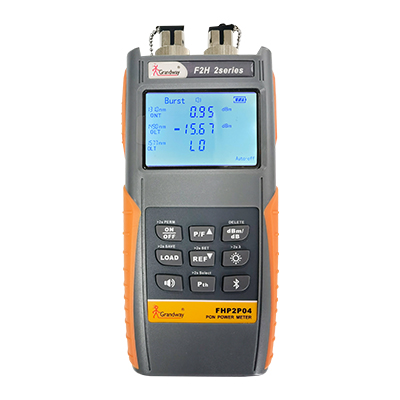

FHP2P04 10G PON Power Meter
GRANDWAY
FHP2P04 10G PON power meter is suitable for the G/EPON and XG(S)PON/10GEPON signal power testing. It can simultaneously measure the voice, data signals on 1490nm/1577nm (downlink) and 1270nm/1310nm (burst mode uplink) optical fiber. It is an ideal choice for PON network engineering, construction and maintenance to detect and analyze whether the signal power is meet the standard by threshold data.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Support measuring upstream 1310nm/1270nm and downstream 1490/1577nm optical power level
Applicable to GPON&XG(S)-PON and EPON&10G-EPON co-existence PON network
10 groups user defined Pass, Warning, Fail mode
Support USB Type-C charing and test data upload
Support powerful PC software to generate the test report
Bluetooth is optional
| ltems | Specifications |
|---|---|
| Wavelength | 1270nm 1310nm 1490nm 1577nm |
| Measurement Range(dBm) | -10~+13 -30~+13 -50~+13 -50~+17 |
| Spectral Passband(nm) | 1270±10 1310±20 1490±10 1577±6 |
| Insertion loss | ≤1.5dB |
| Uncertainty | ≤0.5dB |
| Display Resolution | 0.01dB |
| Display Unit | dBm/dB |
| Threshold Setting | 10 groups user defined |
| Data Storage | 700 groups |
| Optical Port | SC/APC*2 or SC/UPC*2 |
| Communication Port | USB Type-C interface |
| Bluetooth | Optional |
| Power Supply | 2*2500mAh Ni-MH AA battery; 5V/1A AC/DC adapter |
| Dimension | 160Lx76Wx45H(mm) |
| Weight | 300g |
