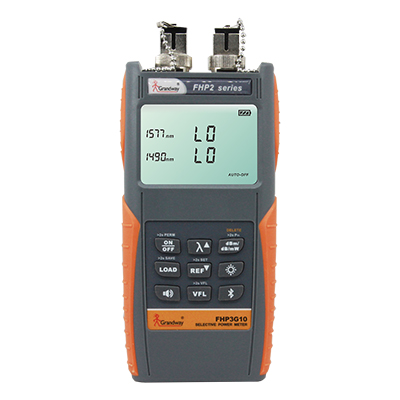

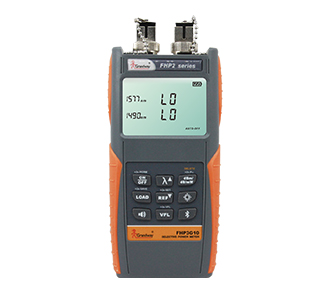

FHP3G10 Selective Power Meter
GRANDWAY
With the gradual upgrading of EPON/GPON network to 10G-EPON/XG(S)-PON, the downstream of PON network will exist two wavelengths of 1490nm and 1577nm; Meanwhile, some PON network exist overlay 1550nm RF video signals, which cannot be distinguished and measured separately by ordinary broadband power meter. FHP3G10 is a professional instrument specially used to measure the downstream 1490nm,1577nm power levels and 1550nm video signal in Combo PON network. It also supports 10 groups user-defined Pass/Warning/Fail function and VFL function.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Support selective power level 1490/1577/1550nm measurements separately at the same time
Applicable to GPON&XG(S)-PON, EPON&10G-EPON and RF CATV co-existence PON network
Built in 10mw VFL function
10 groups User defined Pass, Warning, Fail mode
Support USB Type-C charging and test data upload
Support Powerful PC software to generate the test report
Bluetooth is optional

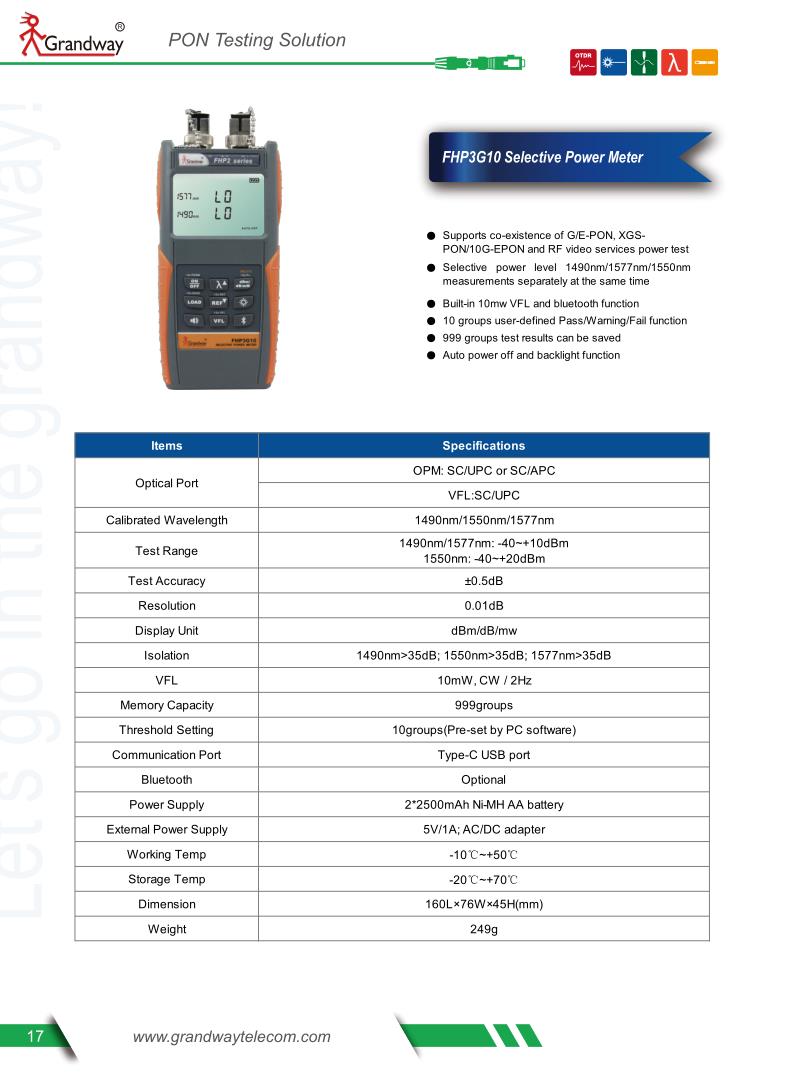

| ltems | Specifications |
|---|---|
| Selective Power Measure | 1490nm/1550nm/1577nm |
| Test Range | 1490nm/1577nm: -40~+10dBm; 1550nm: -40~+20dBm |
| Test Accuracy | ±0.5dB |
| Resolution | 0.01dB |
| Display Unit | dBm/dB/mw |
| Isolation | 1490nm>35dB; 1577nm>35dB |
| VFL | 10mw; CW/2Hz working mode |
| Memory Capacity | 999 |
| Optical Port | OPM/VFL: SC&2.5mm universal port for SC/FC/ST |
| Communication Port | Type-C USB Port |
| Bluetooth | Optional |
| Power Supply | 2*2500mAh Ni-MH AA battery; 5V/1A AC/DC adapter |
| Dimension | 160Lx76Wx45H(mm) |
| Weight | 300g |
