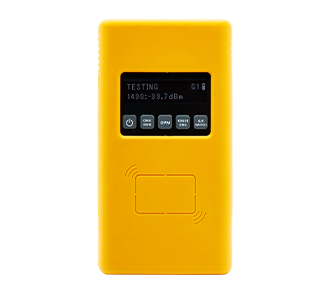

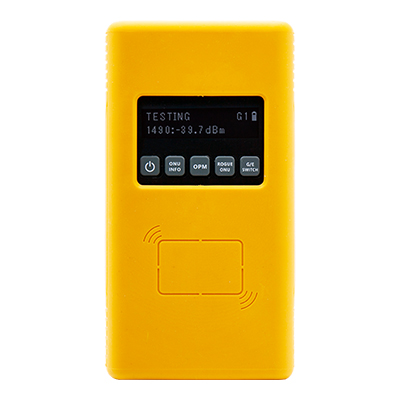

FOH-100 Series G/EPON Tester
GRANDWAY
FOH-100 Series G/EPON Tester is an ideal tool for field technicians to deal with G/EPON network correct installation, activation and maintenance. It can be series connected anywhere in your PON network and perform measurement without configuration. OLT infomation (PON ID*,Tx power), ONU infomation(ONU SN, Password, PPPOE) can be directly extracted. In addition, FOH-100 PRO can accurately identify the status of ONU (online/unregistered/rogue ONU/offline/no ONU /fiber break).
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
OLT and ONU identification (PON ID,Class level and ONU SN/Password/PPPOE account/LOID/MAC extraction)
Automatic power level 1490nm/1310nm measurement and certification
In-service fiber qualification according to ODN total loss
ONU status identification
Fast identification and location of rogue ONU in PON network
High precision OTDR for the measurement of the last mile of optical fiber(FOH-100 PRO)
| ltems | Specifications |
|---|---|
| Model | FOH-100 and FOH-100 PRO |
| Applicable PON network | GPON+EPON |
| Test Mode | Series connect: Two ports pass through mode |
| Insertion loss | No insertion loss, at least 3dB power amplification |
| Wireless | Bluetooth connection with Android phone app |
| OLT PON Data Parsing | PON ID, OLT Tx power and class level |
| ONU PON Data Parsing | Online ONU ID/SN, Password, PPPOE account, LOID, Mac address |
| ONU Status Identification | Online, ONU unregistered, Rogue ONU, Offline, No ONU, Fiber break |
| OTDR(only FOH-100PRO) | Working wavelength:1550nm; Dynamic range: >10dB |
| Rogue ONU detection | Support fast identification and location of rogue ONU |
| PON Power Meter | 1310nm: -30~+5dBm; 1490nm: -30~+5dBm |

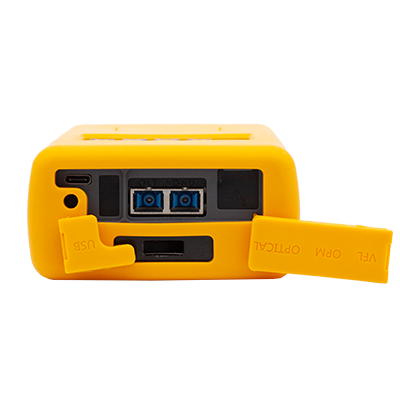

| Optical Interface | SC/UPC*2 or SC/APC*2 |
| Charging Port | USB Type-C charging port |
| Power Supply | 7000mAh lithium battery; Input: 5V/2A |
| Dimension | 175×94×46.5mm |
| Weight | 700g |
