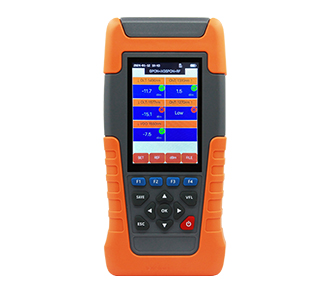

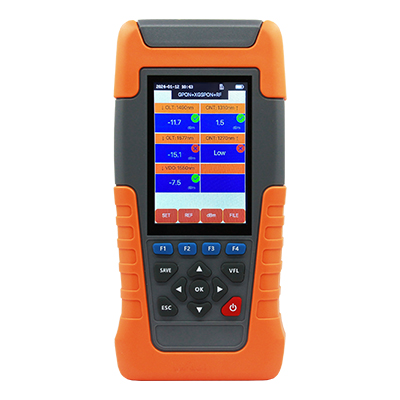

FHP3P05PRO 10GPON Power Meter
GRANDWAY
FHP3P05 PRO 10G PON power meter is suitable for the G/EPON, XG(S)PON/10GEPON and overlay RF video signal power testing. It can simultaneously measure the voice, data and video signals on 1490nm/1550nm/1577nm (downlink) and 1270nm/1310nm (burst mode uplink) optical fiber. The 3.5inch touch screen displays the signal power of each of the 5 wavelengths. It is an ideal choice for PON network engineering, construction and maintenance to detect and analyze whether the signal power is meet the standard by threshold data.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
3.5 inch color touch screen LCD
Applicable to GPON&XG(S)-PON, EPON&10G-EPON and RF CATV co-existence PON network
5 wavelength power value simultaneous measurement and display (1490nm/1550nm/1577nm/1310nm/1270nm
Built in 10mw VFL function
Long glowing rogue ONU alarm and detection
User defined Pass/Fail threshold
Support USB Type-C charging and test data upload
Support Powerful PC software to generate the test report
| ltems | Specifications |
|---|---|
| Wavelength | 1270nm 1310nm 1490nm 1550nm 1577nm |
| Test Range(dBm) | -10~+13 -30~+13 -50~+13 -40~+26 -50~+17 |
| Spectral Passband(nm) | 1270±10 1310±20 1490±10 1550±10 1577±6 |
| Insertion loss | ≤1.5dB |
| Uncertainty | ≤0.5dB |
| Display Resolution | 0.01dB |
| Display Unit | dBm/dB/mw |
| Threshold Setting | User defined |
| VFL | 10mw; CW/1Hz/2Hz working mode |
| Display | 3.5inch touch screen LCD |
| Optical Port | SC/APC or SC/UPC |
| Communication Port | USB Type-C interface |
| Power Supply | 5000mAh lithium battery |
| Dimension | 193Lx94Wx47H(mm) |
| Weight | 600g |
