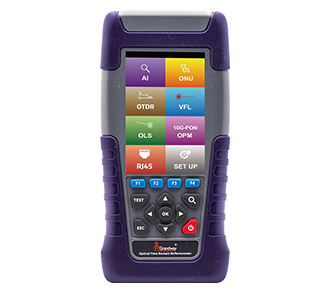

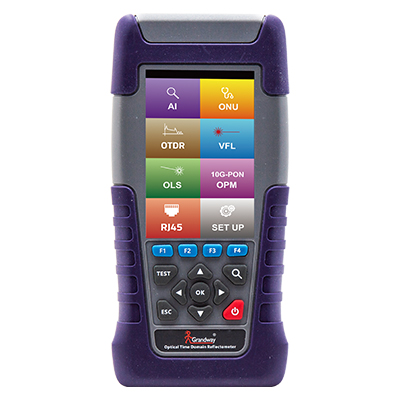

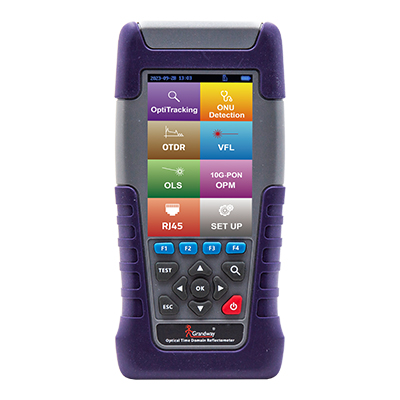

FHO1500 PLUS Optical Explorer
GRANDWAY
FHO1500 PLUS is a new generation instrument specially designed for FTTH test. According to different installation and maintenance applications, it has a variety of test modes to meet test needs. The innovative intelligent diagnosis module (AI) has the function of advanced optical fiber event map, weak light lines troubleshooting and release the unknown occupied splitter port.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
FTTX last mile fiber troubleshooting
First connector loss and ONU/Splitter connectivity state is measurable
ONU status identification
Accurate optical fiber testing capability over 60km
Built-in 20dB OTDR,10mw VFL, stable laser source, 10G PON OPM and RJ45 cable test
Support bluetooth function and mobile phone app
Standard dynamic range is 20dB, and 30dB can be customized

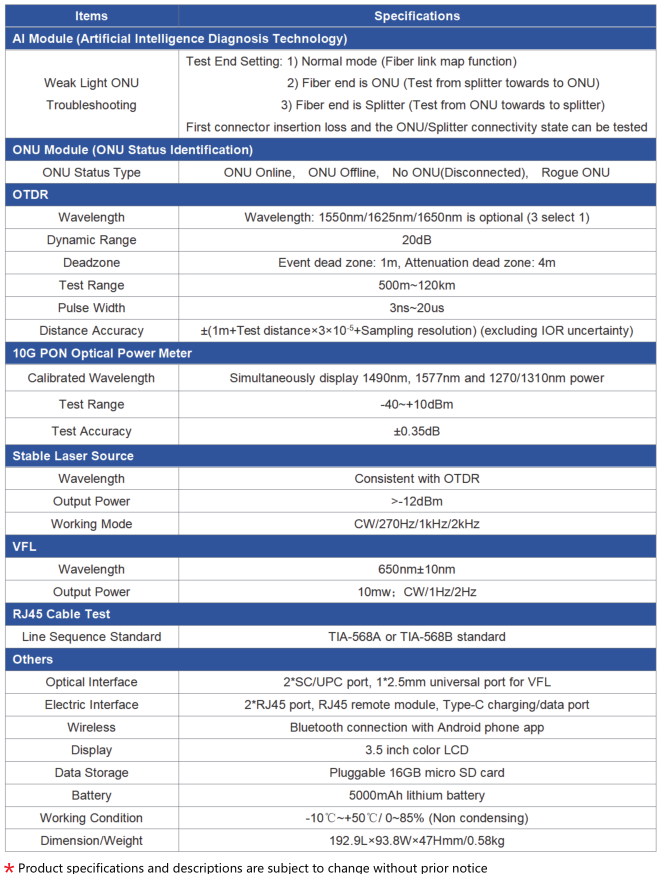

| ltems | Specifications |
|---|---|
| OptiTracking Function | |
| Test Mode | Normal mode: Fiber link map |
| Splitter→ONU(Test from last splitter to ONU) | |
| ONU→Splitter(Test from ONU to last splitter) | |
| First connector loss | Measureable |
| ONU/Splitter Connectivity | Measureable |
| ONU Status Detection | |
| ONU Status Type | ONU Online, ONU Offline, No ONU, Rogue ONU |
| OTDR Module | |
| Wavelength | Single 1550nm or 1625nm or 1650nm |
| Dynamic Range | 20dB |
| Deadzone | Event deadzone: 1m; Attenuation deadzone:4m |
| Test Range | 500m~120km |
| Pulse Width | 3ns~20us |
| Distance Accuracy | ±(1m+Test distance×3×10-5+Sampling resolution) (excluding IOR uncertainty) |
| 10G PON Optical Power Meter | |
| Test Wavelength | Downlink 1490nm and 1577nm selective power measurement |
| Uplink 1310nm/1270nm power measurement | |
| Test Range | -40~+10dBm |
| Test Accuracy | ±0.35dB |
| Stable Laser Source | |
| Wavelength | Consistent with OTDR |
| Output Power | >-12dBm |
| Working Mode | CW/270Hz/1kHz/2kHz |
| VFL | |
| Wavelength | 650nm±10nm |
| Output Power | 10mw |
| Working Mode | CW/1Hz/2Hz |
| RJ45 Cable Test | |
| Line Sequence Standard | TIA-568A or TIA-568B standard |
| Others | |
| Optical Interface | 2*SC port, 1*2.5mm universal port for VFL |
| Electric Interface | 2*RJ45 port, RJ45 remote module, Type-C charging/data port |
| Wireless | Bluetooth connection with Android phone app |
| Display | 3.5inch color LCD |
| Data Storage | Pluggable 16GB micro SD card |
| Battery | 5000mAh lithium battery |
| Dimension | 192.9L×93.8W×47Hmm |
| Weight | 580g |
