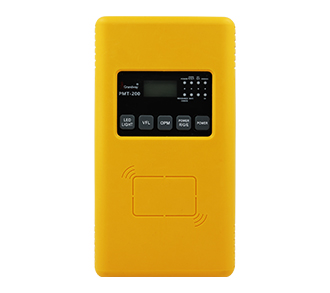

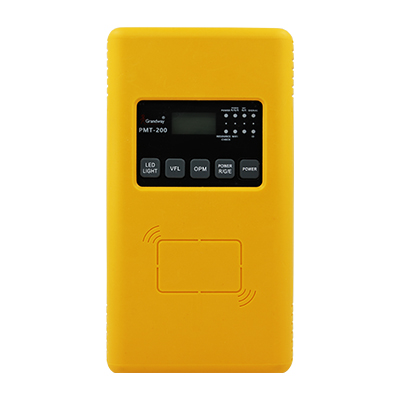

PMT-200 PON Installation Tester
GRANDWAY
PMT-200 support GPON ONT emulation allows field technicians to troubleshoot and validate GPON network installations (from PON ID analysis, optical power readings and ODN total loss).
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
GPON ONU emulation to extract PON ID, OLT Tx power, ONU Rx power, ODN loss, ONU activation status
Easy operation on mobile phone software via WiFi connection
Support OPM and VFL function
7000mAh lithium battery support long working hours

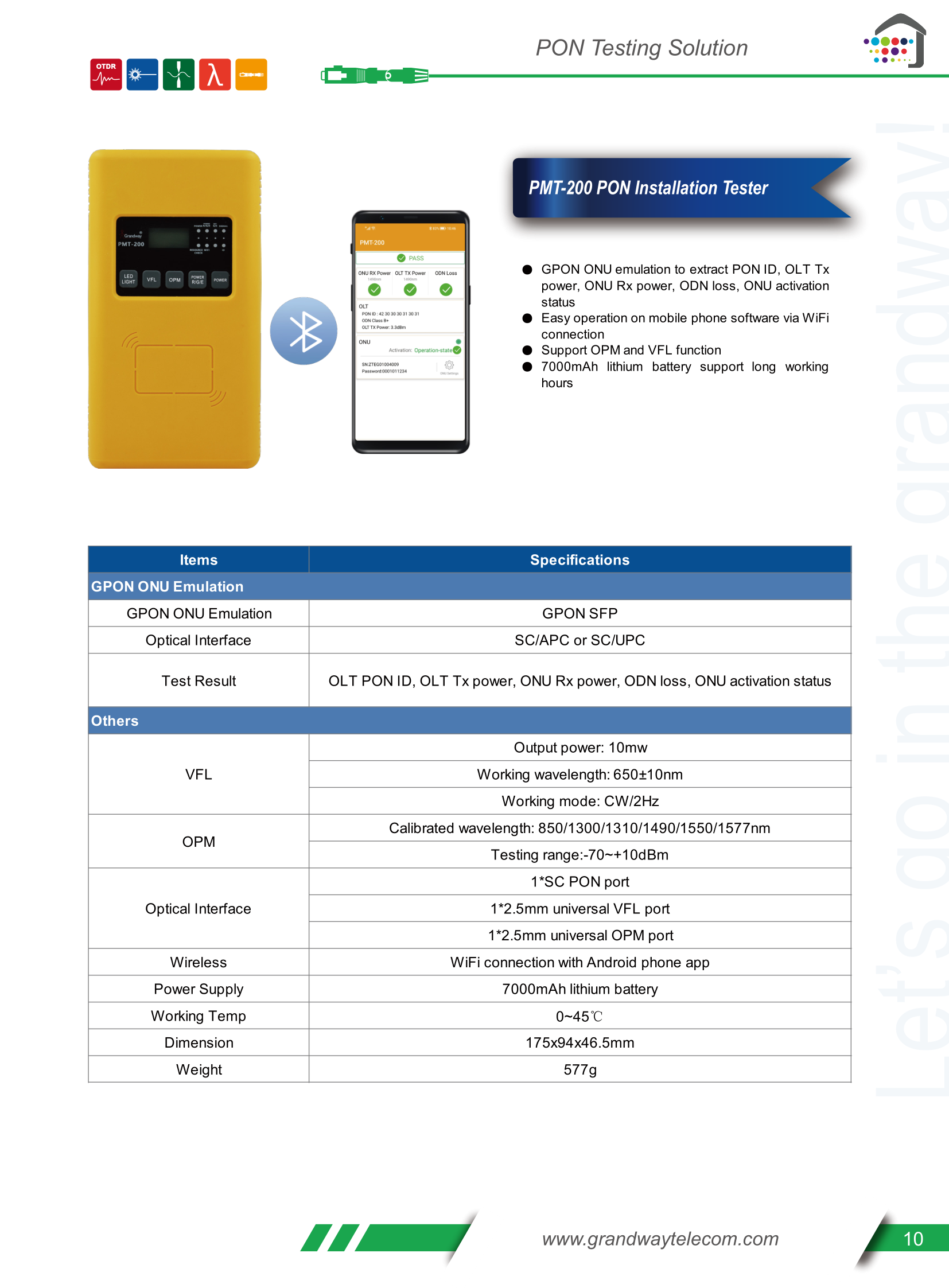

| ltems | Specifications |
|---|---|
| GPON ONU Emulation | |
| GPON ONU Emulation | GPON SFP |
| Optical Interface | Single SC/APC or SC/UPC |
| Test Result | OLT PON ID, OLT Tx power, ONU Rx power, ODN loss, ONU activation status |
| Others | |
| VFL | Output power: 10mw |
| Working wavelength: 650±10nm | |
| Working mode: CW/2Hz | |
| OPM | Calibrated wavelength: 850/1300/1310/1490/1550/1577nm |
| Testing range:-70~+10dBm | |
| Optical Interface | 1*SC PON port |
| 1*2.5mm universal VFL port | |
| 1*2.5mm universal OPM port | |
| Wireless | WiFi connection with Android phone app |
| Power Supply | 7000mAh lithium battery |
| Dimension | 175x94x46.5mm |
| Weight | 577g |
