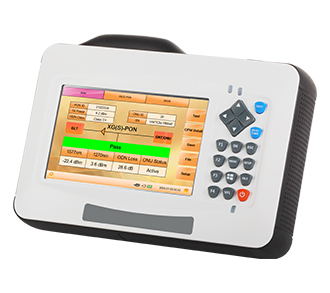

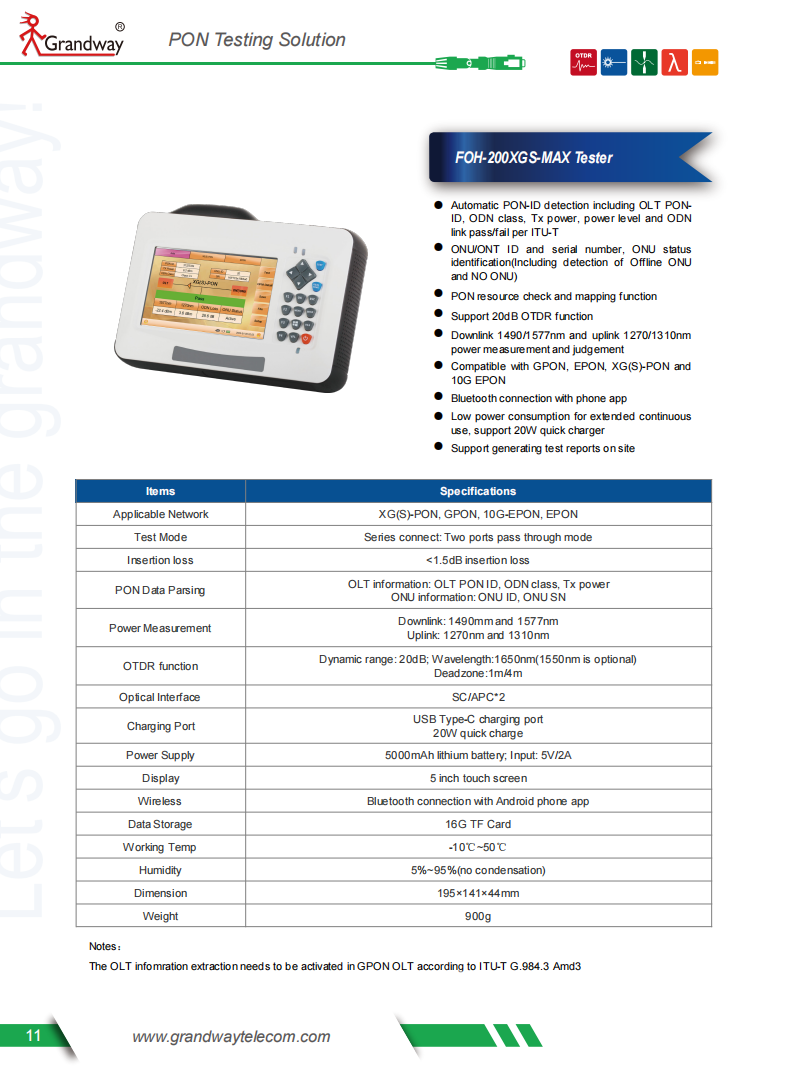

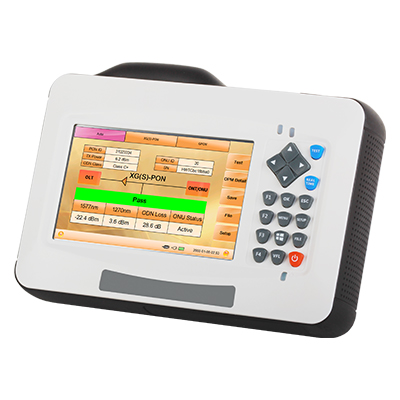

FOH-200XGS-MAX Tester
GRANDWAY
With the upgrade of G/EPON networks to XG(S)-PON and 10G EPON, we have launched the new FOH-200XGS-MAX to apply for the installation and maintenance testing of the upgraded Combo PON network. By connecting FOH-200XGS-MAX in series to the PON network, we can quickly and accurately extract OLT and ONU information, suitable to test G/EPON and XG(S)-PON, 10G EPON.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Automatic PON-ID detection including OLT PON-ID, ODN class, Tx power, power level and ODN link pass/fail per ITU-T
ONU/ONT ID and serial number, ONU status identification(Including detection of Offline ONU and NO ONU)
PON resource check and mapping function
Downlink 1490nm/1577nm and uplink 1270nm/1310nm optical power measurement and judgement
Test mode: two optical ports pass through mode, low insertion loss<1.5dB (typical)
Compatible with GPON, EPON, XG(S)-PON, 10G-EPON network

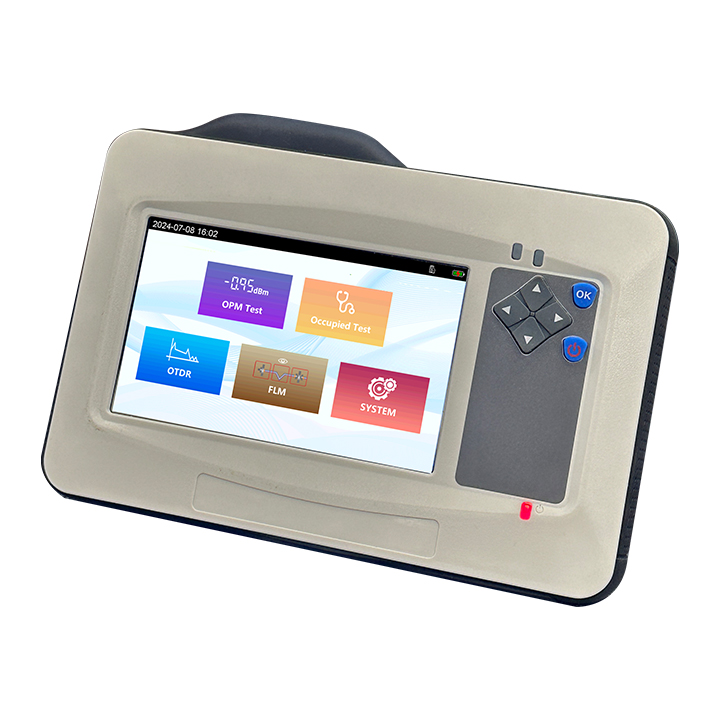

Support 20dB OTDR and FLM function (optional)
Bluetooth connection with phone app
Low power consumption for extended continuous use
| ltems | Specifications |
|---|---|
| Applicable Network | XG(S)-PON, GPON, 10G-EPON, EPON (Auto recognition) |
| Test Mode | Series connect: Two ports pass through mode |
| Insertion loss | <1.5dB (typical) |
| OLT PON Data Parsing | OLT PON-lD, ODN Class, Tx power, ODN loss |
| ONU Data Parsing | ONU ID, ONU SN |
| Downlink Power Measurement | 1490mm and 1577nm selective power measurement |
| Uplink Power Measurement | 1310nm or 1270nm power measurement |
| OTDR (Optional) | Dynamic range:20dB; Wavelength:1650nm or 1625nm or 1550nm; Deadzone: 1m/4m |
| Optical Interface | SC/APC*2 |
| Charging Port | USB Type-C charging port; 20W quick charge |
| Power supply | 5000mAh lithium battery |
| Data Storage | 16G TF Card |
| Display | 5 inch touch screen |
| Wireless | Bluetooth connection with Android phone app |
| Dimension | 195x141x44mm |
| Weight | 900g |
