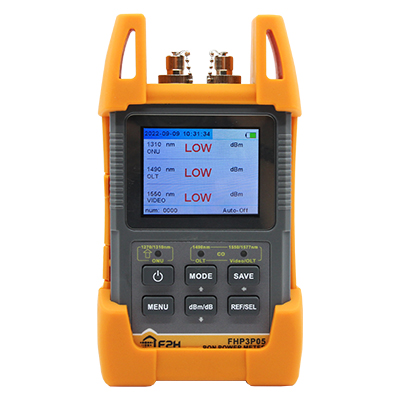

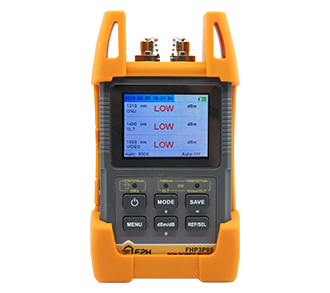

FHP3P05 10GPON Power Meter
GRANDWAY
FHP3P05 is a portable, high quality 10G PON optical power meter. It is specifically designed to meet the rapid growth of FTTx market with PON technologies. It is capable to measure all five signal(1270nm, 1310nm, 1490nm, 1550nm and 1577nm).
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Support measuring upstream 1310/1270nm and downstream 1490/1577/1550nm optical power level
Applicable to GPON&XG(S)-PON, EPON&10G-EPON and RF CATV co-existence PON network
10 groups User defined Pass, Warning, Fail mode
Support USB Type-C charging and test data upload
Rubber protection for the whole machine to prevent falling
| ltems | Specifications |
|---|---|
| Wavelength | 1270/1310nm 1490nm 1550/1577nm |
| Test Range(dBm) | -40~+10dBm(CW) -50~+13dBm -50~+23dBm -30~+10dBm(Burst) |
| Spectral Passband(nm) | 1240~1360nm 1480~1500nm 1539~1610nm |
| Insertion loss | ≤1.5dB |
| Uncertainty | ≤0.5dB |
| Display Resolution | 0.01dB |
| Display Unit | dBm/dB |
| Threshold Setting | 10 groups |
| Data Storage | 1000 groups |
| Display | 2.8inch TFT LCD |
| Number of Ports | 2(left ONU port, right OLT&Video port) |
| Optical Port | FC and SC (UPC or APC) |
| Communication Port | USB Type-C interface |
| Power Supply | 4*2500mAh Ni-MH AA battery; 5V/1A AC/DC adapter |
| Dimension | 190Lx105Wx55H(mm) |
| Weight | 700g |
