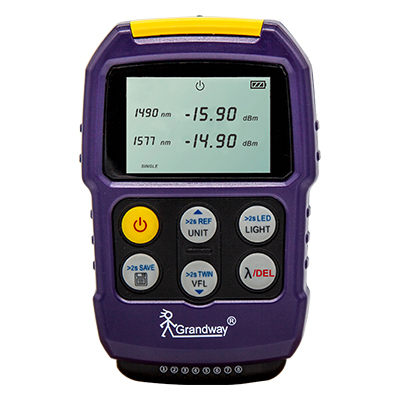

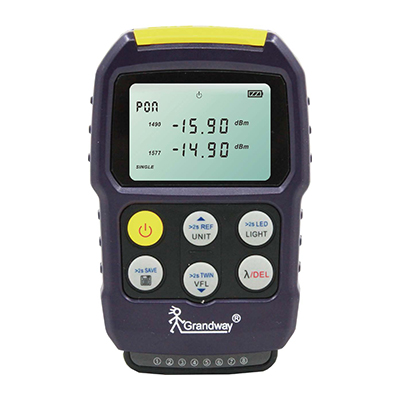

MT577 Multifunctional 10G Power Meter
MT577 10G OPM is the latest 10GPON power meter developed by Grandway. It combined with ergonomics design. It can accurately measure the optical power values of 1270nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm and 1650nm. MT577 also has flashlight, VFL and RJ45 cable testing functions, which are applicable for both basic optical or RJ45 cable test.
2.5mm
Optical port
1490/1577nm
10G PON
0.01dB
Resolution
±0.5dB
Accuracy
999 groups
Data storage
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Stable and reliable, sturdy and durable
Multifunction in one(optical power meter, 10G PON Selective OPM, VFL, RJ45 network cable test, flashlight)
Universal 2.5mm optical port for FC/SC/ST
Multi-unit display dBm/dB/mw
Support user calibration function
Typc-C USB power supply
999 groups test data storage
Auto wavelength recognition when working with FHS2 series laser source
| ltems | Specifications |
|---|---|
| Optical Power Meter | |
Detector type | InGaAs |
| Calibrated Wavelength | 1270/1300/1310/1490/1550/1577/1625/1650nm |
| 10G PON OPM | Support 1490nm/1577nm selective power measurement in 10G PON combo network |
| Test Range | -70~+10dBm |
Uncertainty | ±0.5dB |
| Display Resolution | 0.01dBm |
| Frequency Identification | 270Hz/330Hz/1kHz/2kHz |
| Optical Port | 2.5mm universal FC/SC/ST |
| Self Calibration | Support |
| Visual Fault Locator | |
| Working Wavelength | 650nm±30nm |
| Output Power | 2mw or 10mw |
| Output Mode | CW/1Hz/2Hz |
| Optical Port | 2.5mm universal FC/SC/ST |
| RJ45 Cable Sequence | |
| Test Distance | ≤300m |
| Others | |
| Battery | 450mAh Lithium battery |
| Data Storage | 999 groups test data |
| TWIN Function | Auto wavelength recognition when working with FHS2 series laser source |
| Charging Port | USB Type-C |
| Auto Power-off | 10 minutes |
| Dimension | 104L×67W×28Hmm |
| Weight | 140g |
