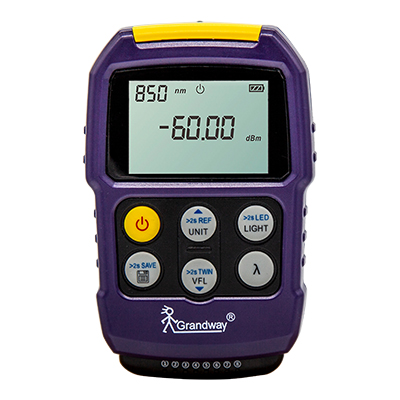

MT500 Multifunctional Power Meter

Functions

MT500 OPM is the latest power meter developed by Grandway. It combined with ergonomics design. It can accurately measure the optical power values of 850nm, 1300nm, 1310nm, 1490nm, 1550nm, 1625nm and 1650nm. MT500 also has flashlight, VFL and RJ45 cable testing functions, which are applicable for both basic optical or RJ45 cable test.

2.5mm

Optical port

800~1700nm

Working wavelength

0.01dB

Resolution

±0.35dB

Accuracy

50 groups

Data storage

DATASHEET

SOFTWARE

MANUAL

CERTIFICATE

Features

  • Multifunctional integration (OPM, VFL, RJ45 cable test, flashlight)

  • USB Type-C interface charging

  • Support self calibration function

  • 50 groups test result storage

  • Lithium battery is optional

  • Twin function, auto wavelenght recognition when work with FHS2 series laser source

Parameter

ltems Specifications
Optical Power Meter
Detector Type InGaAs
Working Wavelength 800nm~1700nm
Calibrated Wavelength 850/1300/1310/1490/1550/1625 /1650nm
Test Range MT500-A type: -70~+6dBm
MT500-B type: -50~+26dBm
Display Resolution 0.01dBm
Frequency Identification 270Hz/330Hz/1kHz/2kHz
Optical Port 2.5mm universal FC/SC/ST
Self Calibration Support
Visual Fault Locator
Working Wavelength 650nm±30nm
Output Power 2mw or 10mw
Output Mode CW/1Hz/2Hz
Others
Battery(3pcs) 1) AAA dry battery  2)AAA rechargeable battery  3)Lithium battery
Data Storage 50 groups test data
TWIN Function Auto wavelength recognition when working with FHS2 series laser source
Charging Port USB Type-C
Auto Power-off 10 minutes
Dimension 104L×67W×28Hmm
Weight 140g
