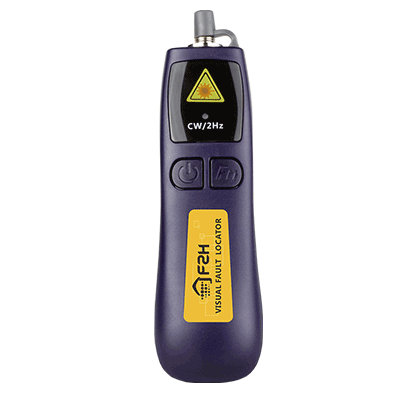

VLS-8 Series Mini VFL
VLS-8 Series Visual Laser Source totally complies with the human engineering. It's small in size, easy to operate, portable and integrated with a launching indicator. Higher output laser power, the max test range up to 15km.
LD
Laser type
650±10nm
Wavelength
2.5mm
Optical port
15km
Max test range
SM/MM
Suitable fiber
CW/2Hz
Output mode
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
2.5mm universal adapter(FC/SC/ST)
Max 15km test range
CW/2Hz output mode
Suitable for SM/MM fiber
Small and portable
| ltems | Specifications |
|---|---|
| Output Power | VLS-8-1:≥1mw |
| VLS-8-10:≥10mw | |
| VLS-8-15:≥15mw | |
| VLS-8-30:≥30mw | |
| Test Range | VLS-8-1: about 5km |
| VLS-8-10: about 12km | |
| VLS-8-15: about 14km | |
| VLS-8-30: about 15km | |
| Connector | Universal 2.5mm |
| Working Wavelength | 650nm±10nm |
| Working Mode | CW/2Hz flashing mode |
| Power Supply | 2*AAA dry battery |
| Working Temperature | -10~+50℃ |
| Storage Temperature | -20~+70℃ |
| Dimension | 120x33x30mm |
| Weight | 68g |
