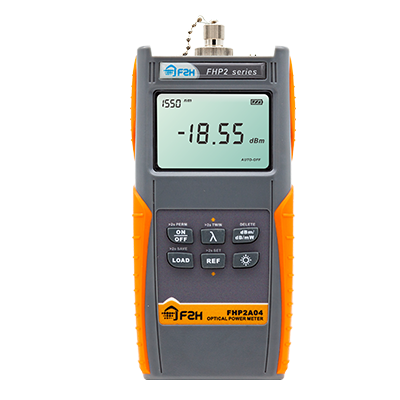

FHP2 Series Power Meter
FHP2 Series Optical Power Meter is the advanced version of OPM series. It is more functional and intelligent. Under the situation of laboratory, LANs, WANs and CATV as well as long distance optical network. FHP2 series optical power meter together with FHS2 series laser source, can be used to identify optical fiber, measure optical attenuation, verify continuity and evaluate fiber link transmission quality.
FC/PC
Optical port
800~1700nm
Working wavelength
0.01dB
Resolution
±0.2dB
Accuracy
270/1k/2kHz
Frequency detection
2*Ni-MH AA
Battery
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Integrated with high performance optical sensor
Auto wavelength recognition with FHS2 series laser source
High accuracy ±0.2dB and high stability
999 group data storage function
With computer software to export data and make reports
VFL and Bluetooth is optional
| ltems | Specifications |
|---|---|
| Sensor Type | InGaAs |
| Working Wavelength | 800~1700nm |
| Calibrated Wavelength | 850nm/1300nm/1310nm/1490nm/1550nm/1577nm/1625nm |
| Test Range | FHP2A04：-70~+10dBm |
| FHP2B04：-50~+26dBm | |
| Accuracy | ±0.2dB |
| Frequency Detection | 270/330/1k/2kHz |
| Recognizable Wavelength | 850nm/1300nm/1310nm/1490nm/1550nm/1625nm(with FHS2 series laser source) |
| Frequency Identification Range | FHP2A04: -40~+10dBm@1550nm |
| FHP2B04: -20~+26dBm@1550nm | |
| Wavelength Identification Range | FHP2A04: -40~+10dBm@1550nm |
| FHP2B04: -20~+26dBm@1550nm | |
| Display Unit | dBm/dB/mw |
| VFL(Optional) | Working wavelength: 650nm±10nm；10mw; CW/2Hz working mode |
| Wireless | Bluetooth is optional |
| Memory Capacity | 999 |
| Optical Port | OPM/VFL: FC&SC&2.5mm universal port for SC/FC/ST |
| USB Port | Type-C USB Port |
| Power Supply | 2*2500mAh Ni-MH AA battery; 5V/1A AC/DC adapter |
| Dimension | 160Lx76Wx45H(mm) |
| Weight | 265g |
