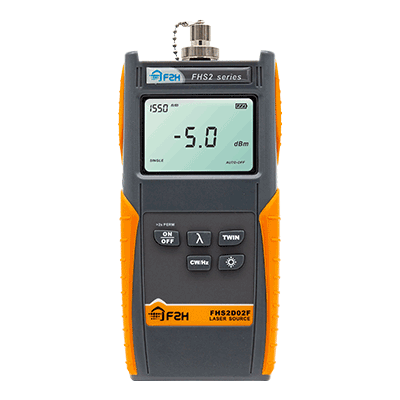

FHS2 Series Laser Source
The FHS2 Series laser source offers excellent stability and portability for accurate fiber optic testing. Dual-wavelength, triple wavelength and quad wavelength laser sources are available. If user tests a fiber with both FHS2 series laser source and FHP2 series power meter, the TWIN function can be booted. With this function, the power meter can automatically detect the wavelength FHS2 series laser source launched.
LD
Laser type
FC/PC
Optical port
-5dBm
Output power
270/1k/2kHz
Output frequency
2*Ni-MH AA
Battery
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Both single mode and multi mode laser are available
Auto wavelength recognition with FHP2 series power meter
Stable output laser, rugged and portable
Support CW, 270Hz, 1kHz and 2kHz mode output
Typical -5dBm output power
Auto power off and backlight function
| ltems | Specifications |
|---|---|
| Working Wavelength | FHS2D02: 1310nm/1550nm |
| FHS2D02F: 1310nm/1550nm | |
| FHS2T01F: 1310nm/1490nm/1550nm | |
| FHS2Q01F: 850nm/1300nm/1310nm/1550nm | |
| FHS2Q02F: 1310nm/1550nm/1490nm/1625nm | |
| Output Power | -5dBm(typical) |
| Adjustable Range | ±3dB (only for FHS2D02) |
| Output Stability | Short Term(15 minutes)：＜0.05dB |
| Long Term(>8hours)：＜0.1dB | |
| Output Power | -5dBm(typical) |
| Spectral Width | 5nm |
| Output Frequency | 270Hz, 1kHz, 2kHz |
| TWIN Function | Auto wavelength recognition code with FHP2 power meter |
| Auto Power-off | 10 minutes |
| Backlight | Support |
| Connector | FC/UPC and SC/UPC (APC is customized) |
| Port Number | FHS2D02/FHS2D02F/FHS2T01F: 1 port |
| FHS2Q01F/FHS2Q02F: 2 port | |
| Power Supply | 2*Ni-MH AA battery |
| Working Temperature | -10℃~50℃ |
| Storage Temperature | -20℃~70℃ |
| Dimension | 160x76x45mm |
| Weight | 260g |
