FHO5500 Series OTDR
GRANDWAY
FHO5500 series Optical Time Domain Reflectometer (OTDR) is an intelligent meter for the detection of fiber communications systems. The new generation FHO5500 series has higher test performance and product stability. Larger dynamics and optimized deadzone can provide more accurate fiber testing. Whether you want to detect link layer in the construction and installation of optical network or proceed efficient maintenance and trouble shooting, FHO5500 can be your best assistant.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
LINUX operating system provides a smoother operating experience

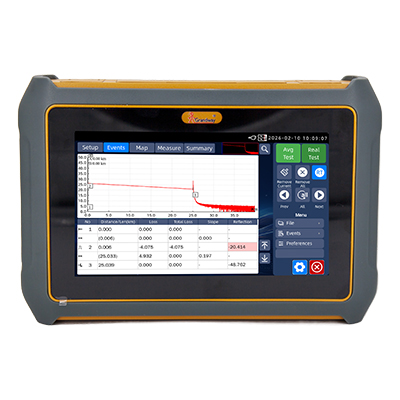

8 inch color capacitive touch screen
Dynamic range from 36dB to 50dB, small deadzone 0.5m/2.5m
Excellent FLM(Fiber Link Map)performance make fiber testing simpler and more efficient
PON online test module (1625nm/1650nm) is optional
MMF test module (850/1300nm) is optional
Optimized PON test capability to pass through 1x128 splitter with 30m PON deadzone
Newly designed UI interface for a better user experience
Multi function Integrated design, smart and rugged
10G PON Optical power meter is optional
Built-in OTDR trace and FLM testing PDF report generation
Wifi, Bluetooth and mobile APP is available
GPS positioning is optional
| Models | Wavelength | Dynamic Range |
|---|---|---|
| FHO5500-D36 | 1310nm/1550nm | 36/34dB |
| FHO5500-D43 | 43/41dB | |
| FHO5500-D46 | 46/44dB | |
| FHO5500-D50 | 50/48dB | |
| FHO5500-T36F | 1310/1550/1625nm | 36/34/34dB |
| FHO5500-T43F | 43/41/41dB | |
| FHO5500-T46F | 46/44/44dB | |
| FHO5500-T50F | 50/48/48dB | |
| FHO5500-TC36F | 1310/1550/1650nm | 36/34/34dB |
| FHO5500-TC43F | 43/41/41dB | |
| FHO5500-TC46F | 46/44/44dB | |
| FHO5500-TC50F | 50/48/48dB | |
| FHO5500-MD28 | MM: 850/1300nm | 26/28dB |
| SM: 1310/1550nm | 36/34dB | |
| FHO5500-MD29 | MM: 850/1300nm | 26/28dB |
| SM: 1310/1550nm | 43/41dB |
| ltems | Specifications |
|---|---|
| Pulse Width | 3ns/5ns/10ns/30ns/50ns/100ns/275ns/500ns/1us/2us/5us/10us/20us |
| Distance Range | 500m/2km/5km/10km/20km/33km/40km/80km/120km/160km/260km |
| Deadzone | 0.5m/2.5m |
| Sampling Resolution | Minimum 5cm |
| Sampling Points | Maximum 256,000 points |
| Linearity | ≤0.03dB/dB |
| Loss Threshold | 0.01dB |
| Loss Resolution | 0.001dB |
| Distance Resolution | 0.01m |
| IOR Setting | 1.00000~2.00000 |
| Distance Accuracy | ±(0.75m+Test distance×3×10-5+Sampling resolution) (excluding IOR uncertainty) |
| Visual Fault Locator | |
| Working wavelength | 650±10nm |
| Output power | 10mw; CW/1Hz/2Hz |
| Connector | Universal 2.5mm for FC/SC/ST |
| Optical Laser Source | |
| Working wavelength | Consistent with OTDR |
| Output power | ＞-8dBm； CW/270Hz/1kHz/2kHz |
| Connector | Share the OTDR port |
| Optical Power Meter | |
| Wavelength range | 800nm~1700nm |
| Calibrated wavelength | 850/1300/1310/1490/1550/1625/1650nm |
| Test range | -40~+26dBm |
| Accuracy | ±0.5dB |
| Resolution | 0.01dB |
| Connector | 2.5mm unviersal for FC/SC/ST |
| Others | |
| Operation System | Linux |
| Interface | 1×RJ45 port, 3×USB port (USB 2.0, Type A USB×2, Type C USB×1) |
| Optical Port | OTDR: FC/UPC or SC/UPC |
| OPM/VFL: 2.5mm universal port | |
| Display | 8-inch Capacitive touch screen |
| Wireless | Wifi, Bluetooth and phone app |
| 10G PON Selective OPM | Optional |
| GPS | Optional |
| Memory Capacity | 16G |
| Battery | 2pcs 5300mAh lithium batteries |
Working temperature | -10℃~+50℃ |
| Storage temperature | -20℃~+70℃ |
| Dimension | 260×176×55mm |
| Weight | 1.9kg (with battery) |
