FHO3300 Series OTDR
GRANDWAY

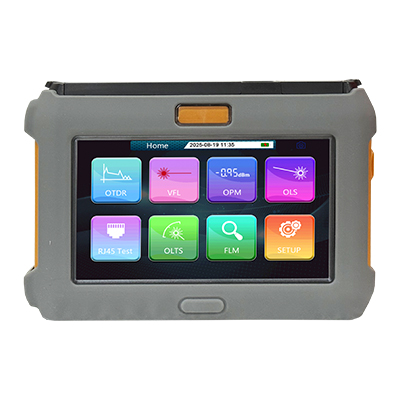

FHO3300 OTDR is a multi-functional optical tester, which integrates auto OTDR, expert OTDR, Event map, optical power meter, visual fault locator, stable laser source, optical loss test, RJ45 cable length/sequence test, RJ45 cable digital tracker, flashlight. It has 5 inches touch screen and keys. It is the right assistant for optical cable construction, installation and maintenance.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
6-inch color capacitive touch screen
Dual wavelength 1310nm/1550nm or triple wavelength is optional
Supports multiple OTDR measurement modes (automatic, manual, real-time testing, dual wavelength testing)
Equipped with rich testing function modules, including VFL, stable laser source, optical power meter, 10G PON selective optical power meter, optical loss test, fiber link map, RJ45 cable sequence/length/tracking and flashlight, etc
Bluetooth and android phone app function
| Models | Specifications |
|---|---|
| FHO3300-D26 | 1310nm/1550nm; 26/24dB |
| FHO3300-D32 | 1310nm/1550nm; 32/30dB |
| FHO3300-T26F | 1310nm/1550nm/1650nm; 26/24/24dB |
| FHO3300-T32F | 1310nm/1550nm/1650nm; 32/30/30dB |
| ltems | Specifications |
|---|---|
| Pulse Width | 3ns~20us |
| Distance Range | 500m~120km |
| Sampling Resolution | Minimum 5cm |
| Sampling Points | Maximum 128,000 points |
| Loss Threshold | 0.01dB |
| Loss Resolution | 0.001dB |
| Distance Resolution | 0.01m |
| IOR Setting | 1.0000~2.0000 |
| Distance Accuracy | ±(0.75m+Test distance×3×10-5+Sampling resolution) (excluding IOR uncertainty) |
| Visual Fault Locator | |
| Working wavelength | 650±10nm |
| Output power | 10mw; CW/2Hz |
| Connector | Universal 2.5mm for FC/SC/ST |
| Optical Laser Source | |
| Working wavelength | Consistent with OTDR |
| Output power | ＞-12dBm； CW/270Hz/1kHz/2kHz |
| Connector | Share the OTDR port |
| Optical Power Meter | |
| Wavelength range | 800nm~1700nm |
| Calibrated wavelength | 850/1300/1310/1490/1550/1577/1625/1650nm |
10G PON OPM (Optional) | Support 1490nm and 1577nm selective power measurement in 10G PON combo network |
| Test range | -40~+10dBm |
| Resolution | 0.01dB |
| Connector | 2.5mm unviersal for FC/SC/ST |
| Optical Loss Tester | |
Support laser source and optical power meter work at the same time | |
| RJ45 Testing | |
RJ45 sequence | TIA-568A or TIA-568B standard |
RJ45 length | <300m |
RJ45 tracking(optional) | <300m |
| Others | |
| Interface | Charging/Data Interface: USB 2.0 Type-C OTDR optical port: FC/UPC or SC/UPC (APC optional) VFL and OPM: 2.5mm universal port(FC/SC/ST) 2xRJ45 Ethernet port: RJ45 cable sequence/length/tracking |
| Display | 6-inch color capacitive touch screen |
| Wireless | Bluetooth, support android phone app connection |
| Memory Capacity | 4G (standard), 16GB (optional) |
| Battery | 3.7v/5000mAh lithium battery |
Temperature | Working temperature: -10℃~+50℃; Storage temperature: -20℃~+70 |
| Dimension | 195×141×46m |
| Weight | 742 (with battery) |
