FHO1000 Handheld OTDR
GRANDWAY
FHO1000 Handheld OTDR is the latest smart OTDR of Grandway. Although it is a handheld OTDR, it can measure the length of optical fiber over 100km. In short distance optical fiber testing, with the excellent 1m/4m deadzone performance, all kinds of continuous connectors, attenuation loss and other events can be clearly distinguished.
3.5inch LCD
Screen size
28/26dB
Dynamic range
4m
Attenuation dead zone
1m
Event dead zone
>100km
Test distance

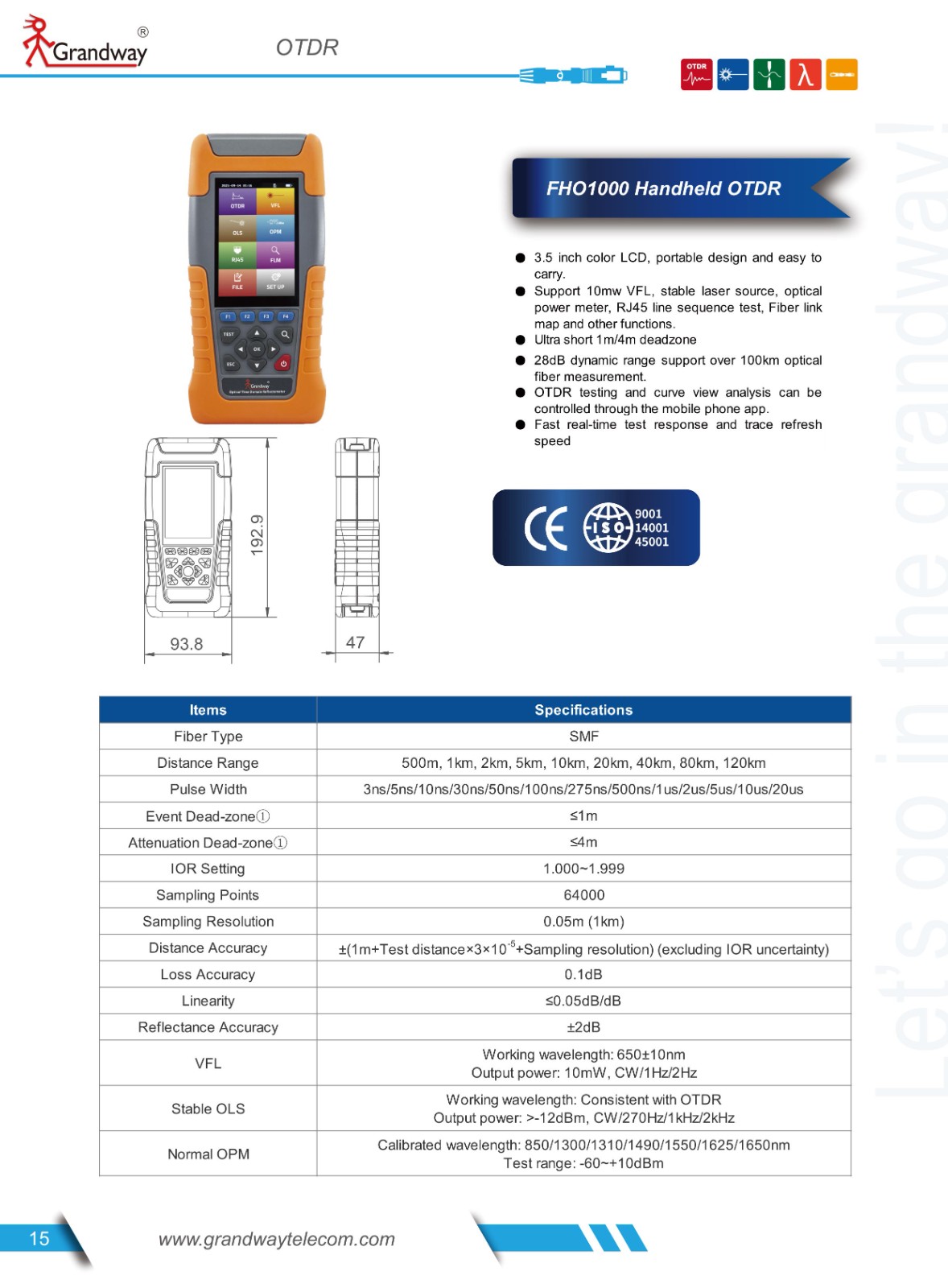

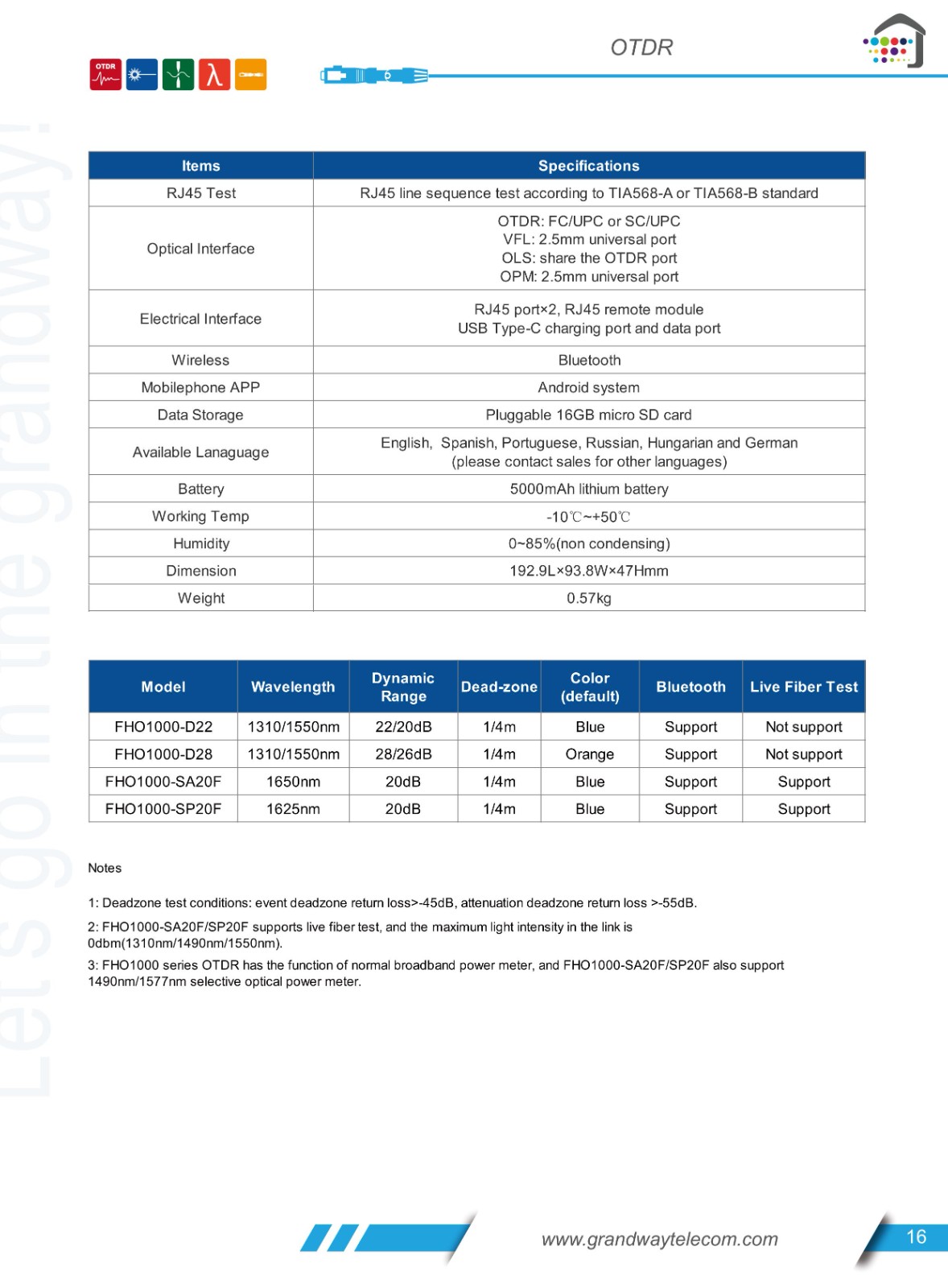

DATASHEET
SOFTWARE
MANUAL
CERTIFICATE

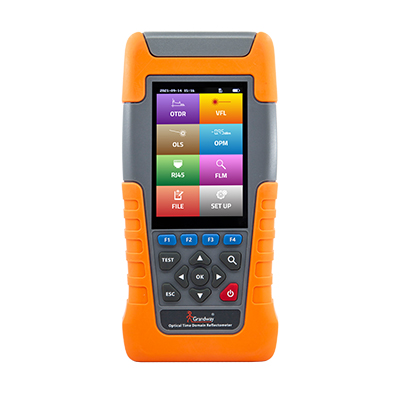

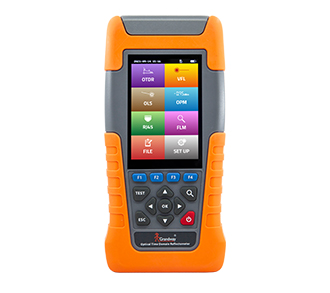

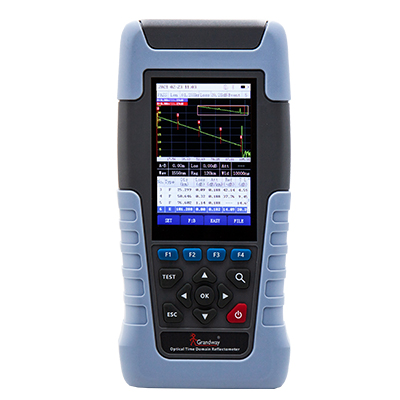

3.5 inch color LCD, portable design and easy to carry
Support 10mw VFL, stable laser source, optical power meter, RJ45 line sequence test and Fiber link map
High precision and short deadzone OTDR
Ultra short 1m/4m deadzone
28dB dynamic range support over 100km fiber measurement
Bluetooth connection and mobile phone application
PDF report generation is available on phone app
| ltems | Specifications |
|---|---|

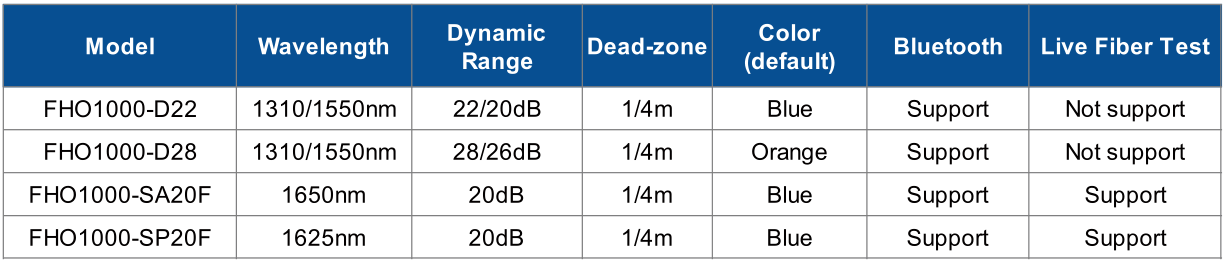

| Model | FHO1000-D22: 1310/1550nm; 22/20dB |
| FHO1000-D28: 1310/1550nm; 28/26dB | |
| FHO1000-SA20F: 1650nm; 20dB; Support live fiber test | |
| FHO1000-SP20F: 1625nm; 20dB; Support live fiber test | |
| Test Range | 500m~120km |
| Pulse Width | 3ns~20us |
| Deadzone | 1m/4m |
| Test Time | 5s~180s |
| Test Mode | Auto, Manual, Real-time |
| Sampling Point | 64000 |
| Distance Accuracy | ±(1m+Test distance×3×10-5 +Sampling resolution) (excluding IOR uncertainty) |
| Visual Fault Locator | |
| Working wavelength | 650±10nm |
| Output power | 10mw; CW/1Hz/2Hz |
| Optical Laser Source | |
| Working wavelength | Consistent with OTDR |
| Output power | ＞-12dBm； CW/270Hz/1kHz/2kHz |
| Broadband Power Meter | |
| Calibrated wavelength | 850/1300/1310/1490/1550/1625/1650nm |
| Test range | -60~+10dBm |
| RJ45 Test | |
| Test Standard | RJ45 line sequence test according to TIA568-A or TIA568-B standard |
| Others | |

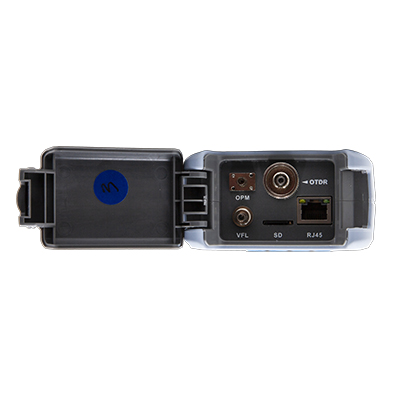

| Optical Interface | OTDR/OLS: FC/SC (APC is available); VFL/OPM: 2.5mm universal port |

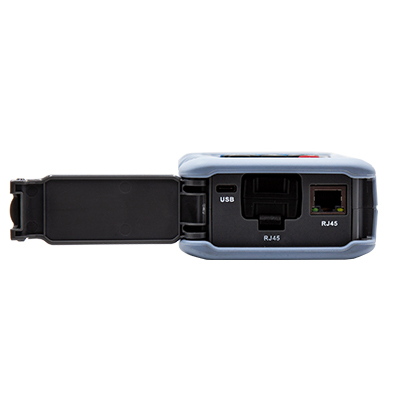

| Electrical Interface | RJ45 port×2, RJ45 remote module, USB Type-C charging port and data port |
| Wireless | Bluetooth |
| Display | 3.5 inch color screen |
| Mobilephone APP | Android system |
| Data Storage | Pluggable 16GB micro SD card |
| Battery | 5000mAh lithium battery |
| Color | Blue or Orange |
| Dimension | 192.9L×93.8W×47Hmm |
| Weight | 570g |
