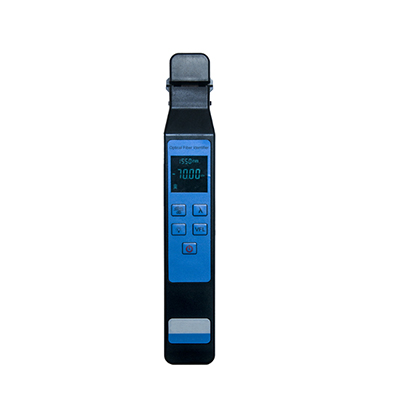

OFI-5 Fiber Identifier
GRANDWAY
OFI-5 Optical Fiber Identifier is an important tool for optical maintenance, which is used for nondestructive fiber identification project. Meanwhile it also has Visual Fault Locator module with fault location function and power meter function.

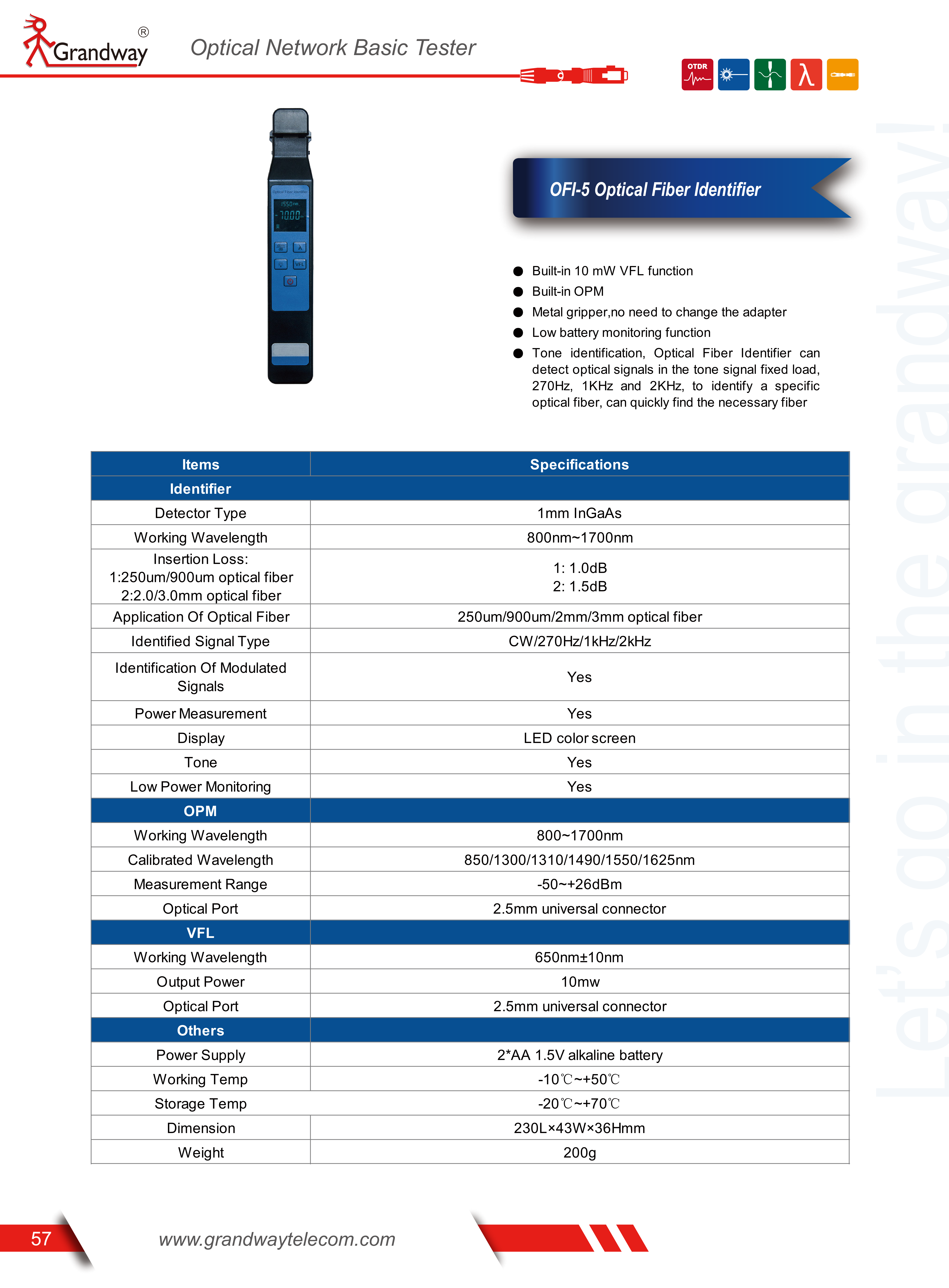

DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Built-in 10 mW VFL function
Built-in OPM
Metal gripper,no need to change the adapter
Low battery monitoring function
Tone identification, Optical Fiber Identifier can detect optical signals in the tone signal fixed load, 270Hz, 1KHz and 2KHz, to identify a specific optical fiber, can quickly find the necessary fiber
| ltems | Specifications |
|---|---|
| Fiber Identifier | |
| Detector Type | 1mm InGaAs |
| Working Wavelength | 800nm~1700nm |
| Insertion Loss | <1.5dB |
| Application Of Optical Fiber | 250um/900um/2mm/3mm optical fiber |
| Identification Of Modulated Signals | CW/270Hz/1kHz/2kHz |
| Online Power Measurement | Support |
| Online Power Direction | Support, left or right |
| Display | LED color screen |
| Optical Power Meter | |
| Working Wavelength | 800~1700nm |
| Calibrated Wavelength | 850/1300/1310/1490/1550/1625nm |
| Measurement Range | -50~+26dBm |
| Optical Port | 2.5mm universal connector |
| VFL | |
| Working Wavelength | 650nm±10nm |
| Output Power | 10mw |
| Optical Port | 2.5mm universal connector |
| Others | |
| Power Supply | 2*AA 1.5V alkaline battery |
| Working Temp | -10℃~+50℃ |
| Storage Temp | -20℃~+70℃ |
| Dimension | 230L×43W×36Hmm |
| Weight | 200g |
