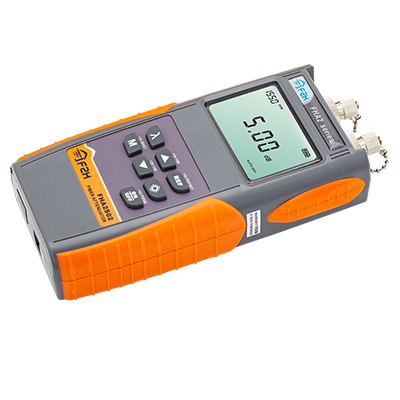

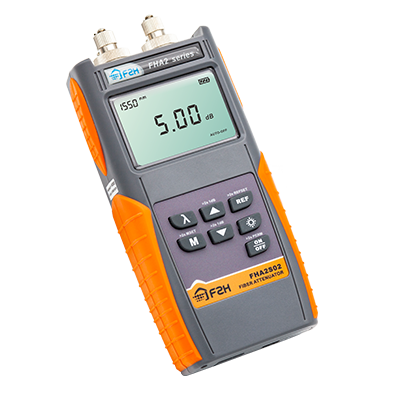

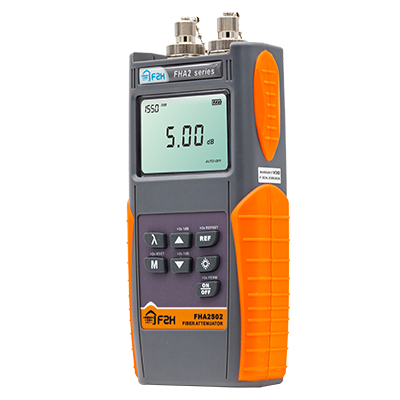

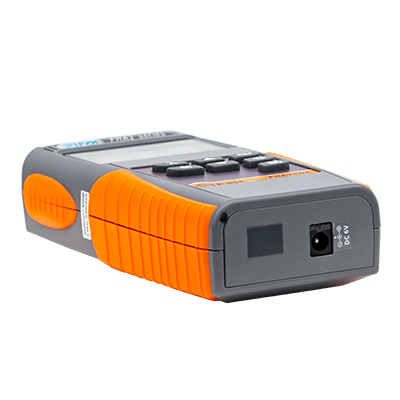

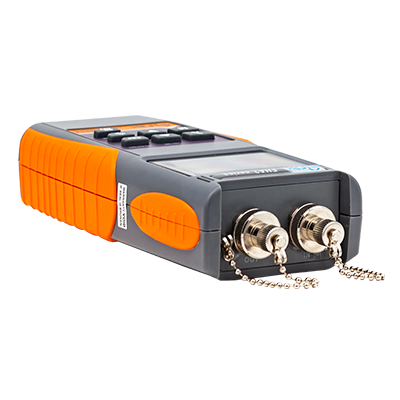

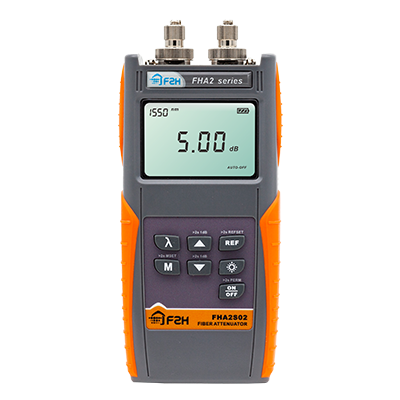

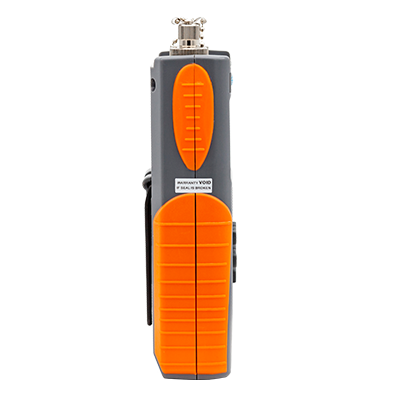

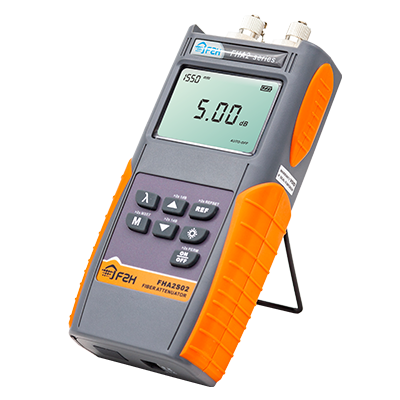

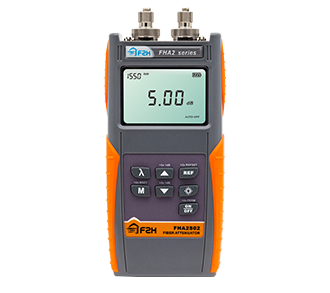

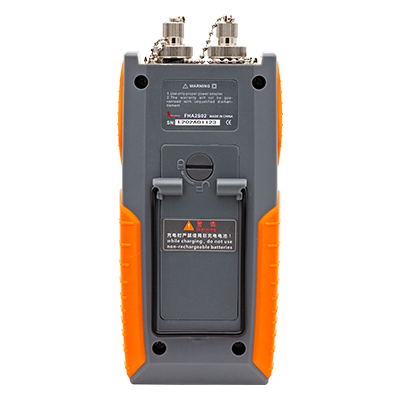

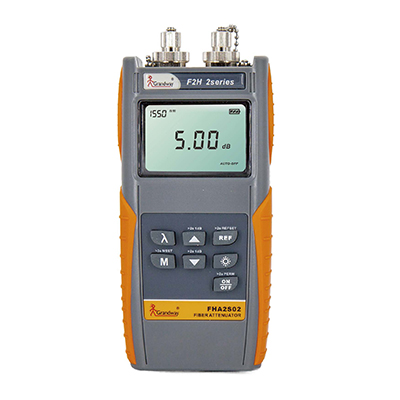

FHA2S02 Optical Attenuator
GRANDWAY
FHA2S02 digital variable optical attenuator is a compact, portable instrument. It provide low insertion loss but wide attenuation range from 3dB to 60dB.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Low insertion loss, wide attenuation range
0.05dB/1.0dB step attenuation adjust
8 sets of common attenuation value setting
With LCD backlight function and auto power off
Applicable wavelength: 1310nm and 1550nm
2* Ni-MH AA battery

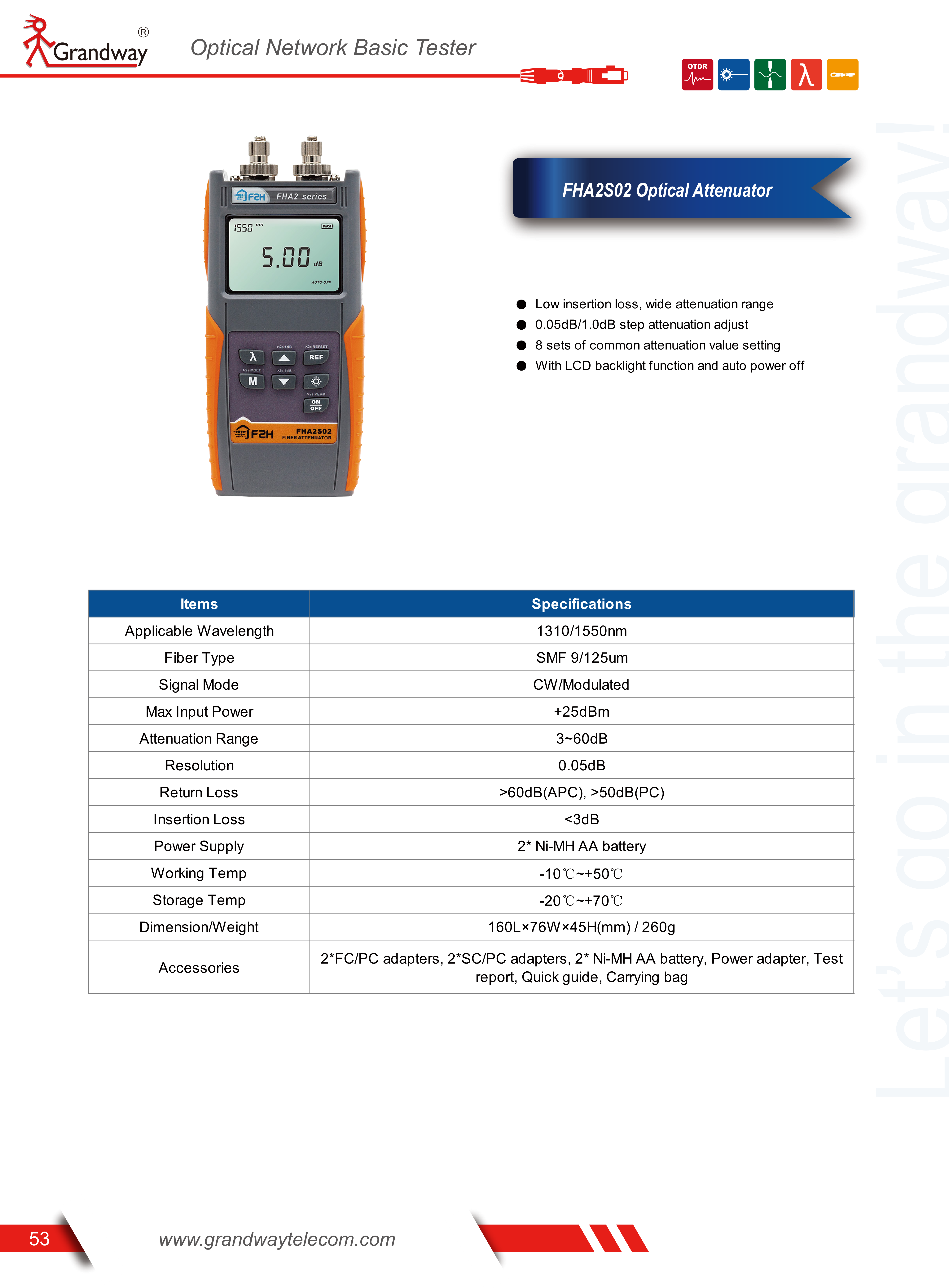

| ltems | Specifications |
|---|---|
| Applicable Wavelength | 1310/1550nm |
| Fiber Type | SMF 9/125um |
| Signal Mode | CW/Modulated |
| Max Input Power | +25dBm |
| Attenuation Range | 3~60dB |
| Resolution | 0.05dB |
| Return Loss | >60dB(APC), >50dB(PC) |
| Insertion Loss | <3dB |
| Power Supply | 2* Ni-MH AA battery |
| Working Temp | -10℃~+50℃ |
| Storage Temp | -20℃~+70℃ |
| Dimension | 160L×76W×45H(mm) |
| Weight | 260g |
