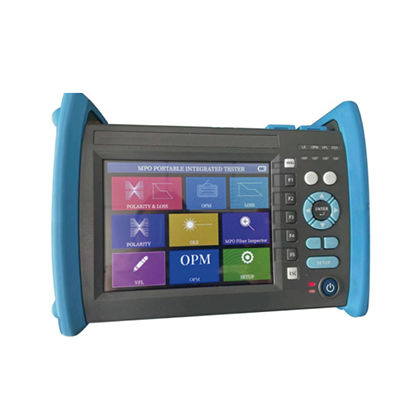

MPO Integrated Tester
GRANDWAY
Integrade MPO laser source and MPO power meter in one instrument. Support MPO cable polarity and loss testing.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Support single instrument polarity and loss testing
Integrade MPO laser source and MPO power meter in one instrument
12 cores or 24 cores MPO testing is optional
5.6-inch LCD touch screen
Support customizable pass or not in threshold
Support VFL function
| ltems | Specifications |
|---|---|
| MPO Laser Source | |
| Wavelength | 1550nm or (optional) |
| Output power | ≥-5dBm |
| Spectral width | ≤5nm |
| Frequency | CW/270/1K/2K |
| Power stability | ≤0.1dB |
| MPO Power Meter | |
| Detector type | InGaAs |
| Wavelength | 850nm, 1300nm, 1310nm, 1550nm |
| Measure range | +3~-50dBm |
| Linearity | ±0.1dB |
| Uncertainty | ±0.25dB |
| Port | MPO Male connector |
| Power unit | dBm,dB, mw |
| Resolution | 0.01dB |
| Polarity detection | A,B,C & user-defined |
| Record storage | Support |
| Normal Power Meter | |
| Wavelength range | 800~1700nm |
| Calibrated wavelength | 850/1300/1310/1490/1550/1625nm |
| Measuring range | +26~-50dBm |
| Uncertainty | ≤0.25dB |
| VFL | |
| Wavelength | 650nm |
| Outpur power | 10mw |
| Others | |
| Display size | 5.6inch color touch screen |
| Power supply | 7.4V/4000mAh lithium battery |
| USB port | Micro USB |
| Dimension | 260x155x73mm |
| Weight | 1250g |
