F2H-ODU-P12 Series ODF

F2H-ODU-P12 Series ODF
F2H-ODU-P12 Series ODF
F2H-ODU-P12 Series ODF
F2H-ODU-P12 Series ODF
F2H-ODU-P12 Series ODF
F2H-ODU-P12 Series ODF
F2H-ODU-P12 Series ODF
F2H-ODU-P12 Series ODF
F2H-ODU-P12 Series ODF
F2H-ODU-P12 Series ODF
F2H-ODU-P12 Series ODF

Functions

F2H-ODU-P12 Series ODF is used as terminal equipment of fiber optic cable for optical fiber wiring, fixation, fusion and patching.







F2H-ODU-P12 Series ODF

DATASHEET

F2H-ODU-P12 Series ODF

SOFTWARE

F2H-ODU-P12 Series ODF

MANUAL

F2H-ODU-P12 Series ODF

CERTIFICATE

F2H-ODU-P12 Optical Distribution Frame Features

F2H-ODU-P12 Series ODF

1.Adapters are installed in angle to avoid direct laser beam.

2.Removable cover.

3.Clear fiber marking on the tray cover and adapter panel.

4.Sliding splice trays.

5.High density ODF.

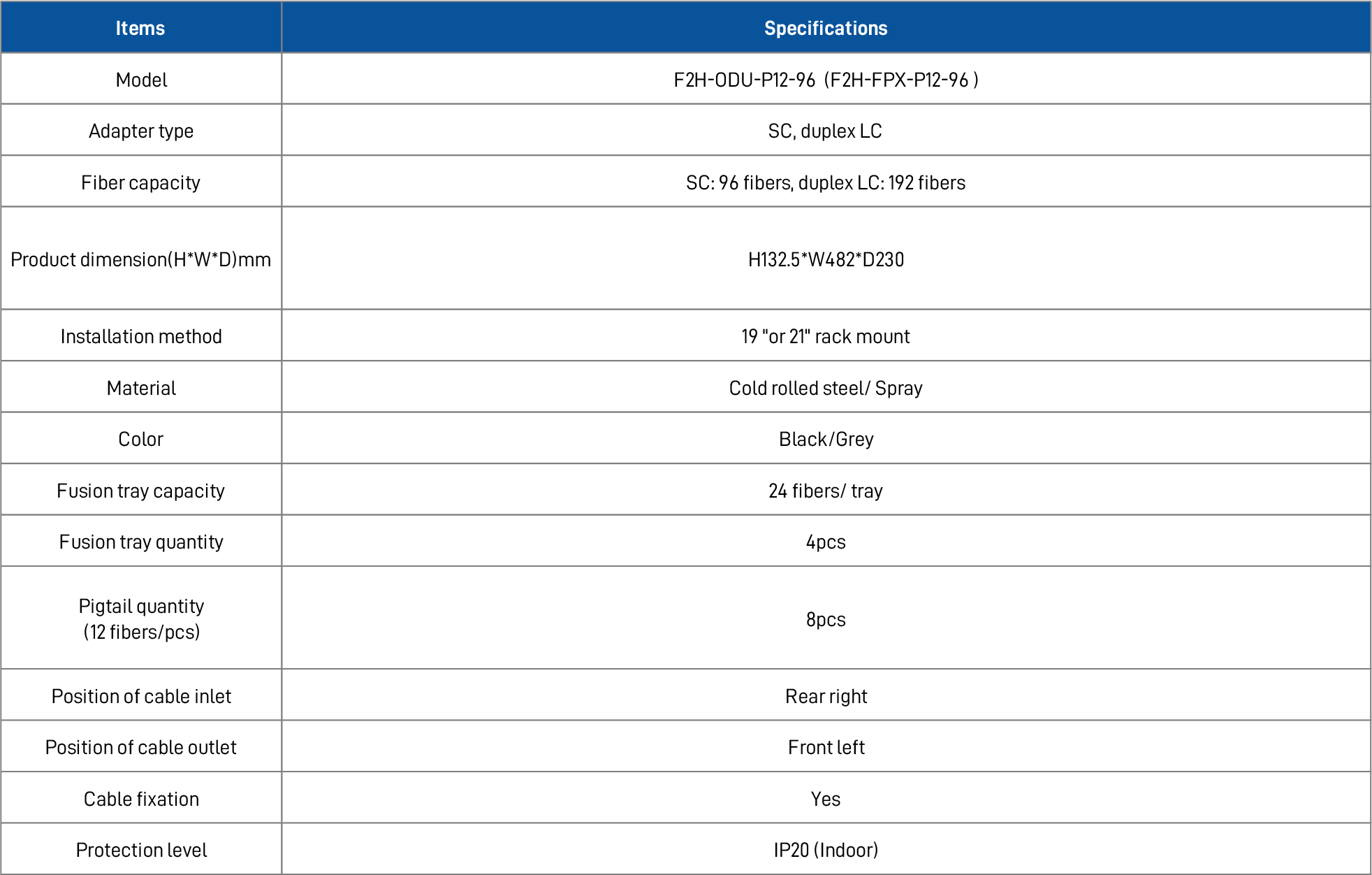

F2H-ODU-P12 Optical Distribution Frame Specification Parameters

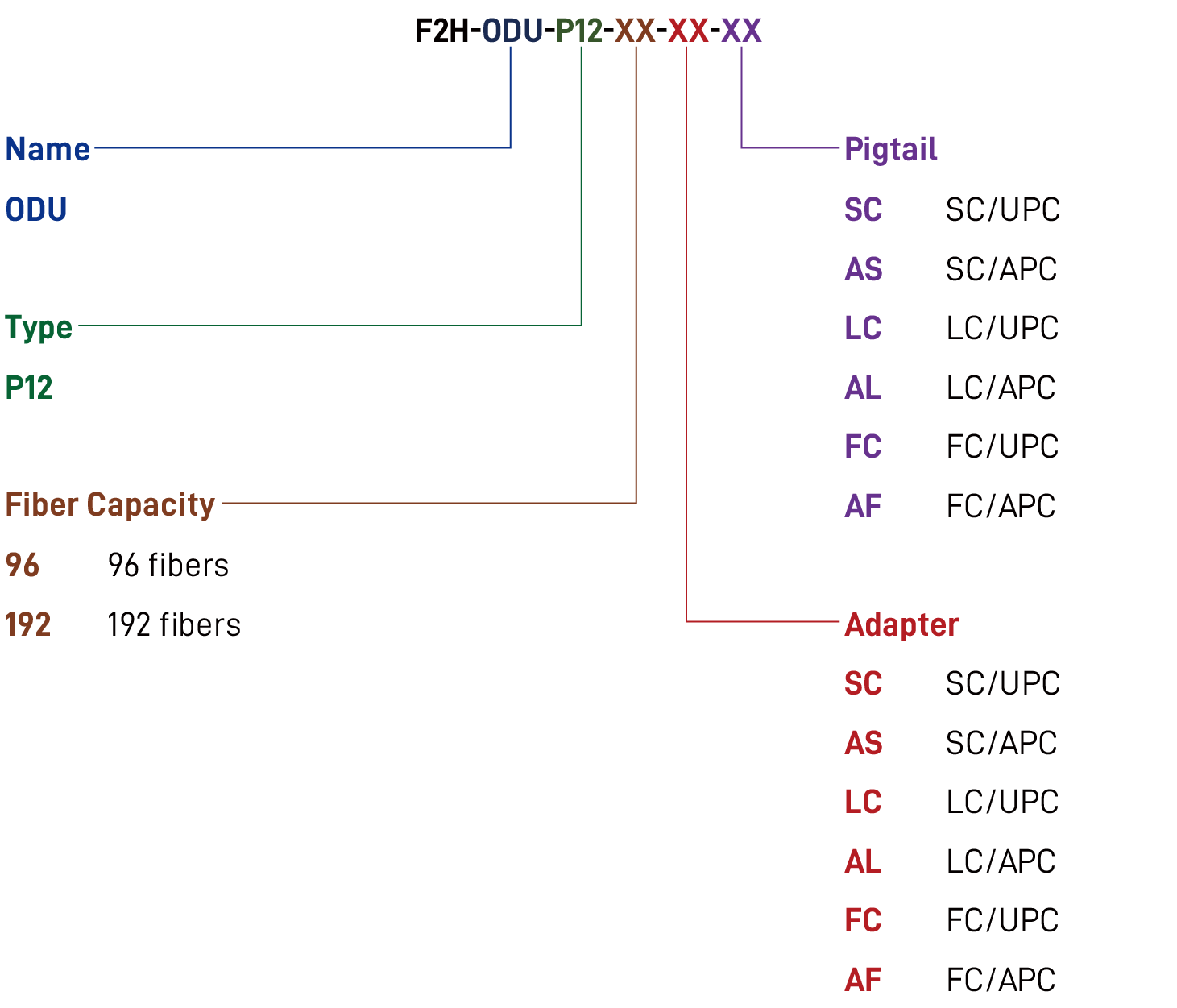

F2H-ODU-P12 Optical Distribution Frame Order information
