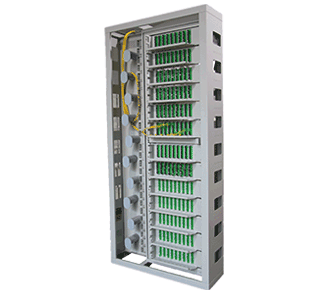

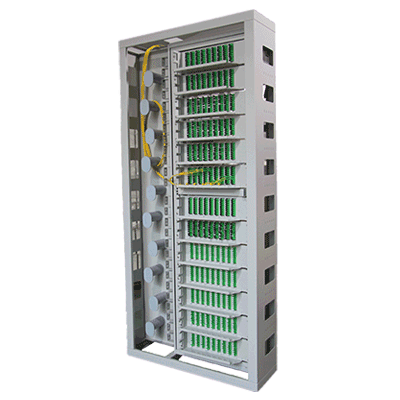

F2H-ODF-U2 Series ODF
The F2H-ODF-U2 Series ODF is an open fiber optic distribution cabinet designed to be placed in a central office. The distribution frame used for the splice connection between the outdoor cables and the pigtails.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
1. Modular designn(72 or 96 optical connectors per module).
2. Module for placement of splice trays.
3.Easy access-double rotating system(frame/module).
4.Connector pannel E2000,SC simplex,LC duplex.
5. Easy and variable management.
6.Possibility of installing passive elements into the modules.
7.Frame locking in the open position.
+86-21-5445 1260
