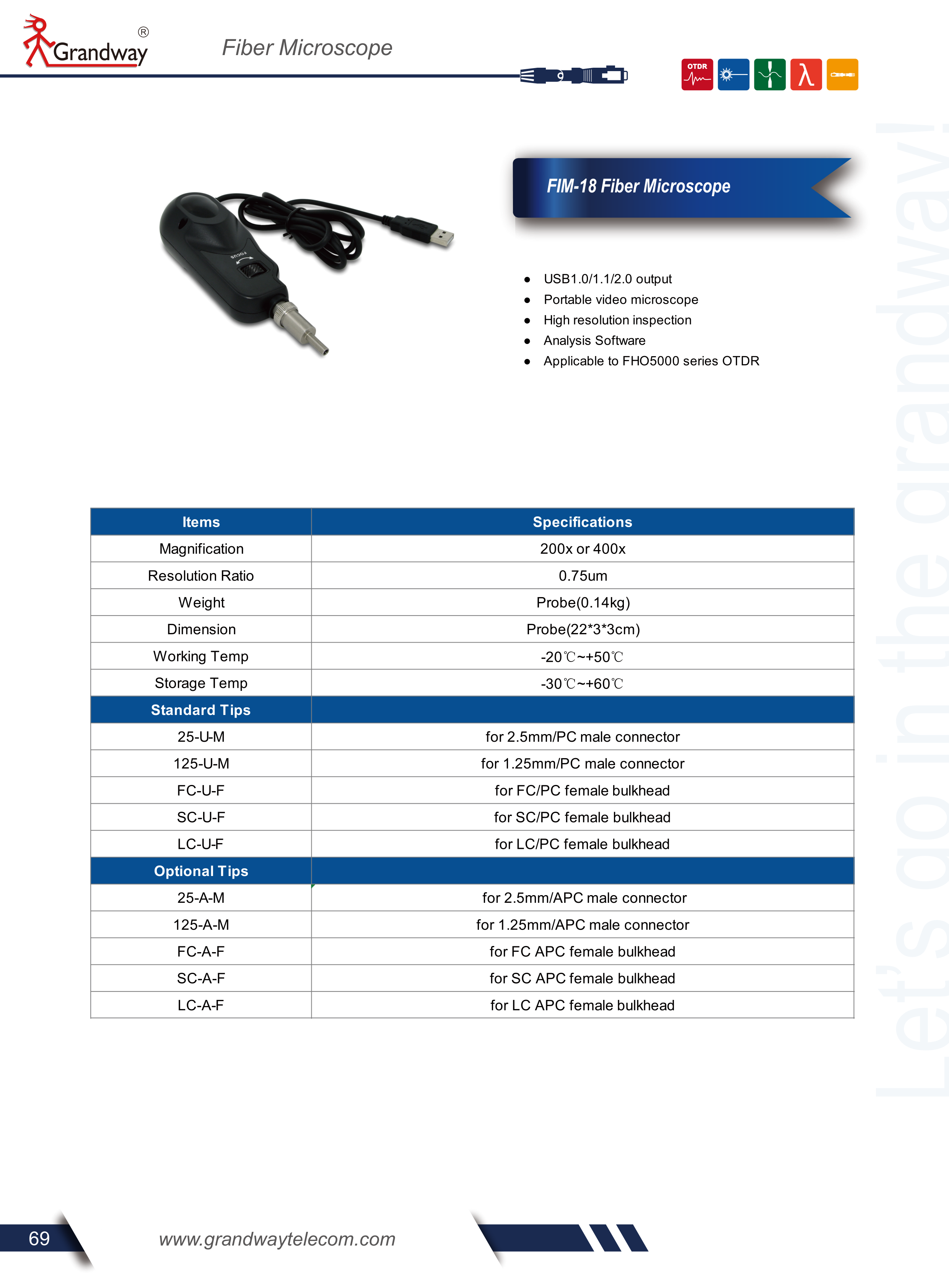

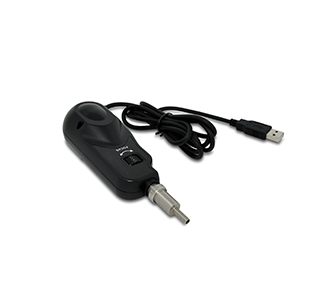

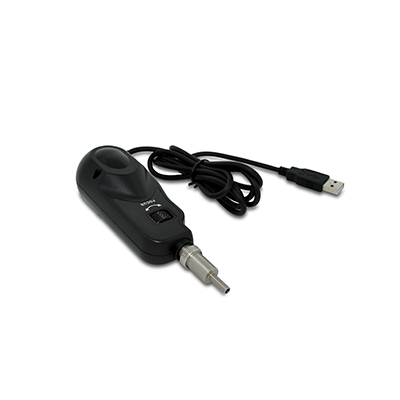

FIM-18 Fiber Microscope
FIM-18 is a portable, video microscope to inspect all kinds of fiber optic terminations,especially for the female ones.It eliminates the need to access the backside of patch panels or disassemble hardware devices prior to inspection.With suitable tips, they could check various ferrules and adapters in FTTH construction and maintenance.
400X
Magnification
0.75um
Resolution
621×466um
Field of view
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
USB 2.0 output
Portable video microscope
Windows; Linux System
Analysis Software
Applicable to FHO5000 series OTDR
| ltems | Specifications |
|---|---|
| Magnification | 400X |
| Resolution | 0.75um |
| Sensor | 1/3 decimetre 1.3 million pixels |
| View of Field | X: 621um; Y: 466um |
| Focus way | Manual |
| USB Interface | USB 1.0/1.1/2.0 |
| Dimension | 220x30x30mm |
| Weight | 140g |
| Standard Accessories | |
| FIM-18 Probe | 1pcs |
| 2.5 PC-M (For 2.5mm PC male connector) | 1pcs |
| 1.25 PC-M (For 1.25mm PC male connector) | 1pcs |
| SC-PC-F(For SC-PC female bulkhead) | 1pcs |
| FC-PC-F(For FC-PC female bulkhead) | 1pcs |
| LC-PC-F (For LC-PC female bulkhead) | 1pcs |
