FIM-17 Fiber Microscope

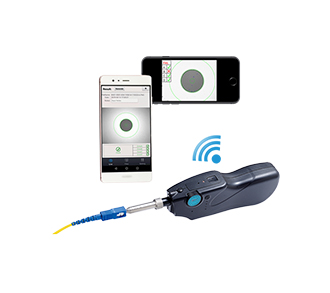

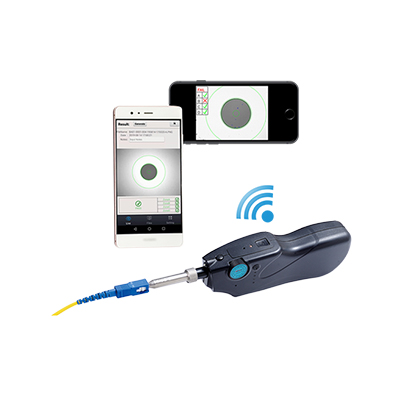

FIM-17 fiber probe is the automated WIFI/USB dual-use portable digital fiber scope. It can quickly check various patch cords and transceivers, display the fiber end face in PC/laptop/OTDR/smartphone, etc., digital devices with the USB cable or WiFi connection. Under WIFI mode, the probe can do the auto center and auto PASS/FAIL analysis with the end face. All test results, fiber images can be saved and shared on PC and mobile devices in pdf format for file records.
400X
Magnification
1.0um
Resolution
383×287um
Field of view
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Auto pass/fail whole process in 1-3s to save time
RealTime display image without any delay on the smartphone/tablet under WiFi Mode
Support Android/iOS/Windows Systems
Multiple terminals support with PC/Laptop/tablet/smartphone/OTDR with USB or WIFI channel
All test results, fiber images can be saved and shared on PC/ mobile devices in pdf format for file records

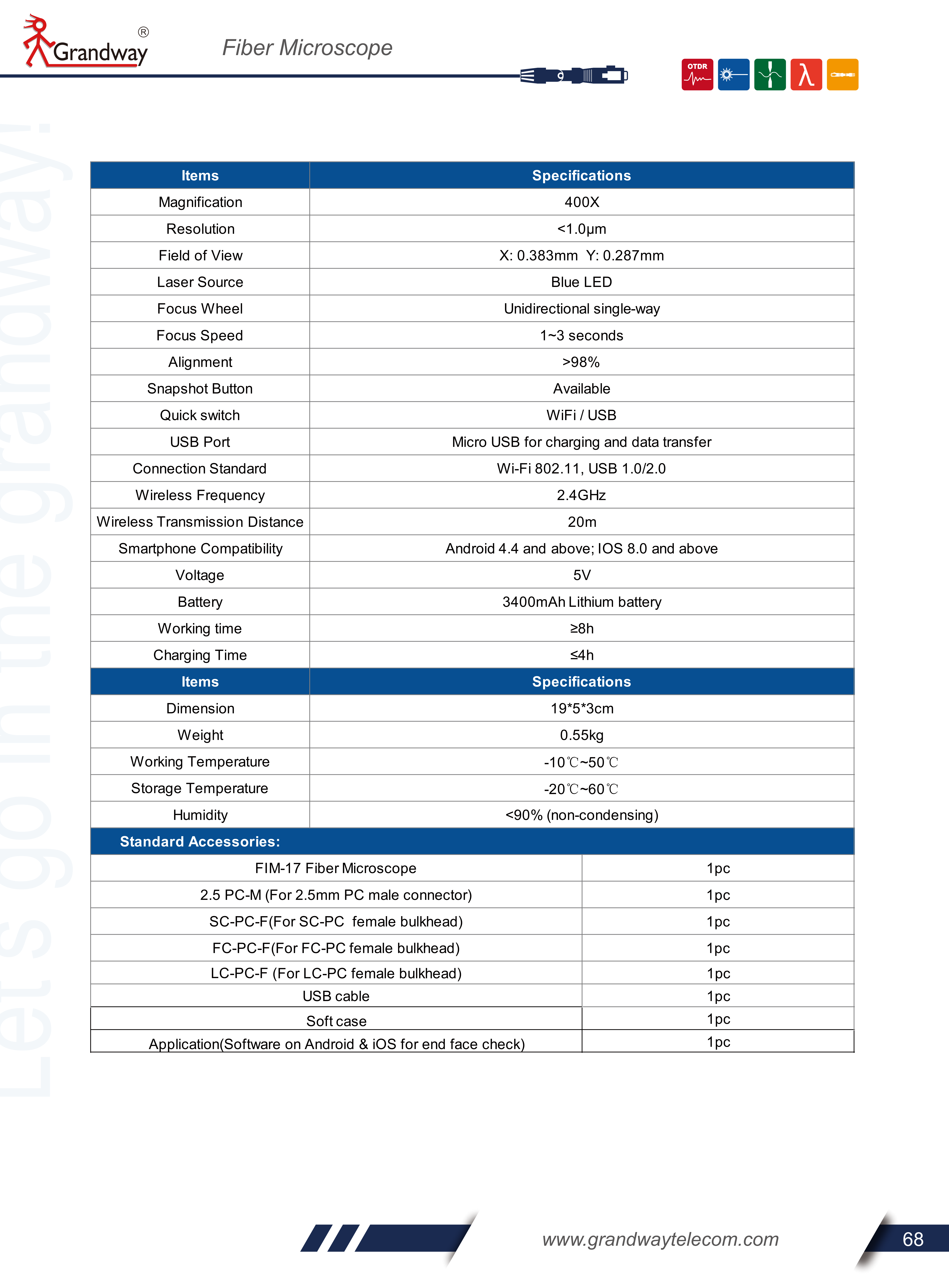

| ltems | Specifications |
|---|---|
| Magnification | 400X |
| Resolution | <1um |
| View of Field | X: 383um; Y: 287um |
| Focus way | Manual |
| Focus Direction | unidirectional |
| Focus speed | 1~3 seconds |
| Alignment | >98% |
| Sanpshot button | Support |
| Quick switch | WiFi/USB |
| USB Port | Micro USB for charging and data transfer |
| Connection Standard | Wi-Fi 802.11, USB 1.0/2.0 |
| Wireless Frequency | 2.4GHz |
| Wireless Transmission Distance | 20m |
| Smartphone Compatibility | Android and IOS |
| Battery | 3400mAh Lithium battery |
| Working time | ≥8h |
| Charging Time | ≤4h |
| Weight | 550g |
| Dimension | 190*50*30mm |
| Standard Accessories | |
| FIM-17 fiber microscope, including WiFi | 1pcs |
| 2.5 PC-M (For 2.5mm PC male connector) | 1pcs |
| SC-PC-F(For SC-PC female bulkhead) | 1pcs |
| FC-PC-F(For FC-PC female bulkhead) | 1pcs |
| LC-PC-F (For LC-PC female bulkhead) | 1pcs |
| USB cable | 1pcs |
| Soft case | 1pcs |
| Application(Software on Android & iOS for end face check) | 1pcs |
