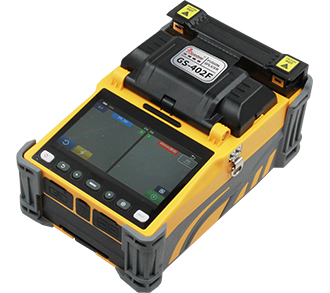

GS-402F Fusion Splicer
GS-402F is a 4-motor cladding alignment fiber fusion splicer with both VFL and optical power meter functions. Efficient splicing and heating time, while ensuring the quality of welding and heat shrinking. The machine is compact and portable, suitable for various application scenarios.
SM/MM
Applicable fiber type
7s
Fast splicing time
18s
Adjustable heating time
250 cycles
5200mAh battery
1500g
Light Weight
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE

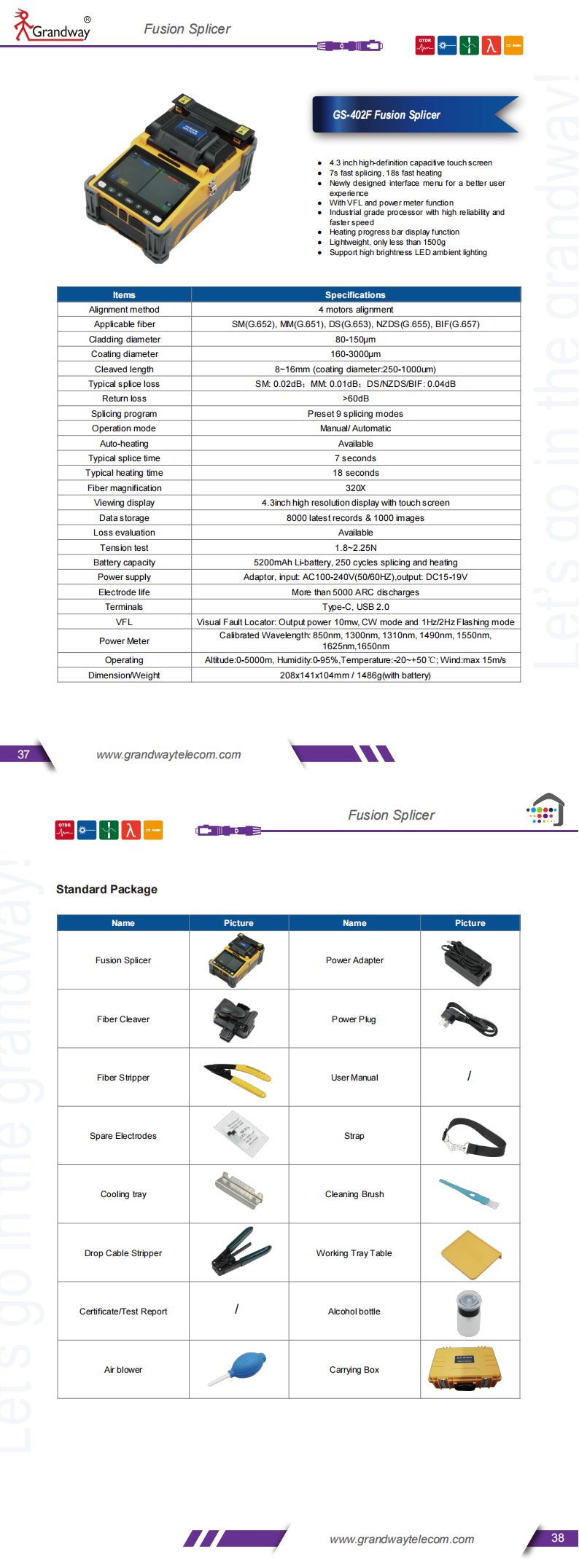

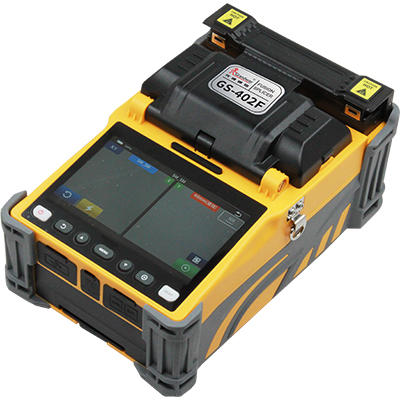

4.3 inch high-definition capacitive touch screen
7s fast splicing, 18s fast heating
Newly designed interface menu for a better user experience
With VFL and power meter function
Real time display of heating progress bar
Lightweight, only less than 1500g
Support high brightness LED ambient lighting
| ltems | Specifications |
|---|---|
| Alignment method | 4 motors alignment |
| Applicable fiber | SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), BIF(G.657) |
| Cladding diameter | 80~150um |
| Coating diameter | 160~3000um |
| Cleave length | 8~16mm |
| Typical splice loss | SM: 0.02dB, MM: 0.01dB, DS/NZDS/BIF: 0.04dB |
| Return loss | ＞60dB |
| Splicing program | Preset 9 splicing modes |
| Heating program | Preset 4 heating modes |
| Operation mode | Manual/Automatic |
| Auto-heating | Available |
| Typical splice time | 7 seconds |
| Typical heating time | 18 seconds |
| Fiber magnification | 320X |
| Viewing display | 4.3inch high resolution display with touch screen |
| Data storage | 8000 latest records & 1000 images |
| Splice loss evaluation | Available |
| Tension test | 1.8N~2.25N |
| Battery capacity | 5200mAh Li-Battery, 250 cycles splicing and heating |
| Power supply | AC input 100~240V, DC output 15~19V |
| Electrode life | More than 5000 ARC discharges |
| Terminals | USB 2.0, Type-C |
| VFL | Output power: 10mw, CW/1Hz/2Hz flashing mode |
| Power meter | Calibrated wavelength: 850/1300/1310/1490/1550/1625/1650mm |
| Measuring range: -50~+26dBm | |
| Working Environment | Altitude: 0~5000m; Humidity: 0~95%; Temperature: -20~+50℃; Wind: Max 15m/s |
| Dimension | 208x141x104mm |
| Weight | 1486g(with battery) |
