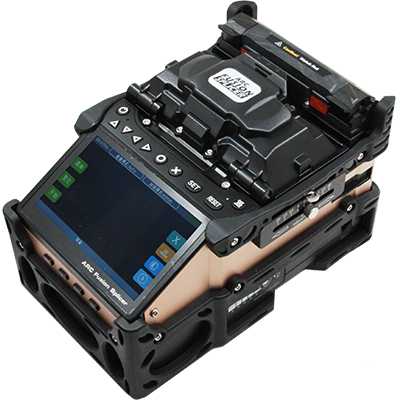

GS-602F Fusion Splicer
GS-602F is a 6-motor core alignment fiber fusion splicer with both VFL and optical power meter functions. The carrying case also features a multifunctional design with a small stool, making it convenient for operators to perform fusion splicing operations.
SM/MM
Applicable fiber type
5s
Fast splicing time
11s
Adjustable heating time
320 cycles
7200mAh battery
20000 groups
Data storage
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
6 motors core alignement automatic fusion splicer
5s fast splicing, 11s overspeed heating
With VFL and power meter
4.3" high resolution lcd touch screen with 380x magnification
7200mAh high-capacity battery
Unique multifunctional toolbox with small stool design
| ltems | Specifications |
|---|---|
| Alignment method | 6 motors core alignment |
| Applicable fiber | SM(G.652), MM(G.651), DS(G.653), NZDS(G.655), BIF(G.657) |
| Cladding diameter | 80~150um |
| Coating diameter | 160~3000um |
| Cleave length | 8~16mm |
| Typical splice loss | SM: 0.02dB, MM: 0.01dB, DS/NZDS/BIF: 0.04dB |
| Return loss | ＞60dB |
| Splicing program | Preset 41 splicing modes |
| Heating program | Preset 5 heating modes |
| Operation mode | Manual/Automatic |
| Auto-heating | Available |
| Typical splice time | 5 seconds |
| Typical heating time | 11 seconds |
| Fiber magnification | 380X |
| Viewing display | 4.3inch high resolution display with touch screen |
| Data storage | 20000 latest records & 200 images |
| Splice loss evaluation | Available |
| Tension test | 1.8N~2.25N |
| Battery capacity | 7200mAh Li-Battery, 320 cycles splicing and heating |
| Power supply | AC input 100~240V, DC output 12~15V |
| Electrode life | More than 5000 ARC discharges |
| Terminals | USB 2.0, Mini USB |
| VFL | Output power: 15mw, CW/2Hz flashing mode |
| Power meter | Calibrated wavelength: 850/1300/1310/1490/1550/1625mm |
| Measuring range: -50~+26dBm | |
| Working Environment | Altitude: 0~5000m; Humidity: 0~95%; Temperature: -20~+50℃; Wind: Max 15m/s |
| Dimension | 135x206x130mm |
| Weight | 2.0kg(with battery) |
