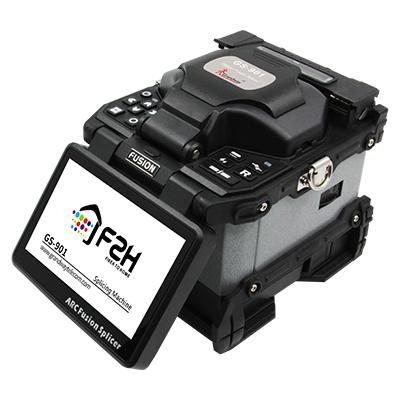

GS-901 Ribbon Fiber Splicer
GS-901 Ribbon fiber fusion splicer is applicable to 2~12 cores fibers splicing. 20s splicing time, heating 1~2 fiber is 26s and 4-12 fiber ribbon 40s. Equipped with 5200mAh battery support more than 150times splicing and heating cycle.
2~12 cores
Applicable fiber type
20s
Fast splicing time
40s
Adjustable heating time
150 cycles
5200mAh battery
10000 groups
Data storage
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Applicable to 2-12 ribbon fiber splicing
20s splicing time, heating 1-2 fiber is 26s and 4-12 fiber ribbon 40s
Pluggable 5200mAh Li-battery, support separate charging
USB port for software upgrading, records exporting
Support 10000 groups fusion records and 200 fusion images
Ruggedized body, waterproof, anti-dust, anti-shock
| ltems | Specifications |
|---|---|
| Alignment method | Clad to clad |
| Applicable fiber | SM(G.652), MM(G.651), DS(G.653), NZDS(G.655) |
| Fiber core quantity | 1~12 fibers |
| Cladding diameter | 80~150um |
| Coating diameter | 250~400um |
| Typical splice loss | SM: 0.05dB, MM: 0.02dB, DS/NZDS/BIF: 0.08dB |
| Return loss | ＞60dB |
| Splicing program | Preset 40 splicing modes |
| Operation mode | Manual/Automatic |
| Auto-heating | Available |
| Typical splice time | 20 seconds |
| Typical heating time | 1~2 cores 26 secones; 4~12 cores 40 seconds |
| Fiber magnification | 25X |
| Viewing display | 5inch 800*480 high resolution display with touch screen |
| Data storage | 10000 latest data records and 200 images |
| Splice loss evaluation | Available |
| Tension test | 1.8N~2.25N |
| Battery capacity | 5200mAh Li-Battery, 150 cycles splicing and heating |
| Power supply | AC input 100~240V, DC output 11~13.5V |
| Electrode life | More than 3000 ARC discharges |
| Terminals | USB 2.0 port for software upgrading and exporting records |
| Working Environment | Altitude: 0~5000m; Humidity: 0~95%; Temperature: -20~+50℃; Wind: Max 15m/s |
| Dimension | 155x144x155mm |
| Weight | 2.3kg(with battery) |
