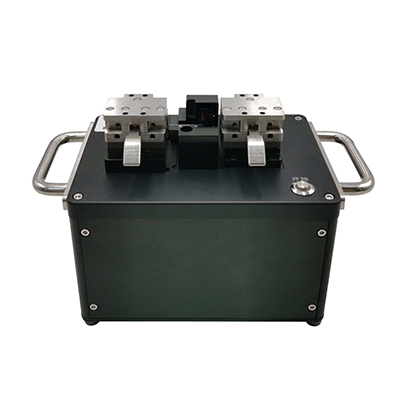

GWCQG-13 Portable Optical Fiber Cleaver
GRANDWAY
GWCQG-13 Portable Optical Fiber Cleaver is suitable for cutting with fiber cladding diameter Φ80μm~250μm and fiber coating diameter Φ100μm~400μm.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Suitable for cutting fiber with cladding diameter 80μm~250μm and coating diameter 100μm~400μm
Cleaving angle：0.5°(Typical value)
Cleaving length: 3mm~60mm
Blade life: Diamond blade 10,000 times
Battery capacity: 3400mAh
| ltems | Specifications |
|---|---|
| Model | GWCQG-13 |
| Type | Portable Optical Fiber Cleaver |
| Fiber cladding diameter | Ф80μm-250μm |
| Fiber coating diameter | Ф100μm-400μm |
| Cleaving length | 3～60mm |
| Cleaving angle | 0.5°(Typical value) |
| Blade life | Diamond blade 10,000 times |
| Battery capacity | 3400mAH |
| Power adapter | Input：AC100/240V,Output：DC13.5V/5.0A |
| Dimension | 160*110*137mm |
| Operating condition | Humidity 0～95%, Temperature 0～40℃(non dew) |
| Storage condition | Humidity 0～95%, Temperature -40～80℃(non dew) |
