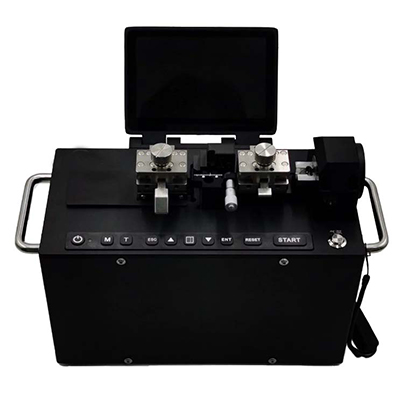

GWCQG-10 Fiber angle Cleaver
GRANDWAY
GWCQG-10 Fiber angle Cleaver is suitable for cutting with fiber cladding diameter Φ80μm~1300μm and fiber coating diameter Φ100μm~2000μm.The cutting angle can be set between 0-15°
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Suitable for cutting fiber with cladding diameter 80μm~1300μm and coating diameter 100μm~2000μm
Cleaving angle：0-15°
Cleaving length: 3mm~72mm
Screen size: 5 inch
Blade life: Diamond blade,20,000 times
Battery capacity：Voltage:10.8V; Capacity: 6800mAH
| ltems | Specifications |
|---|---|
| Model | GWCQG-10 |
| Type | Fiber angle cleaver |
| Fiber cladding diameter | Ф80μm-1300μm |
| Fiber coating diameter | Ф100μm-2000μm |
| Cleaving length | 3～72mm |
| Cleaving angle | 0-15° |
| Screen size | 5 inches color LCD |
| Blade life | Diamond blade,20,000 times |
| Battery capacity | Voltage：10.8V; Capacity：6800mAH |
| Power adapter | Input AC 100/240V,Output DC 13.5V/5.0A |
| Dimension | 240(L)*140(W)*160(H)mm |
| Operating condition | Humidity 0～95%, Temperature 0～40℃(non dew) |
| Storage condition | Humidity 0～95%, Temperature -40～80℃(non dew) |
