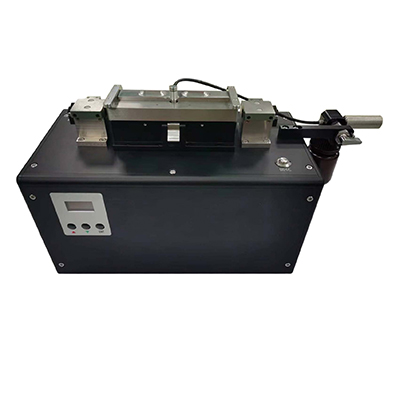

GWCTF-100 Optical Fiber Recoater
GRANDWAY
GWCTF-100 Optical Fiber Recoater Re-coating diameter support 280µm/430µm/600µm/680µm(Customize for special diameters); Re-coating length 4-100mm
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Manual coating,stable and Smooth surface after coating Intact place of stripping efficient,simple maintenance.
Optimize the bubble separation system to ensure stable glue output.
One-piece mold,close fit.
Applicable optical fiber material: Quartz optical fiber
Re-coating diameter: 280µm/430µm/600µm/680µm(Customize for special diameters)
Re-coating length: 4-100mm
| ltems | Specifications |
|---|---|
| Model | GWCTF-100 |
| Type | Manual Optical Fiber Recoater |
| Applicable optical fiber material | Quartz optical fiber |
| Re-coating diameter | 280µm/430µm/600µm/680µm(Customize for special diameters) |
| Re-coating length | 4-100mm |
| Curing light source | UVLED wavelength；365nm±15nm |
| Curing material | Optical curing acrylate |
| Mold material | Quartz |
| Curing time | 10-30 seconds |
| Injecting glue method | Manual |
| Precision of mold arc groove | ±5 micron |
| Dimensions | 336(L)*147(W)*184(H)mm |
| Weight | 4kg(With battery) |
| Power supply | External power supply: AC Input:100~240 V (50~60Hz）DC output:13.5V /5A |
| Battery | Internal lithium battery: 10.8V 6500mAh |
| Operating condition | Humidity 0～95%, Temperature 0～40℃(non dew) |
| Storage condition | Humidity 0～95%, Temperature -20～60℃(non dew) |
