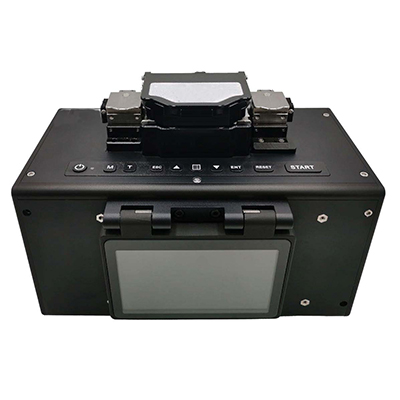

GWCTF-50 Automatic Optical Fiber Recoater
GRANDWAY
GWCTF-50 Automatic Optical Fiber Recoater has the following characteristics: Fully automatic coating,stable and Smooth surface after coating Intact place of stripping efficient,simple maintenance. Optimize the bubble separation system to ensure stable glue output. One-piece mold,close fit.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Fully automatic coating,stable and Smooth surface after coating Intact place of stripping efficient,simple maintenance.
Optimize the bubble separation system to ensure stable glue output.
One-piece mold,close fit.
Applicable optical fiber material: Quartz optical fiber
Re-coating diameter: 280µm/430µm/600µm/680µm(Customize for special diameters)
Re-coating length: 4-50mm
| ltems | Specifications |
|---|---|
| Model | GWCTF-50 |
| Type | Automatic Optical Fiber Recoater |
| Applicable optical fiber material | Quartz optical fiber |
| Re-coating diameter | 280µm/430µm/600µm/680µm(Customize for special diameters) |
| Re-coating length | 4-50mm |
| Curing light source | UVLED wavelength；365nm±15nm |
| Curing material | Optical curing acrylate |
| Mold material | Quartz |
| Curing time | 10-30 seconds |
| Injecting glue method | Automatic |
| Precision of mold arc groove | ±5 micron |
| Dimensions | 248(L)*134(W)*186(H)mm |
| Weight | 4.5kg(With battery) |
| Power supply | External power supply: AC Input:100~240 V (50~60Hz）DC output:13.5V /5A |
| Battery | Internal lithium battery: 10.8V 6500mAh |
| Operating condition | Humidity 0～95%, Temperature 0～40℃(non dew) |
| Storage condition | Humidity 0～95%, Temperature -20～60℃(non dew) |
