GWCRJ-17 LDF Splicer
GRANDWAY

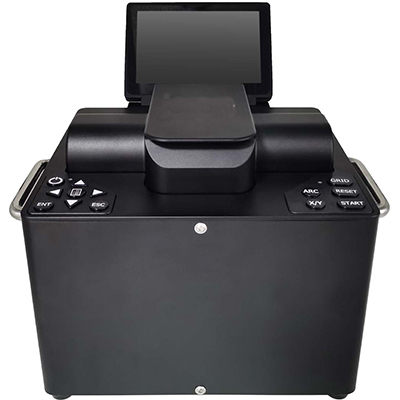

GWCRJ-17 large-diameter fiber fusion splicer, suitable for fusion splicing fibers with cladding diameters of Φ125-400μm and coating diameters of Φ200-800μm.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Suitable for cladding diameters of Φ125-400μm and coating diameters of Φ200-800μm
Typical fusion splice loss: SMF:0.03dB；NZDSF/LDF：0.05dB；MMF:0.02dB
Typical fusion time: SMF/MMF 15seconds; NZDSF/LDF：25seconds
Cleaving length: 10～15mm (standard value 12mm)
Spice mode: 300 kinds of standards, manual, power meter, attenuation mode, etc
Power supply: AC adapter DC13.5V/10A; Lithium battery: 10.8V / 20400mAh(MS-XL-B)
| ltems | Specifications |
|---|---|
| Model | GWCRJ-17 |
| Type | LDF(Large Diameter Optical Fiber) Splicer |
| Fiber cladding diameter | Ф125-400μm |
| Fiber coating diameter | Ф200-800μm |
| Fiber quantity | Single optical fiber |
| Cleaving length | 10～15mm (standard value 12mm) |
| Typical fusion splice loss | SMF:0.03dB；NZDSF/LDF：0.05dB；MMF:0.02dB |
| Typical fusion time | SMF/MMF：15seconds; NZDSF/LDF：25seconds |
| Return loss | >60dB |
| Optical fiber clamp | Automatically adjust according to the size of the fiber optic cladding |
| Electrode life | Discharge 2500 times |
| Tension test | 1.96~2.45N |
| Magnification | 50-300 (variable) |
| Auto Splice | Support |
| Splice mode | 300 kinds of standards, manual, power meter, attenuation mode, etc |
| Data storage | 10,000 for splicing data |
| Dimension | 240(L)*180(W)*163(H)mm |
| Power supply | AC adapter：DC13.5V/4.5A |
| Lithium battery：10.8V / 20400mAh(MS-XL-B) | |
| Operating condition | Humidity 0～95%, Temperature 0～40℃(non dew) |
| Storage condition | Humidity 0～95%, Temperature -40～80℃(non dew) |
