GWCRJ-15 LDF Splicer
GRANDWAY

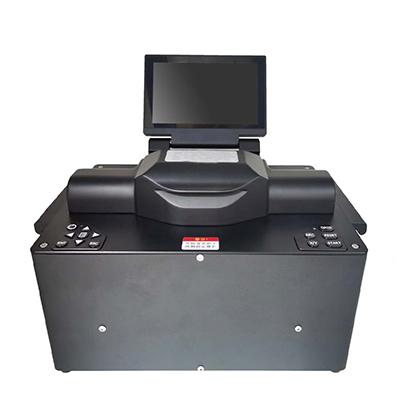

GWCRJ-15 large-diameter fiber fusion splicer, suitable for fusion splicing fibers with cladding diameters of Φ125-550μm and coating diameters of Φ200-1000μm.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Suitable for cladding diameters of Φ125-550μm and coating diameters of Φ200-1000μm
Typical fusion splice loss: SMF:0.03dB；NZDSF/LDF：0.05dB；MMF:0.02dB
Typical fusion time: SMF/MMF 15seconds; NZDSF/LDF：25seconds
Cleaving length: 3～15mm (standard value 5mm)
Spice mode: 300 kinds of standards, manual, power meter, attenuation mode, etc
Power supply: AC adapter DC13.5V/10A
| ltems | Specifications |
|---|---|
| Model | GWCRJ-15 |
| Type | LDF(Large Diameter Optical Fiber) Splicer |
| Fiber cladding diameter | Ф125-550μm |
| Fiber coating diameter | Ф200-1000μm |
| Fiber quantity | Single optical fiber |
| Cleaving length | 3～15mm (standard value 5mm) |
| Typical fusion splice loss | SMF:0.03dB；NZDSF/LDF：0.05dB；MMF:0.02dB |
| Typical fusion time | SMF/MMF：15seconds; NZDSF/LDF：25seconds |
| Return loss | >60dB |
| Optical fiber clamp | Automatically adjust according to the size of the fiber optic cladding |
| Electrode life | Discharge 2500 times |
| Tension test | 1.96~2.45N |
| Magnification | 50-300 (variable) |
| Auto Splice | Support |
| Splice mode | 300 kinds of standards, manual, power meter, attenuation mode, etc |
| Data storage | 10,000 for splicing data |
| Dimensions | 360mm(L)*240mm(W)*206.5mm(H) |
| Power supply | AC adapter：DC13.5V/10A |
| Operating condition | Humidity 0～95%, Temperature 0～40℃(non dew) |
| Storage condition | Humidity 0～95%, Temperature -40～80℃(non dew) |
