Uni-tube Light Armored Cable - GYXTW


Functions

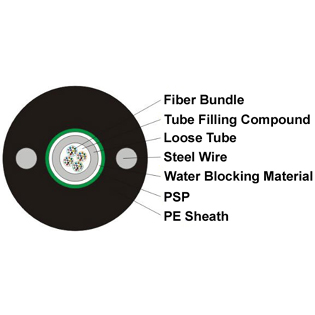

Cable Structure:The 250um bare fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. The tube is wrapped with a layer of PSP longitudinally. Between the PSP and the loose tube, water-blocking material is applied to to keep the cable compact and watertight. Two parallel steel wires are placed at the two sides of the steel tape. Then the cable is completed with a polyethylene (PE) sheath.

DATASHEET

SOFTWARE

MANUAL

CERTIFICATE

Features


1.Long delivery length

2.Crush resistance and flexibility

3.Two parallel steel wires ensure tensile strength

4.Good mechanical and temperature performance

5.High strength loose tube that is hydrolysis resistant

6.Small diameter, light weight and friendly installation

7.Special tube filling compound ensure a critical protection of fiber

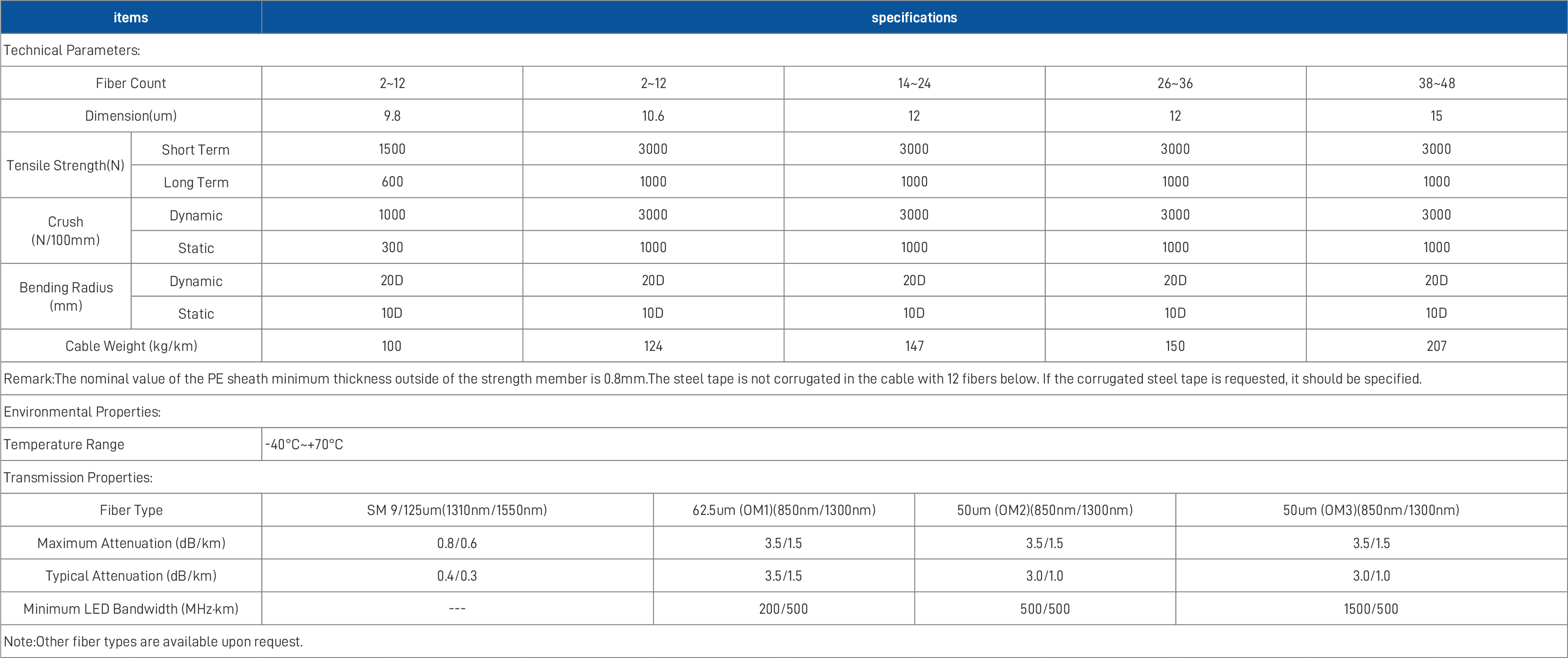

Parameter

Uni-tube Light Armored C-GYXTW1_0.png

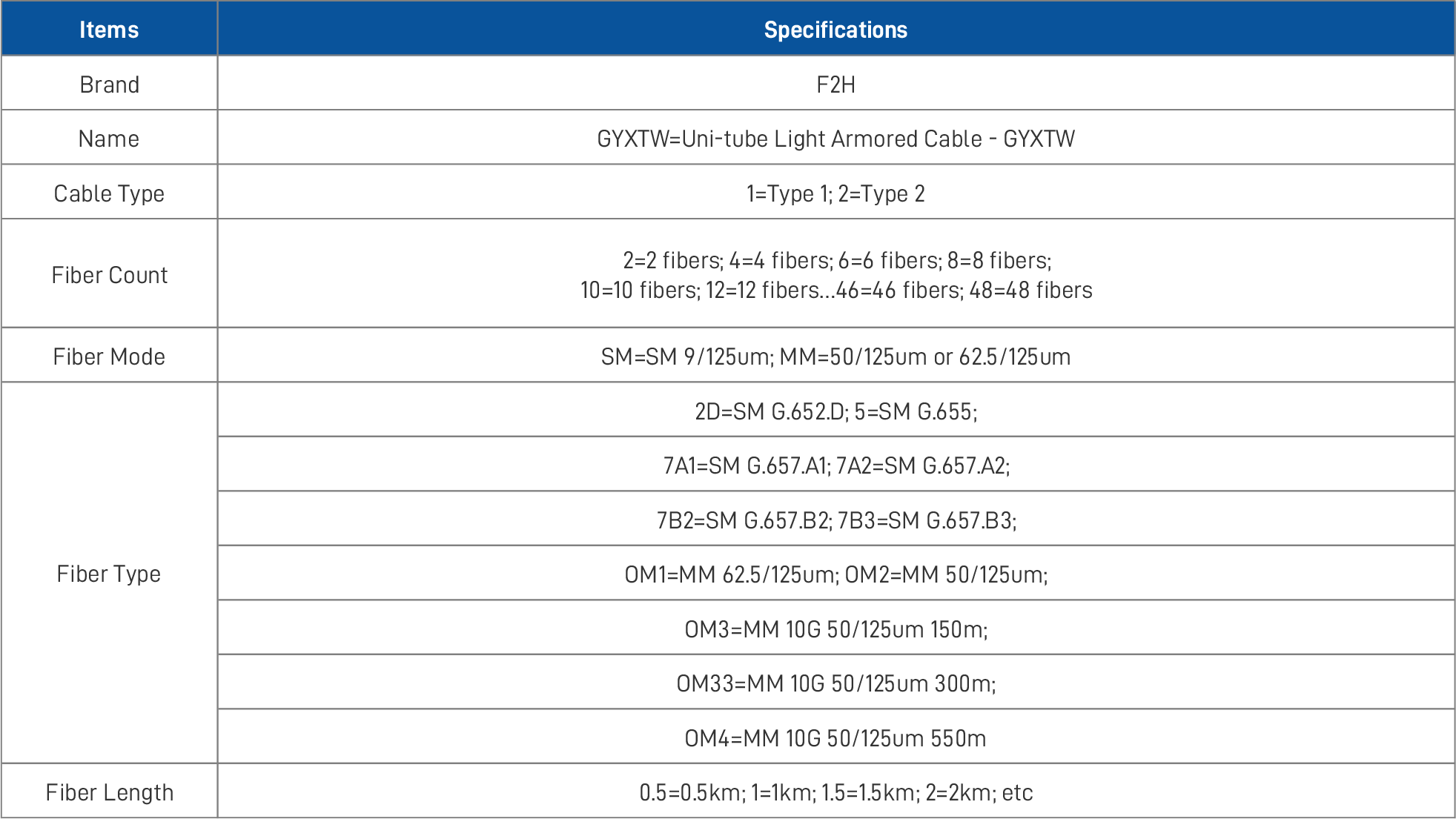

Ordering Information

Uni-tube Light Armored C-GYXTW2_0.png
