Stranded Loose Tube Non-metallic Strength Member Single Armored Cable – GYFTY53


Functions

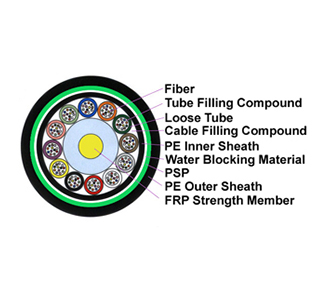

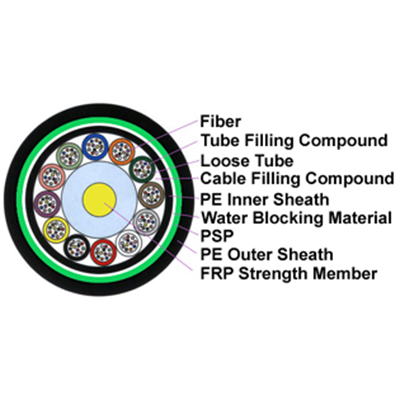

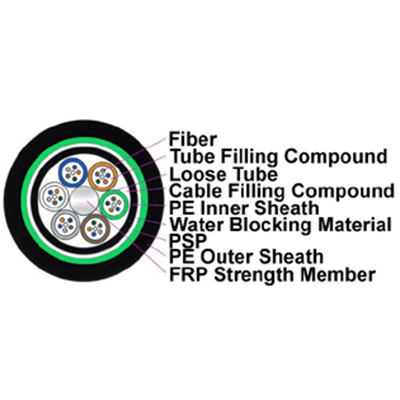

Cable Structure:The 250um bare fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. Tubes and fillers are stranded around the strength member into a compact and circular cable core. Then the cable core is covered with a thin PE inner sheath, which is filled with jelly to protect it from water ingress. A layer of water-blocking material is applied around the cable core to prevent water ingress all the same. After a corrugated steel armor is applied, the cable is completed with a PE sheath.

DATASHEET

SOFTWARE

MANUAL

CERTIFICATE

Features


1.Crush resistance and flexibility

2.Good mechanical and temperature performance

3.PE sheath protects cable from ultraviolet radiation

4.High strength loose tube that is hydrolysis resistant

5.Special tube filling compound ensure a critical protection of fiber

6.The following measures are taken to ensure the cable watertight:Steel wire used as the central strength member、Loose tube filling compound、100% cable core filling、PSP enhancing moisture-proof、Water-blocking material

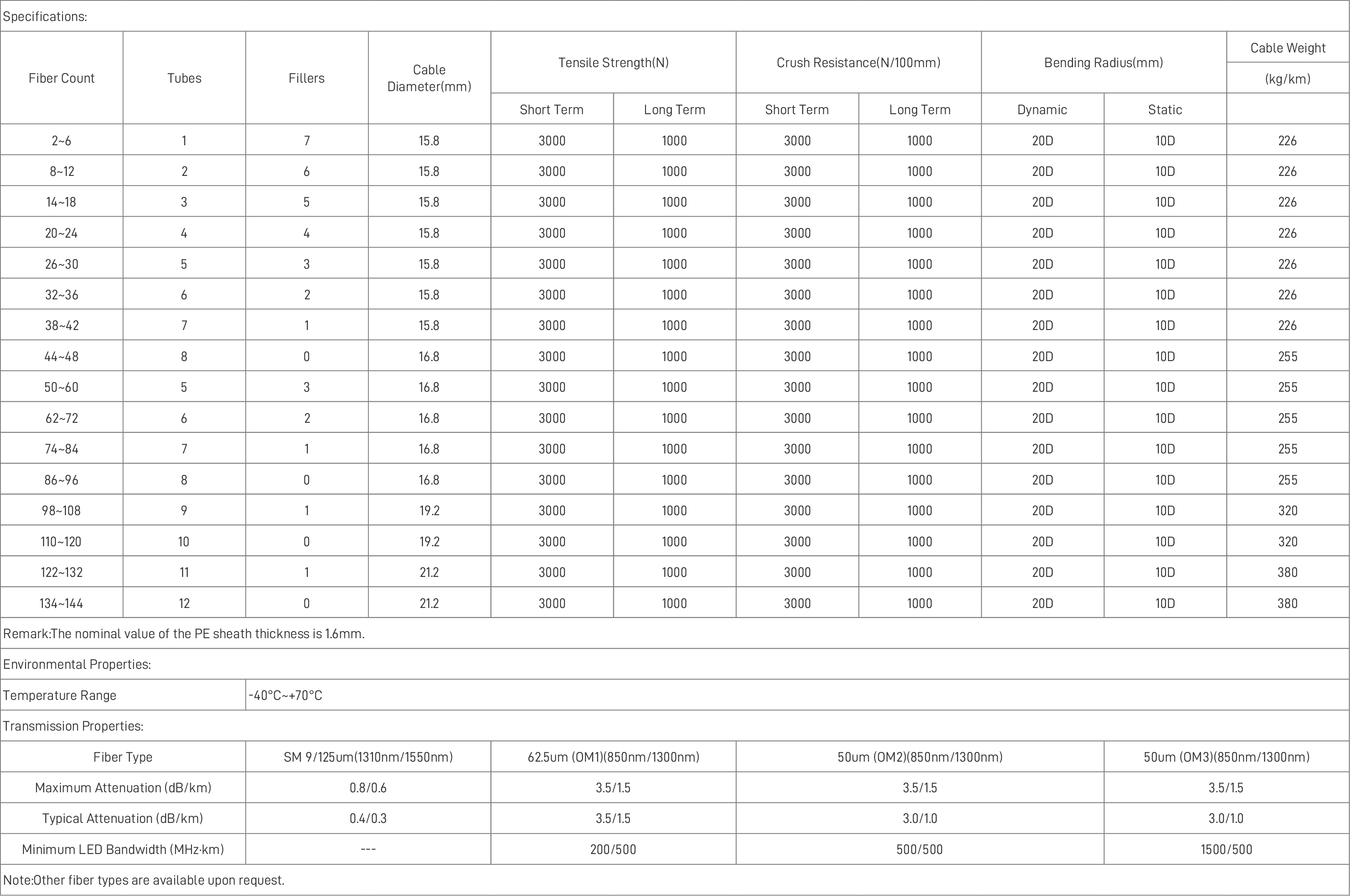

Parameter

Armored Cable – GYFTY53 1_0.png

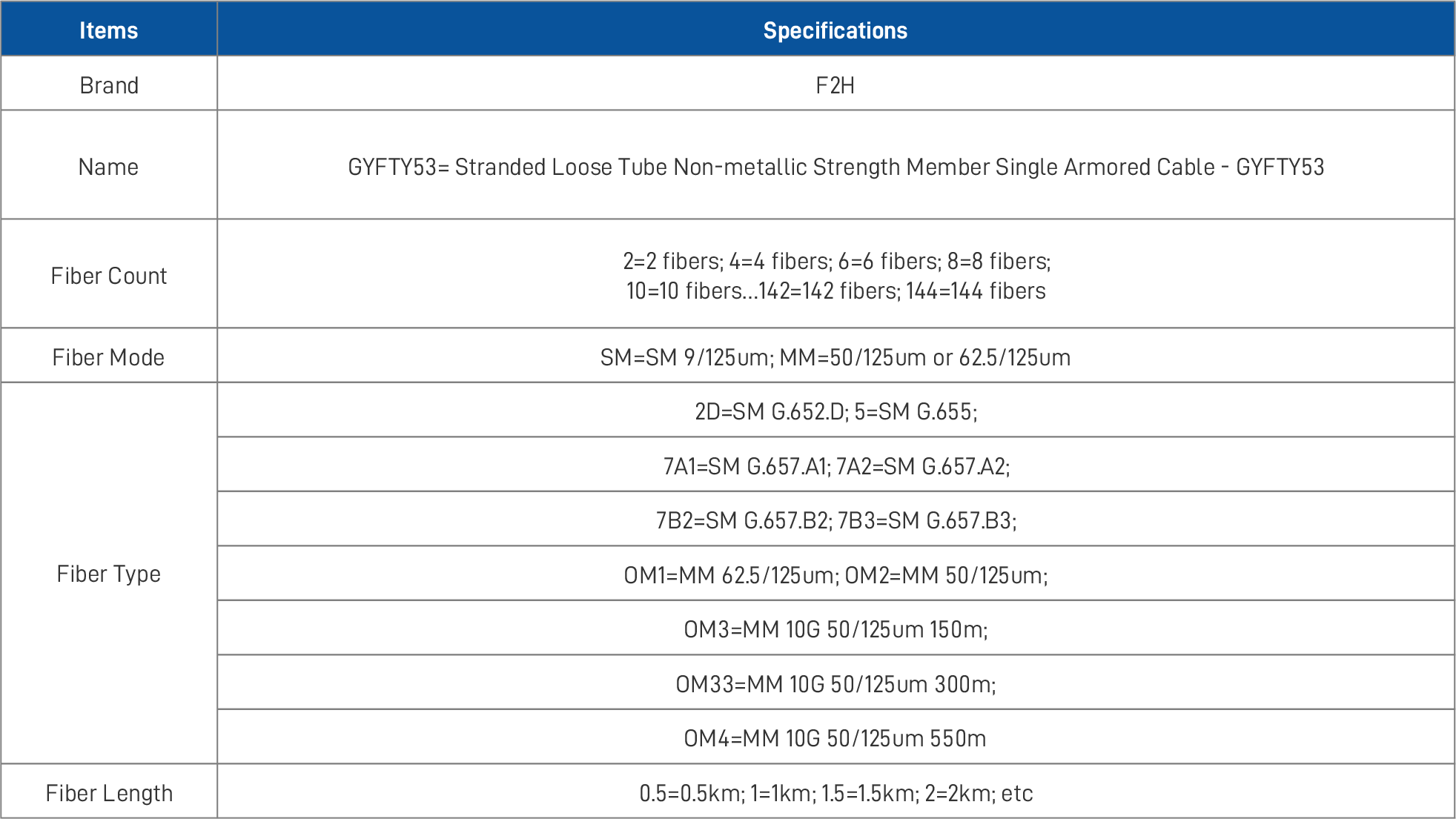

Ordering Information

Armored Cable – GYFTY53 2_0.png
