Stranded Loose Tube Non-armored Cable – GYFTY


Functions

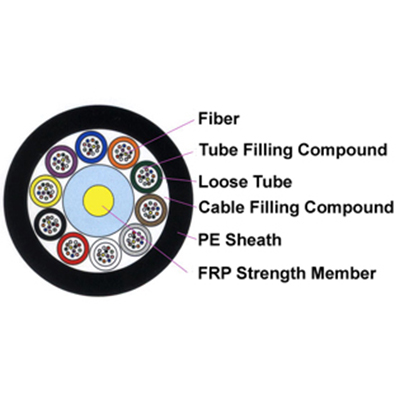

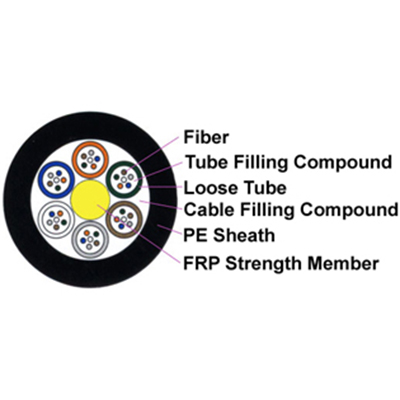

Cable Structure:The 250um bare fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. Tubes and fillers are stranded around the strength member into a compact and circular cable core. After the cable core is filled with the filling compound to protect it from water ingress, the cable is completed with a PE sheath.

DATASHEET

SOFTWARE

MANUAL

CERTIFICATE

Features


1.Crush resistance and flexibility

2.Good mechanical and temperature performance

3.High strength loose tube that is hydrolysis resistant

4.Special tube filling compound ensure a critical protection of fiber

5.The following measures are taken to ensure the cable watertight:   Single Fiber Reinforced Plastic as the central strength member   Loose tube filling compound   100% cable core filling

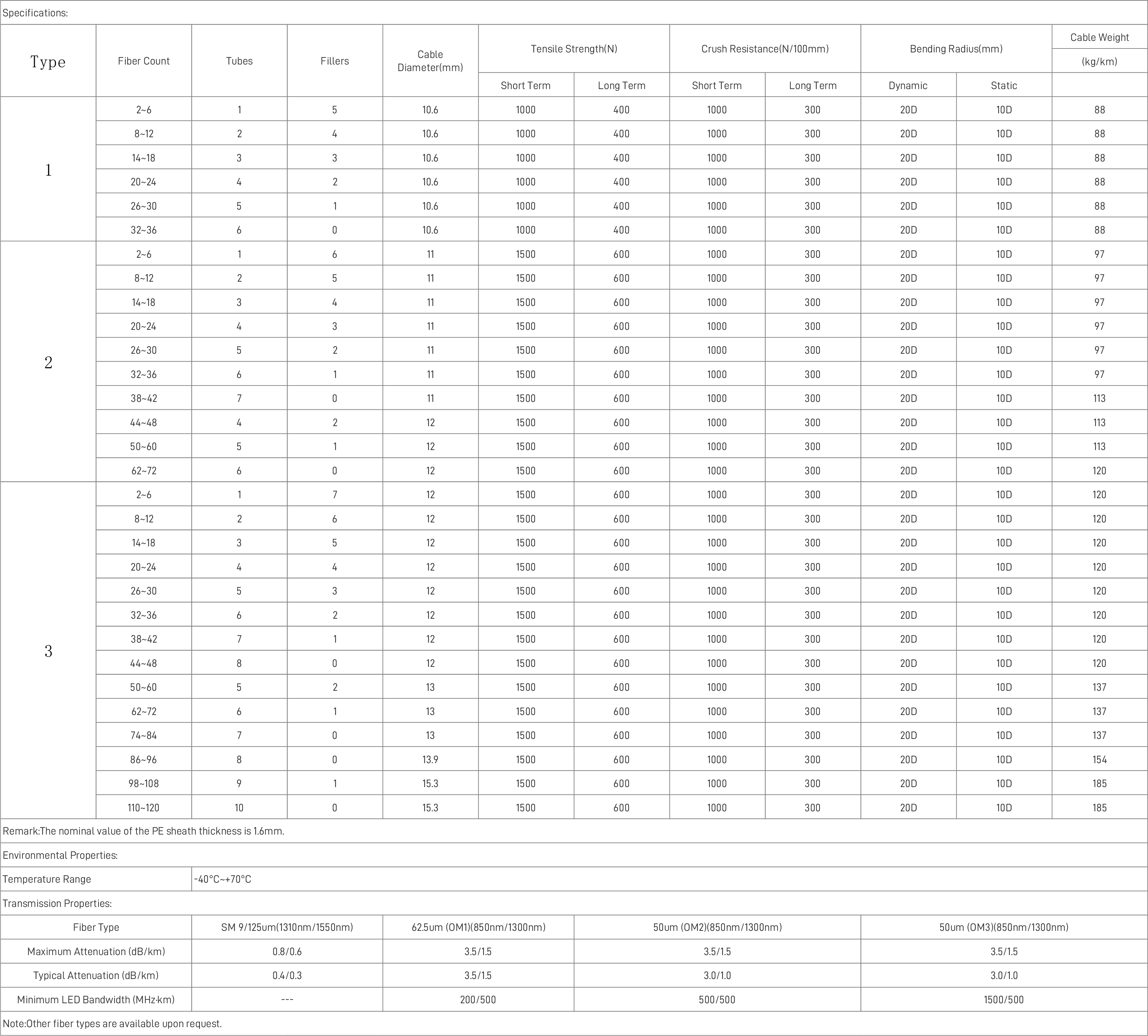

Parameter

Tube Non-armored Cable – GYFTY1_0.png

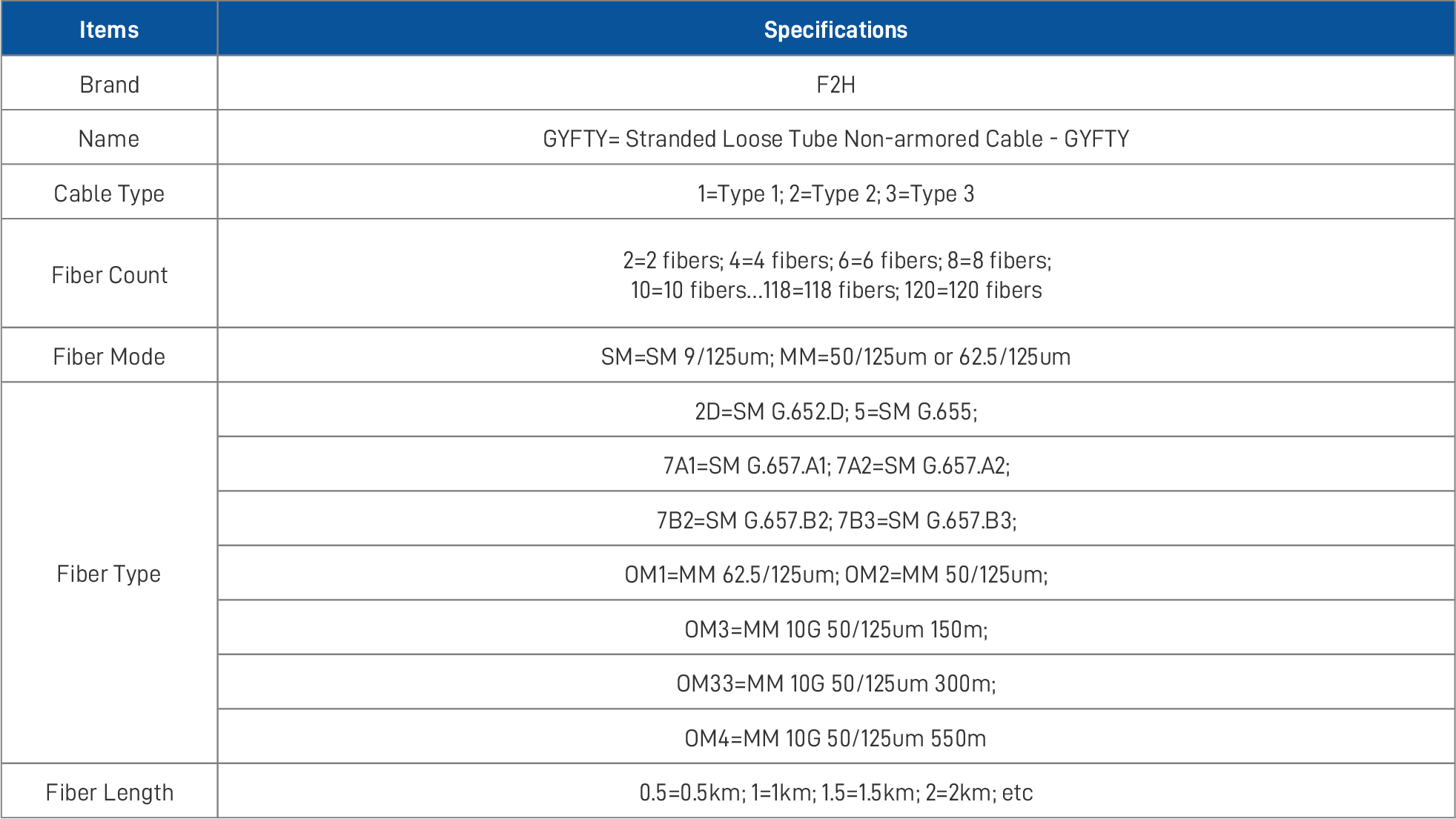

Ordering Information

Tube Non-armored Cable – GYFTY2_0.png
