Self-supporting Aerial Fiber Optic Cable – GYTC8A

Figure 8 Self-supporting Aerial Fiber Optic Cable – GYTC8A.jpg
Figure 8 Self-supporting Aerial Fiber Optic Cable – GYTC8A.jpg

Functions

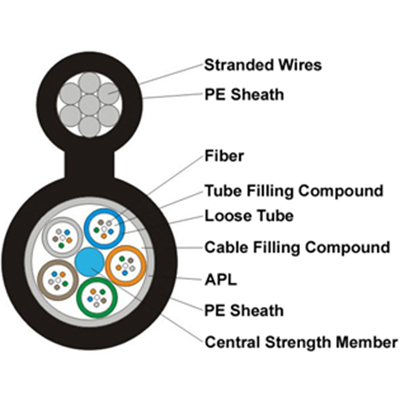

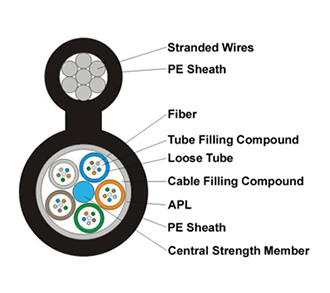

Cable Structure:The 250um bare fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire locates in the center of core as a metallic strength member. Tubes and fillers are stranded around the strength member into a compact and circular cable core. After an Aluminum Polyethylene Laminate (APL) moisture barrier is applied around the cable core, this part of cable accompanied with the stranded wires as the supporting part is completed with a polyethylene (PE) sheath to be figure 8 structure. This type of cable is specifically applied for self-supporting aerial installation.

DATASHEET

SOFTWARE

MANUAL

CERTIFICATE

Features

Figure 8 Self-supporting Aerial Fiber Optic Cable – GYTC8A.jpg

1.Good mechanical and temperature performance

2.PE sheath protects cable from ultraviolet radiation

3.High strength loose tube that is hydrolysis resistant

4.Special tube filling compound ensure a critical protection of fiber

5.High tensile strength of stranded wires meet the requirement of self-supporting and reduce the installation cost

6.The following measures are taken to ensure the cable watertight:   APL moisture barrier   100% cable core filling   Loose tube filling compound   Steel wire used as the central strength member

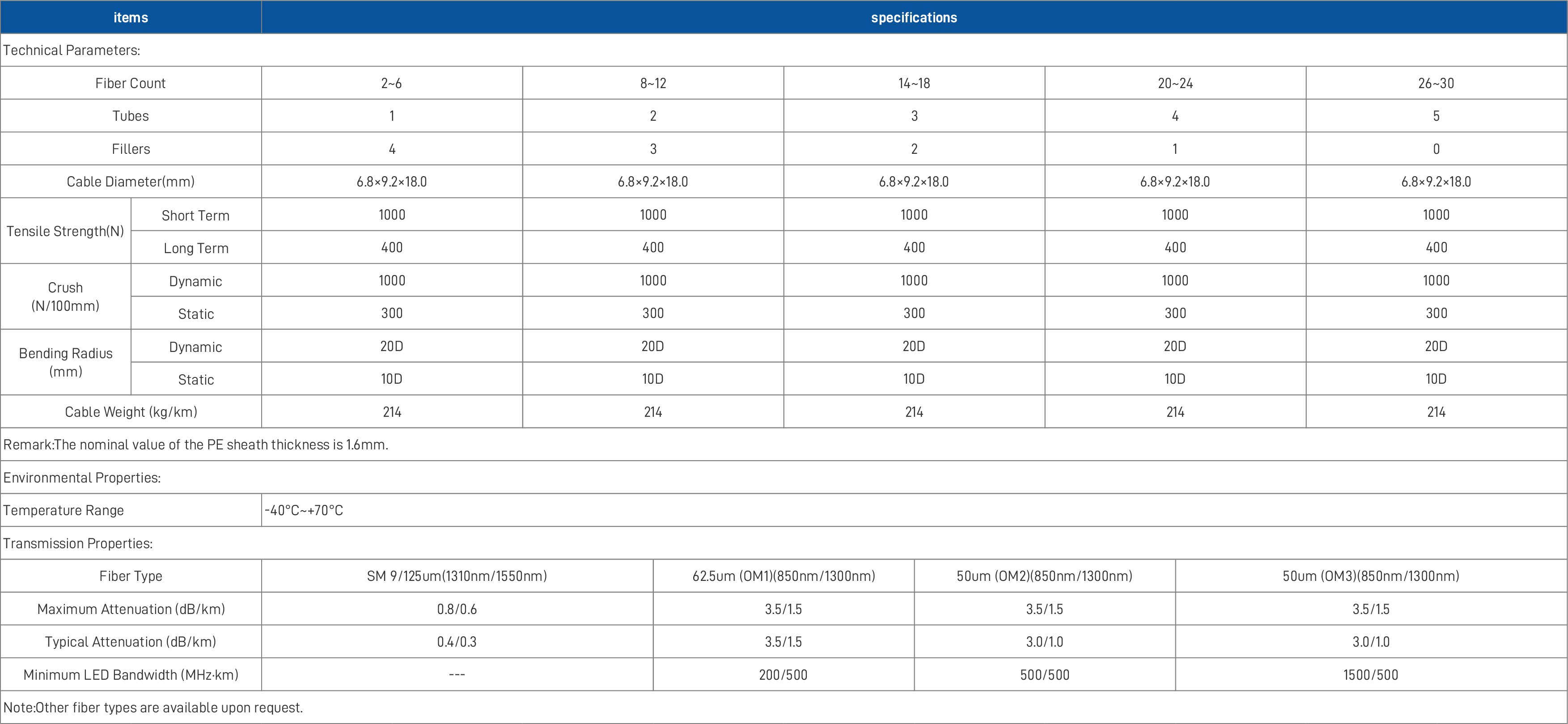

Parameter

Fiber Optic Cable – GYTC8A 1.png

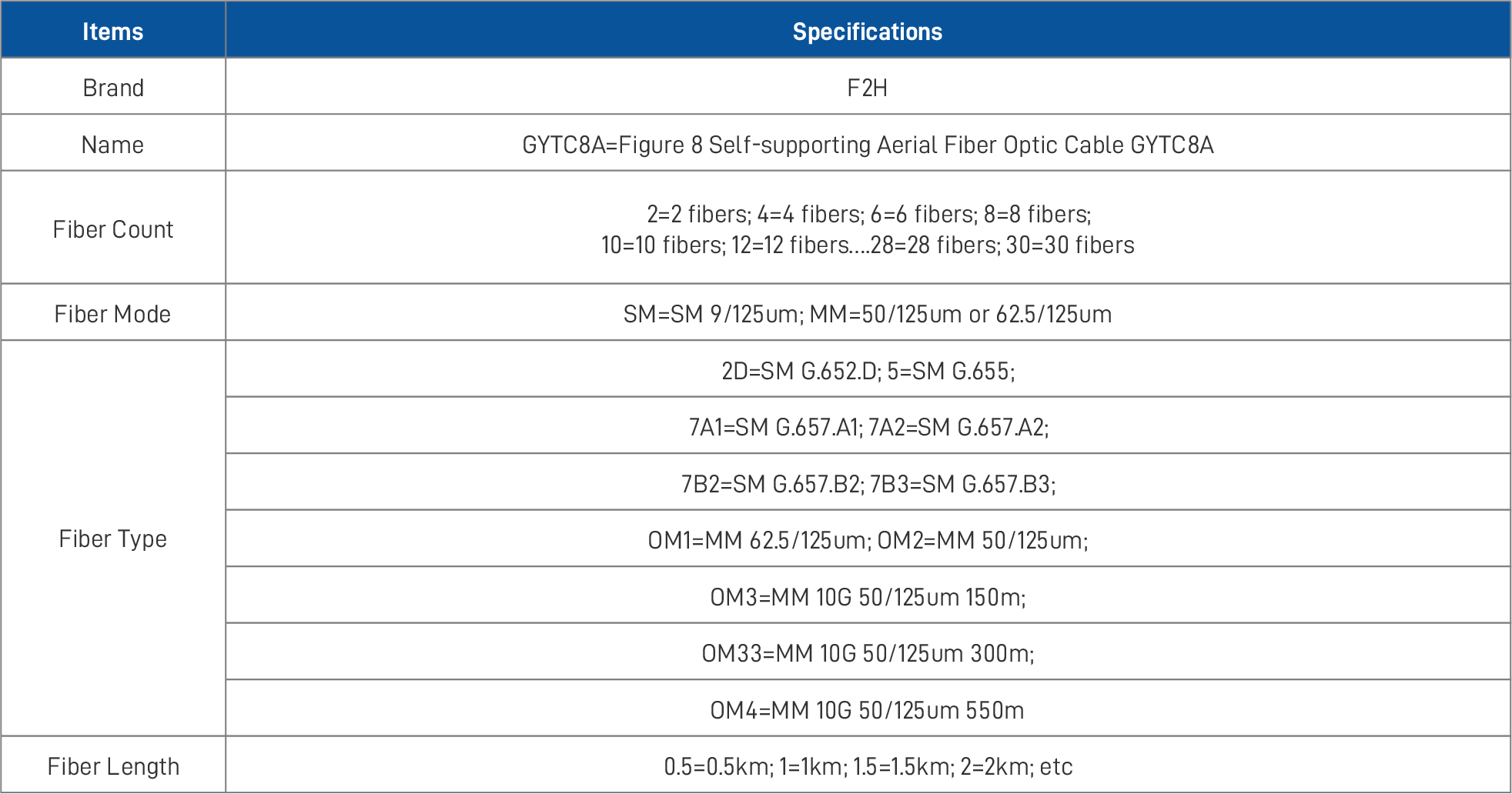

Ordering Information

Fiber Optic Cable – GYTC8A 2_0.png
