Stranded Loose Tube Non-metallic Strength Member Double Armored Cable – GYFTA53

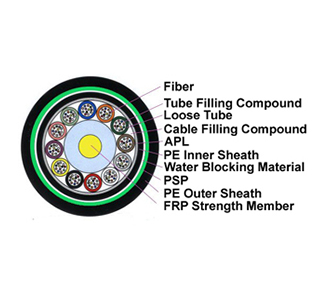

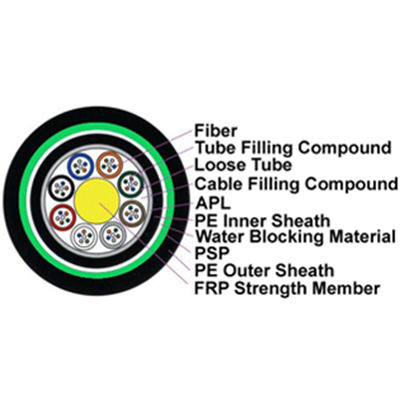

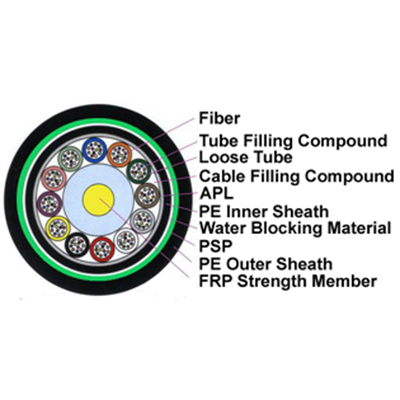

Cable Structure:The 250um bare fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A Fiber Reinforced Plastic (FRP) locates in the center of core as a non-metallic strength member. Tubes and fillers are stranded around the strength member into a compact and circular cable core. An Aluminum Polyethylene Laminate (APL) is applied around the cable core. Then the cable core is covered with a thin PE inner sheath, which is filled with jelly to protect it from water ingress. After a corrugated steel armor is applied, the cable is completed with a PE outer sheath.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
1.Crush resistance and flexibility
2.Good mechanical and temperature performance
3.PE sheath protects cable from ultraviolet radiation
4.High strength loose tube that is hydrolysis resistant
5.Special tube filling compound ensure a critical protection of fiber
6.The following measures are taken to ensure the cable watertight:Single Fiber Reinforced Plastic as the central strength member、Loose tube filling compound、100% cable core filling、 APL moisture barrier、Water-blocking material、 PSP enhancing moisture-proof
