Uni-tube Non-metallic Non-armored Cable – GYFXTY

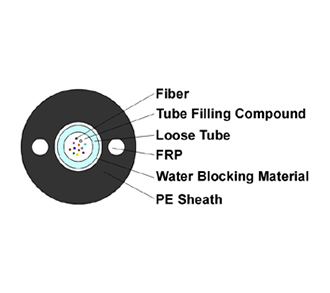

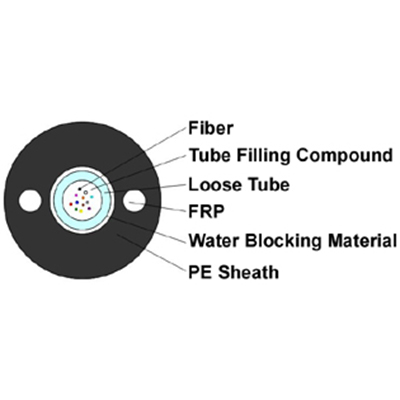

Cable Structure:The 250um bare fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. Over the tube, water-blocking material is applied to to keep the cable watertight. Two parallel Fiber Reinforced Plastics (FRP) are placed at the two sides. Then the cable is completed with a polyethylene (PE) sheath.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
1.Long delivery length
2.Crush resistance and flexibility
3.Two parallel steel wires ensure tensile strength
4.Good mechanical and temperature performance
5.High strength loose tube that is hydrolysis resistant
6.Small diameter, light weight and friendly installation
7.Special tube filling compound ensure a critical protection of fiber
