Stranded Loose Tube Single Armored Double Jacketed Cable – GYTY53


Functions

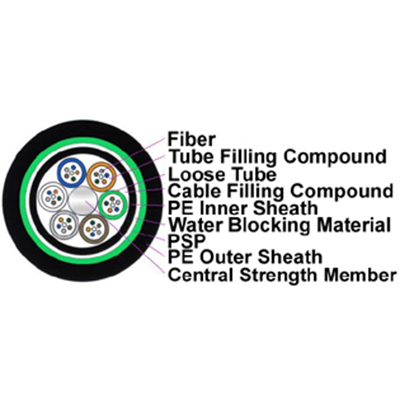

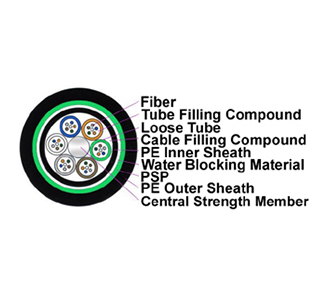

Cable Structure:The 250um bare fibers are positioned in a loose tube made of a high modulus plastic. The tubes are filled with a water-resistant filling compound. A steel wire, sometimes sheathed with polyethylene (PE) for cable with high fiber count, locates in the center of core as a metallic strength member. Tubes and fillers are stranded around the strength member into a compact and circular cable core. The PSP is longitudinally applied over the cable core, which is filled with the filling compound to protect it from water ingress. Then the cable is completed with a PE sheath.

DATASHEET

SOFTWARE

MANUAL

CERTIFICATE

Features


1.Crush resistance and flexibility

2.Good mechanical and temperature performance

3.PE sheath protects cable from ultraviolet radiation

4.High strength loose tube that is hydrolysis resistant

5.Special tube filling compound ensure a critical protection of fiber

6.Specially designed compact structure is good at preventing loose tubes from shrinking

7.The following measures are taken to ensure the cable watertight:Steel wire used as the central strength member、Loose tube filling compound、100% cable core filling、PSP enhancing moisture-proof、Water-blocking material

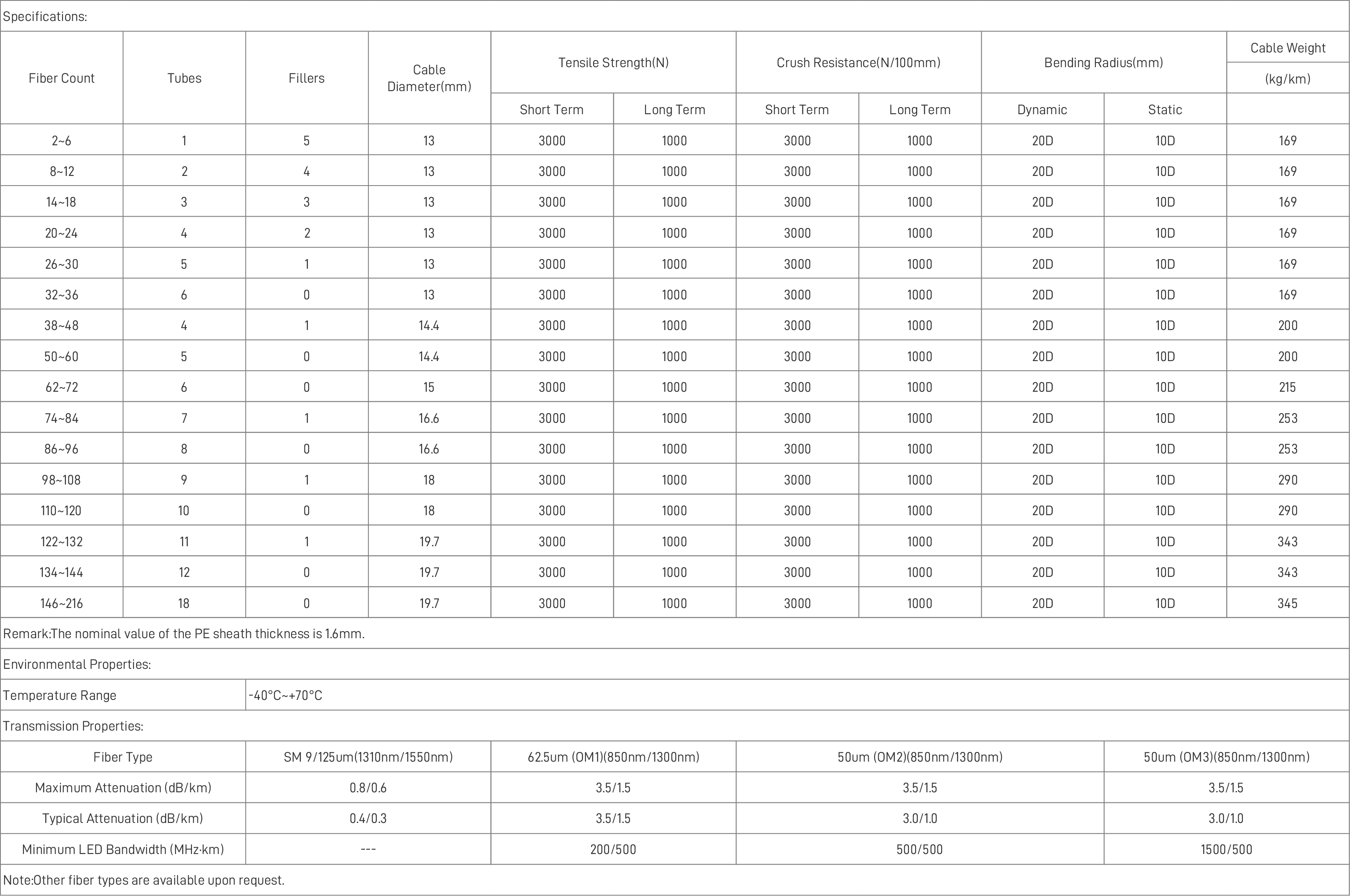

Parameter

Double Jacketed Cable – GYTY531.png

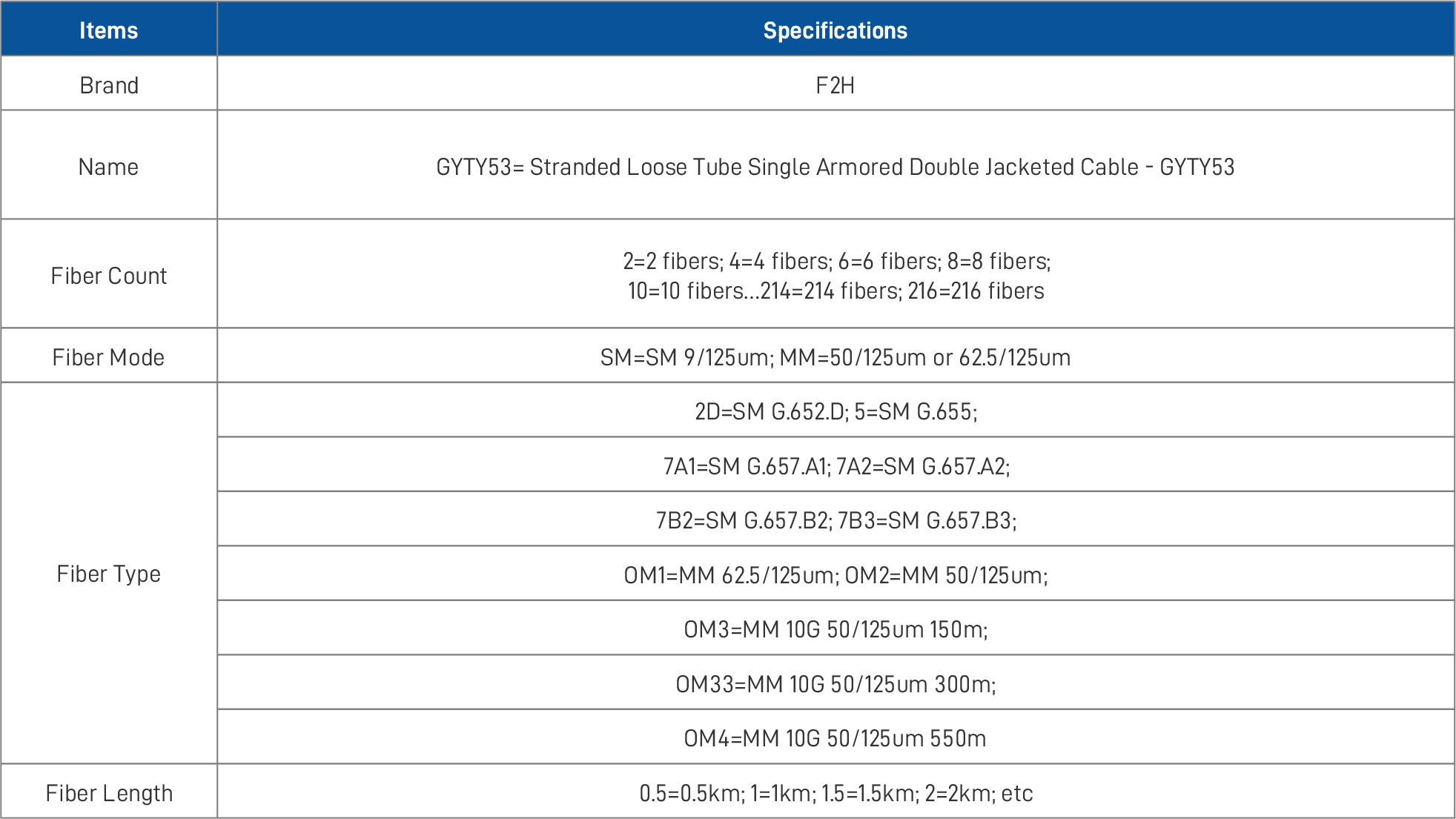

Ordering Information

Double Jacketed Cable – GYTY532.png
