Mini1000 Smart OTDR

GRANDWAY

Functions

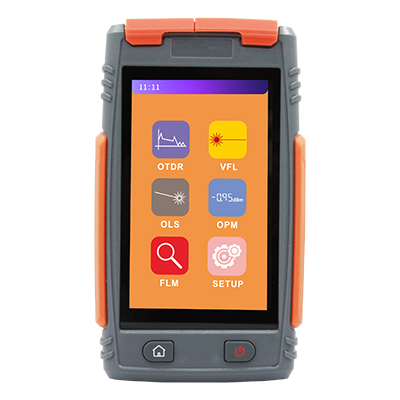

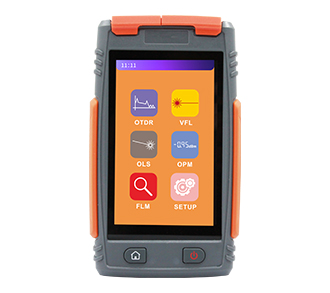

MINI1000 Smart OTDR is the latest OTDR of Grandway. Although it is a handheld OTDR, it can measure the length of optical fiber over 60km. Smaller size and more sensitive touch screen for testing, just like operating a mobile phone.4 inch color high definition display screen, visible even in strong sunlight.

DATASHEET

SOFTWARE

MANUAL

CERTIFICATE

Features

  • 4 inch color LCD, portable design and easy to carry

  • Multi functions 10mw VFL, stable laser source, optical power meter, Fiber link map and electric torch

  • Support Multi-point touch operation like Mobile phone

  • 22dB dynamic range support over 60km optical fiber measurement

  • 1650nm with filter live fiber testing module is available

  • Fast real-time test response and trace refresh speed

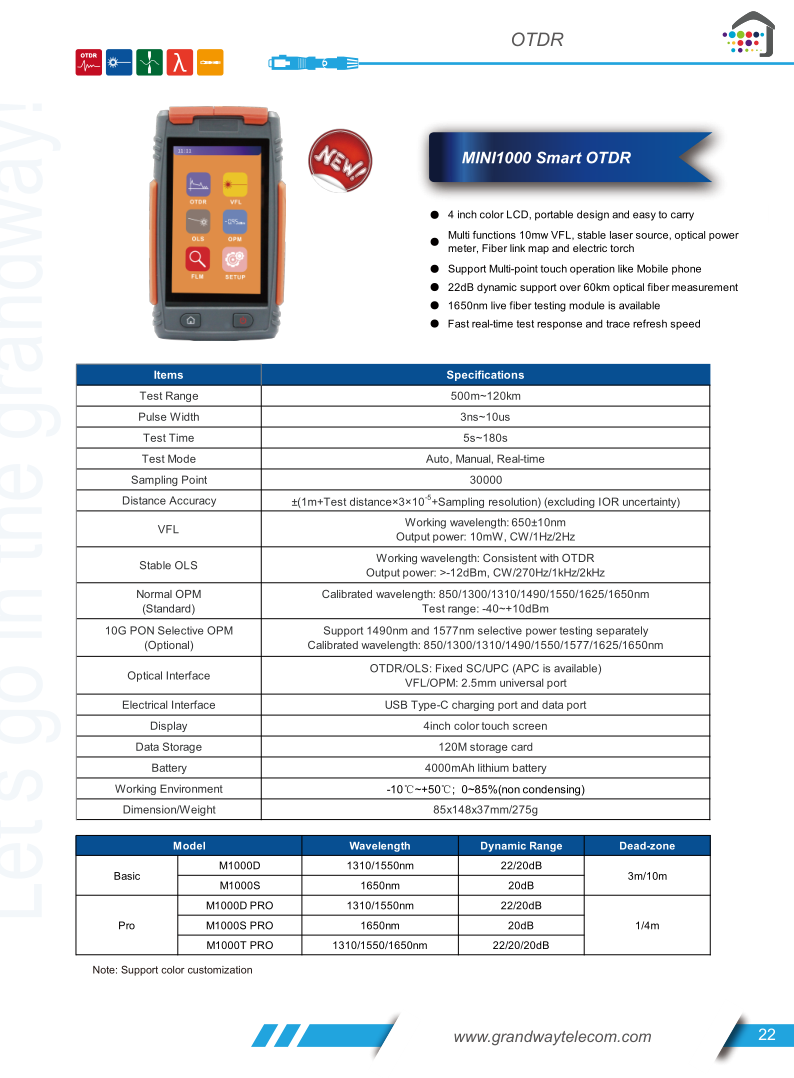

Parameter

ltemsSpecifications
Basic VersionM1000D: 1310/1550nm; 22/20dB; 3/10m deadzone
M1000S: 1650nm; 20dB; 3/10m deadzone
Pro VersionM1000D PRO: 1310/1550nm; 22/20dB; 1m/4m deadzone; Support bluetooth
M1000S PRO: 1650nm; 20dB; 1m/4m deadzone; Support bluetooth
M1000T PRO: 1310/1550/1650nm; 22/20/20dB; 1m/4m deadzone; Support bluetooth
Test Range500m~120km
Pulse Width3ns~10us
Test Time5s~180s
Test ModeAuto, Manual, Real-time
Sampling Point30000
Distance Accuracy±(1m+Test distance×3×10-5 +Sampling resolution) (excluding IOR uncertainty)
Visual Fault Locator
Working wavelength650±10nm
Output power 10mw; CW/1Hz/2Hz
Optical Laser Source
Working wavelengthConsistent with OTDR
Output power>-12dBm; CW/270Hz/1kHz/2kHz
Broadband Power Meter
Calibrated wavelength850/1300/1310/1490/1550/1625/1650nm
Test range-40~+10dBm
10G PON Selective Power MeterOptional
Selective power test
Support 1490nm and 1577nm selective power testing separately
Calibrated wavelength850/1300/1310/1490/1550/1577/1625/1650nm
Test range-40~+10dBm
Others
Optical InterfaceOTDR/OLS: SC/UPC (APC is available); VFL/OPM: 2.5mm universal port
Electrical InterfaceUSB Type-C charging port and data port
Display4inch color touch screen
Data Storage120M storage card
Battery4000mAh lithium battery
Dimension85x148x37mm
Weight275g
