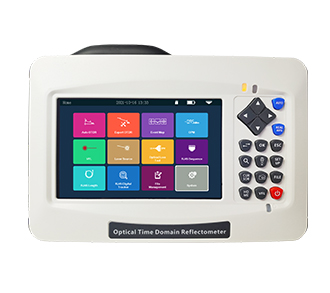

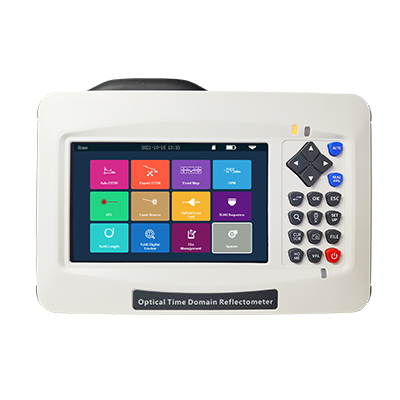

FHO3000L Mini Series OTDR

GRANDWAY
undefined
undefined

Functions

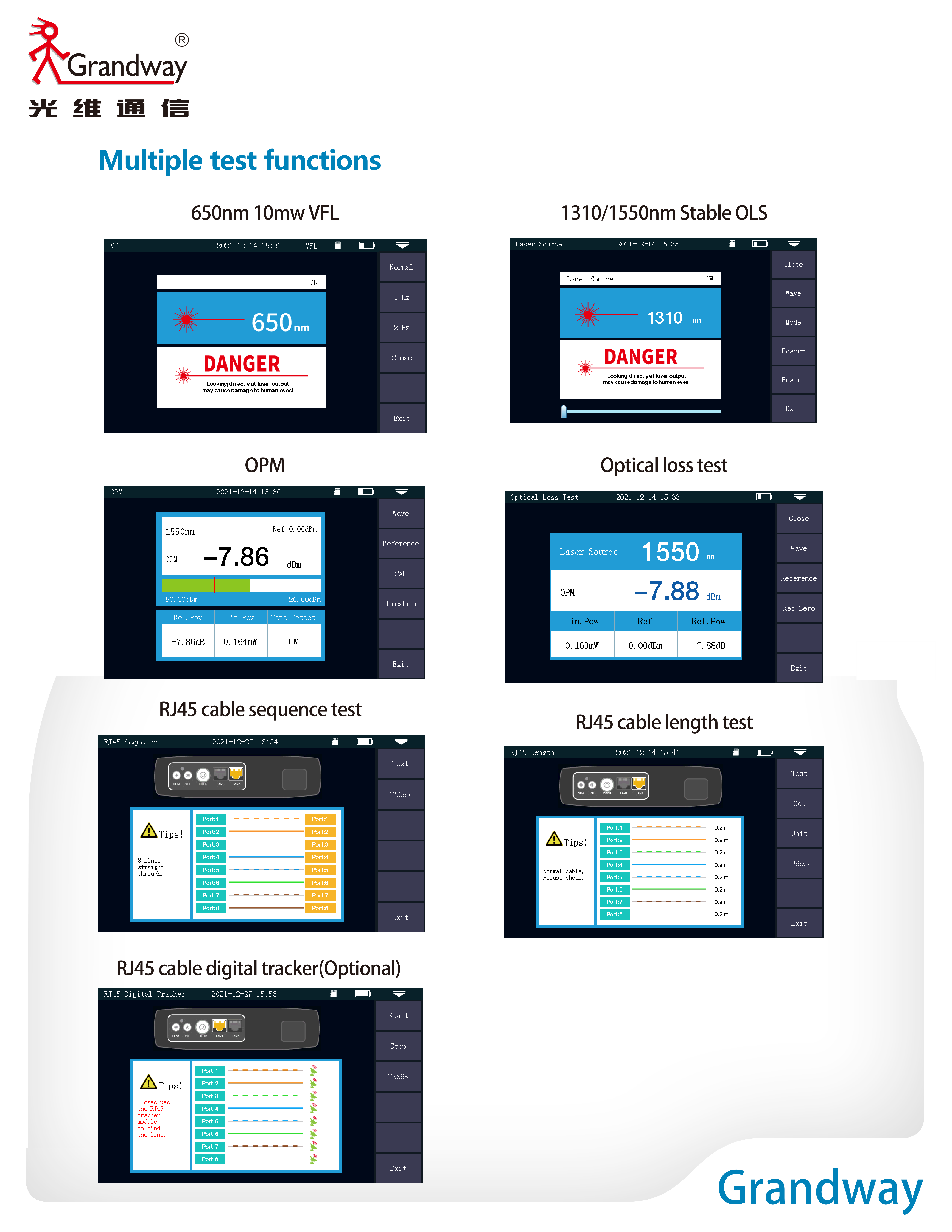

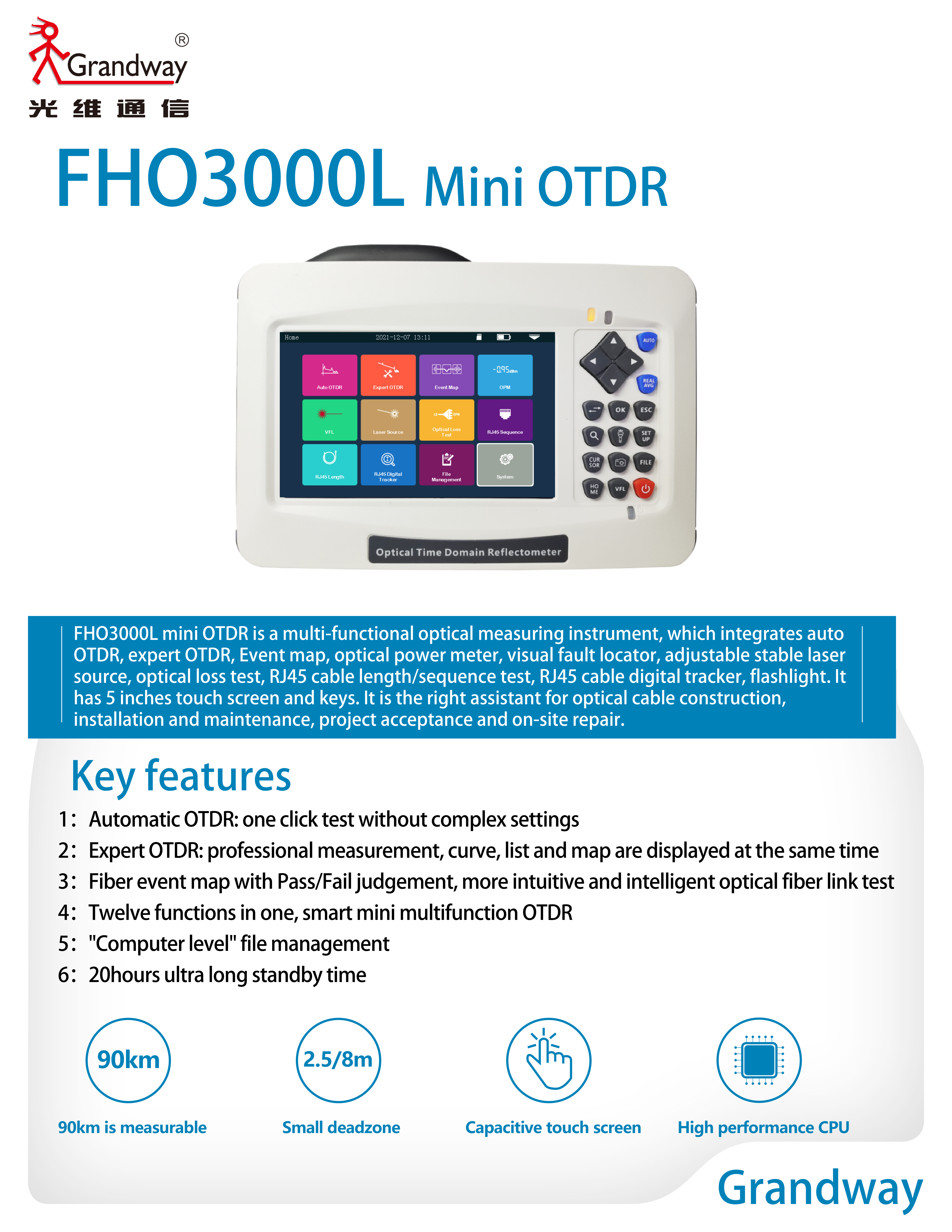

FHO3000L mini OTDR is a multi-functional optical measuring instrument, which integrates auto OTDR, expert OTDR, Event map, optical power meter, visual fault locator, adjustable stable laser source, optical loss test, RJ45 cable length/sequence test, RJ45 cable digital tracker, flashlight. It has 5 inches touch screen and keys. It is the right assistant for optical cable construction, installation and maintenance, project acceptance and on-site repair.

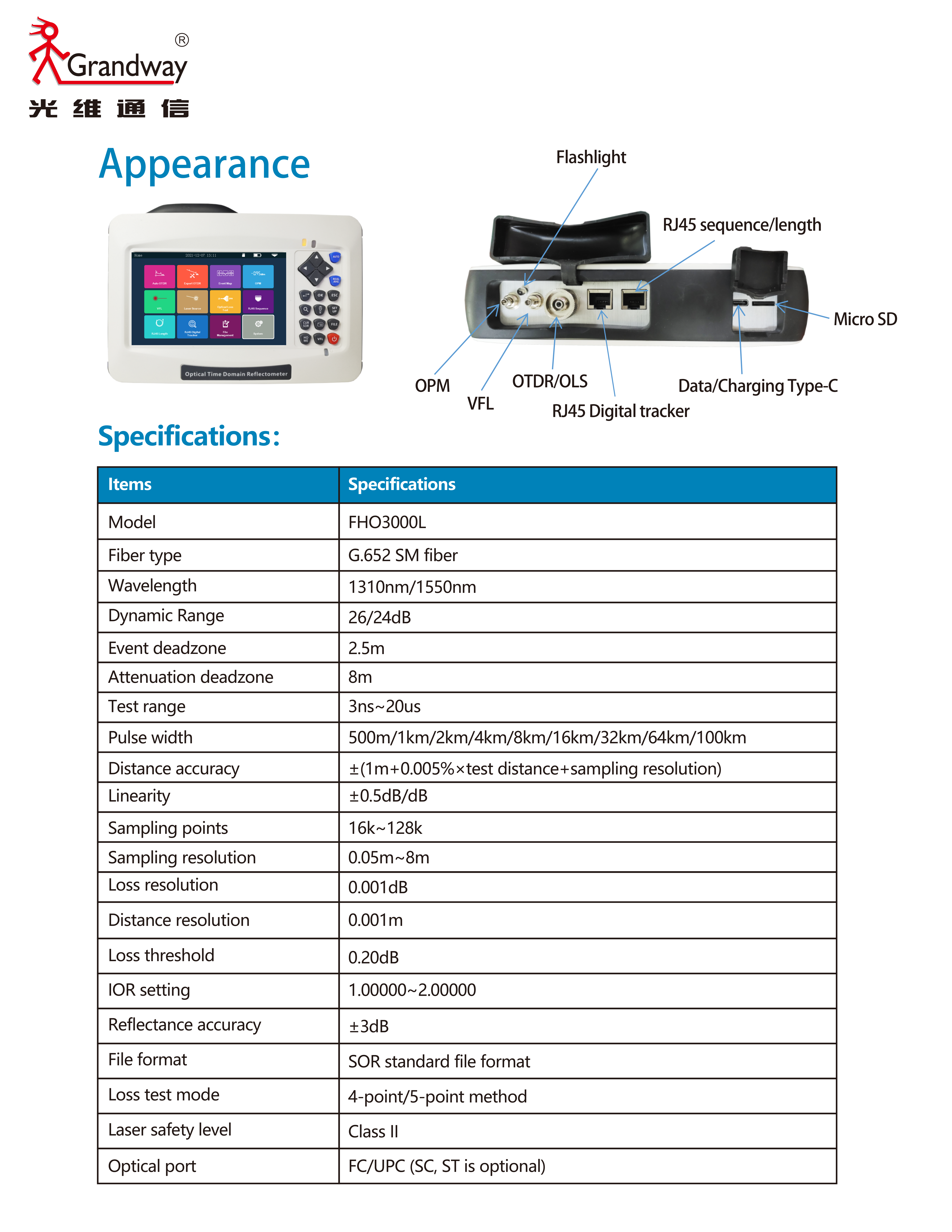

5 inch

Touch screen size

26/24dB

Dynamic range

8m

Attenuation dead zone

2.5m

Event dead zone

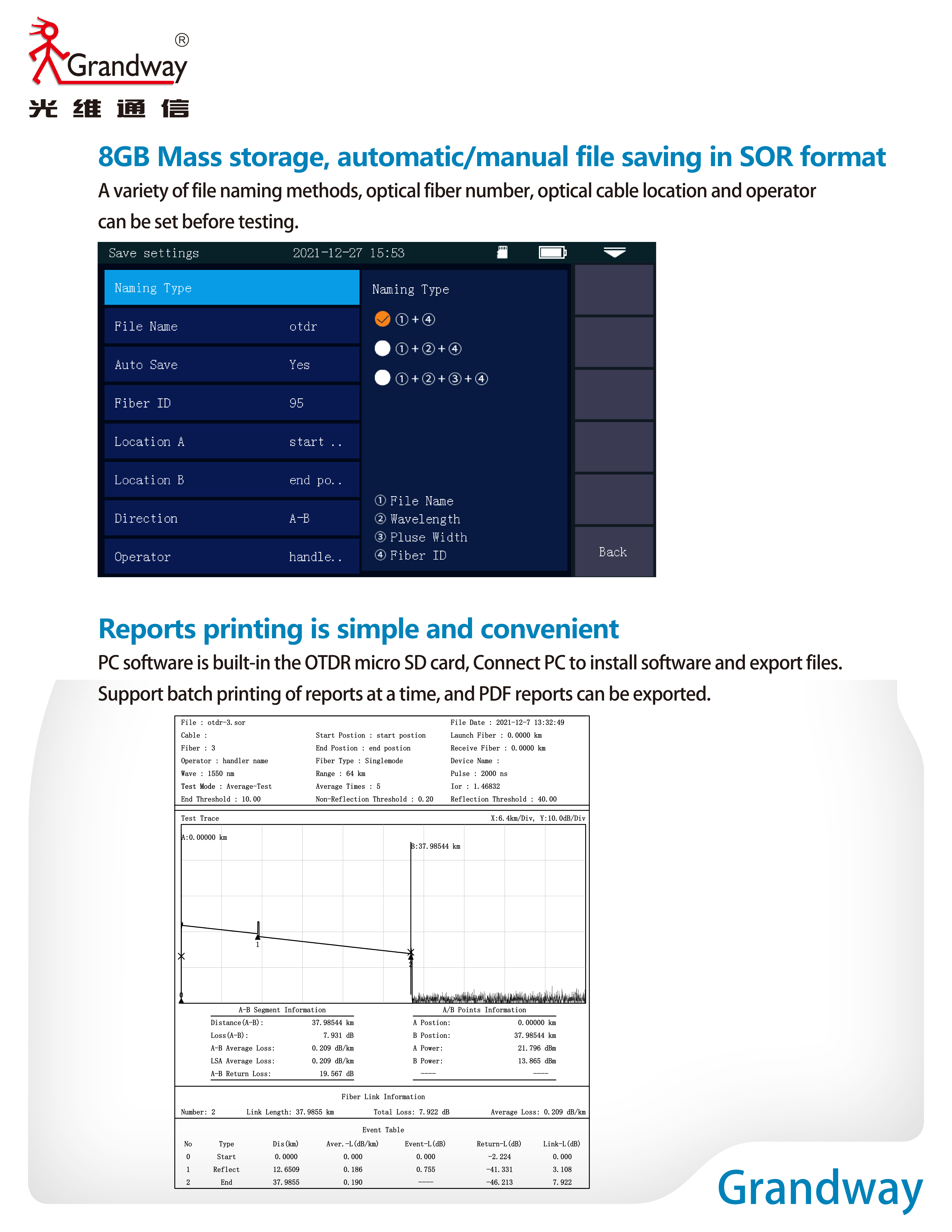

8G TF-Card

Trace storage

FHO3000 Mini OTDR

DATASHEET

FHO3000 Mini OTDR

SOFTWARE

FHO3000 Mini OTDR

MANUAL

FHO3000 Mini OTDRng

CERTIFICATE

Features

undefined

12 in 1, smart mini multifunction OTDR

5 inch color touch screen

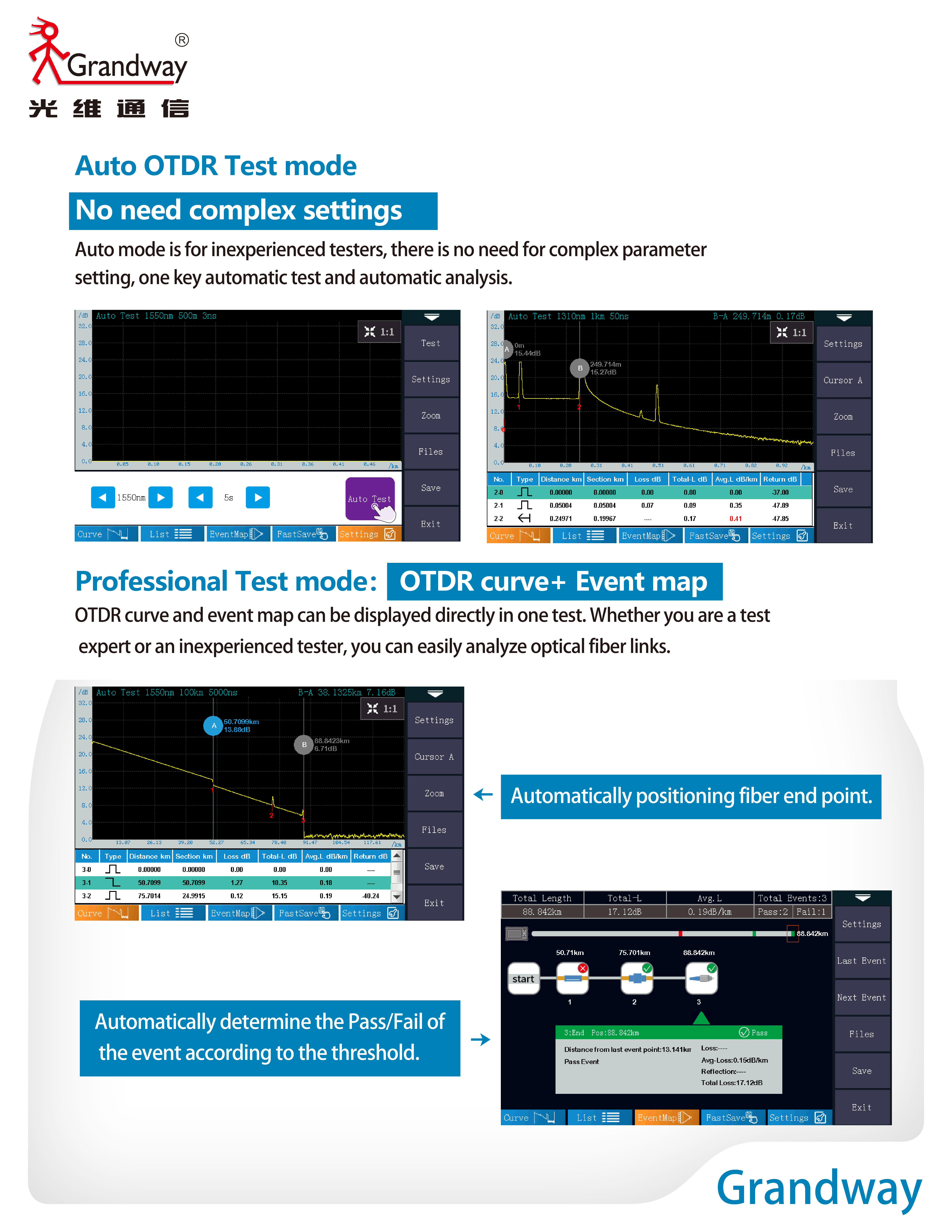

Automatic OTDR: one click test without complex settings

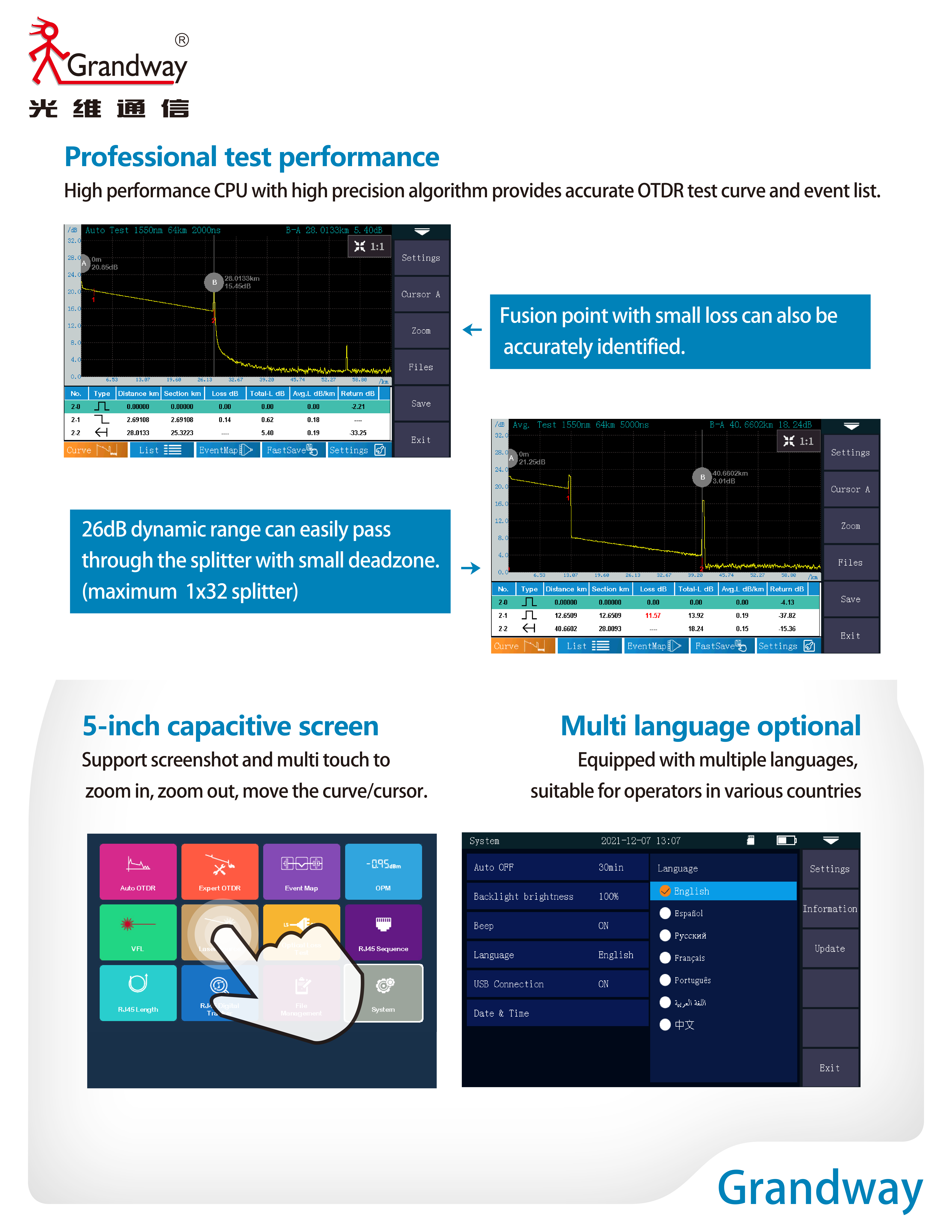

Expert OTDR: professional measurement, curve, list and map are displayed at the same time

FLM(fiber link map), more intuitive and intelligent optical fiber link test

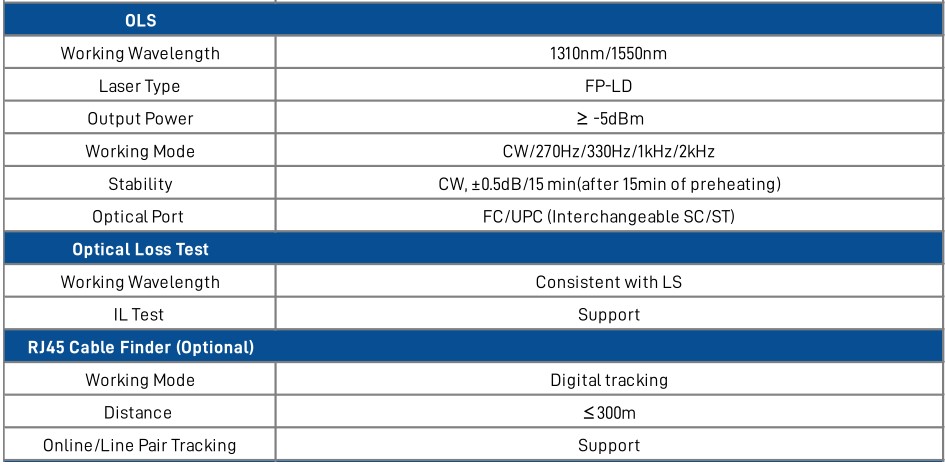

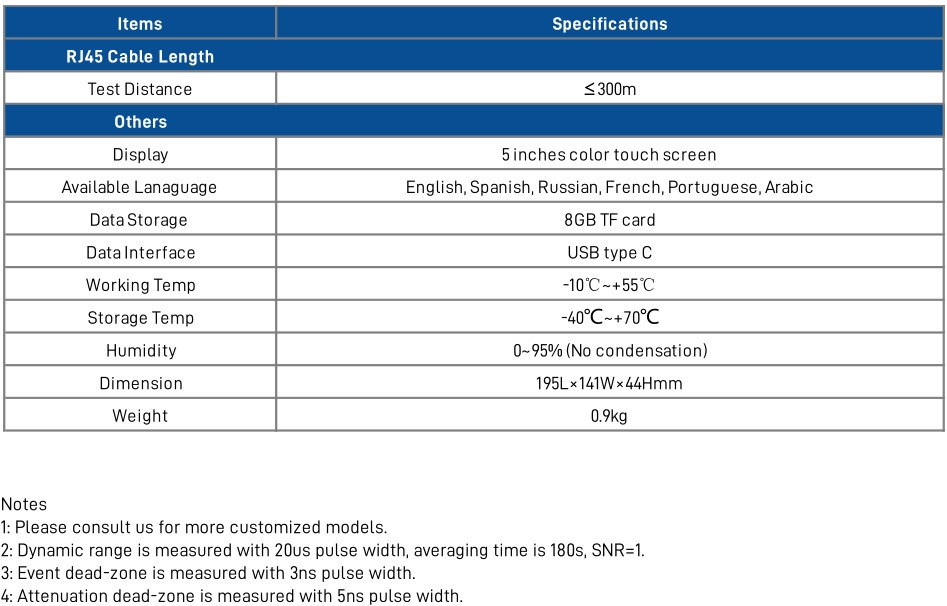

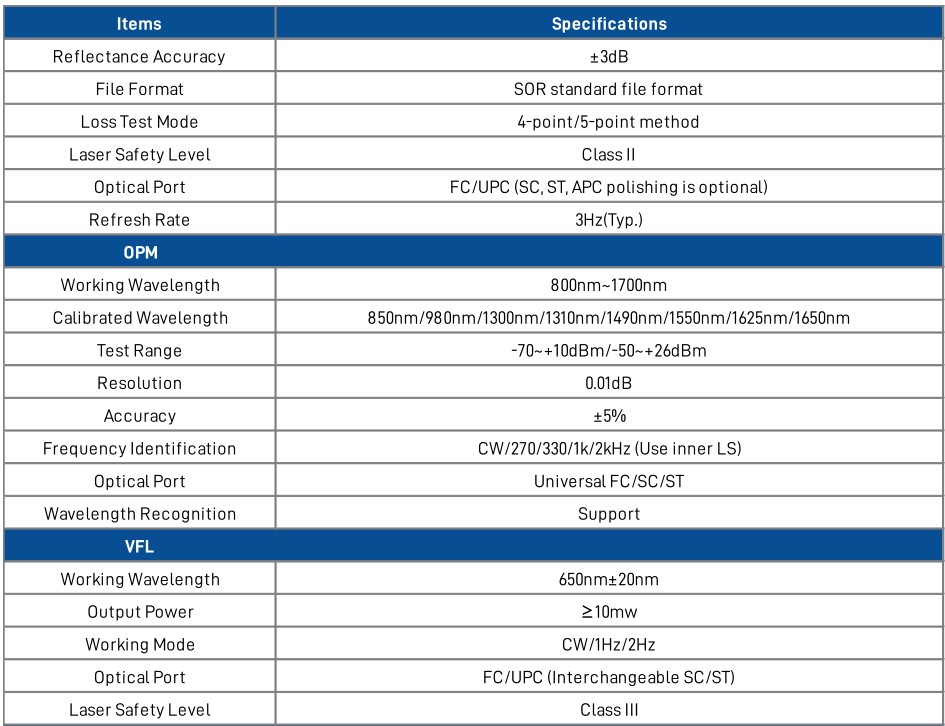

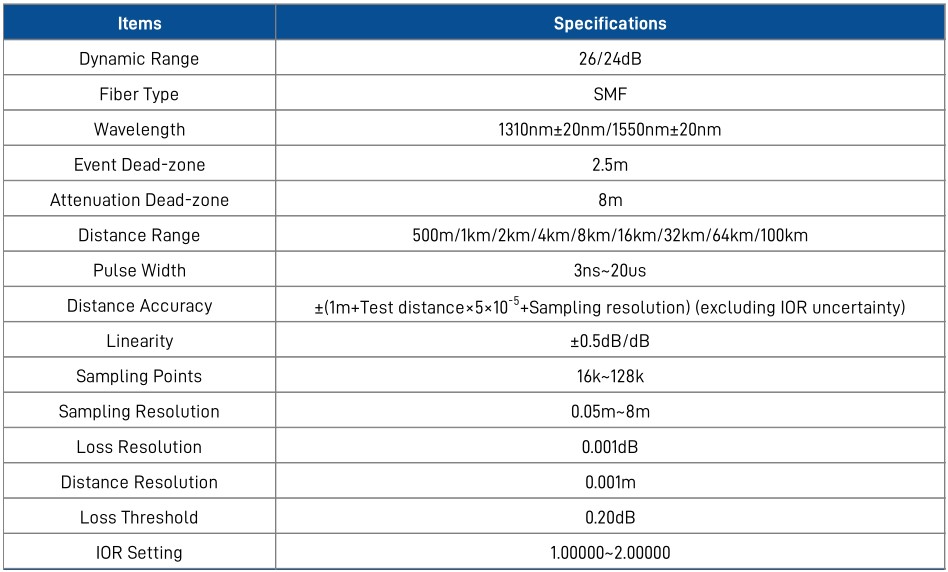

Parameter
