Functions

FHO1000 Handheld OTDR is the latest smart OTDR of Grandway. Although it is a handheld OTDR, it can measure the length of optical fiber over 100km. In short distance optical fiber testing, with the excellent 1m/4m deadzone performance, all kinds of continuous connectors, attenuation loss and other events can be clearly distinguished.

3.5inch LCD

Screen size

28/26dB

Dynamic range

4m

Attenuation dead zone

1m

Event dead zone

>100km

Test distance


FHO1000 Handheld OTDR

DATASHEET

FHO1000 Handheld OTDR

SOFTWARE

FHO1000 Handheld OTDR

MANUAL

FHO1000 Handheld OTDR

CERTIFICATE

FHO1000 Handheld OTDR Features


undefined

3.5 inch color LCD, portable design and easy to carry.

Multi function integration, support 10mw VFL, stable laser source, optical power meter, RJ45 line sequence test and other functions.

High precision, short deadzone OTDR can accurately test all kinds of continuous connectors and attenuation points in the line.

28dB dynamic support over 100km optical fiber measurement.

Bluetooth connection of mobile phone supports fast transmission of test files to mobile phone.

Mobile phone remote control, control OTDR test and curve view analysis through the mobile phone.

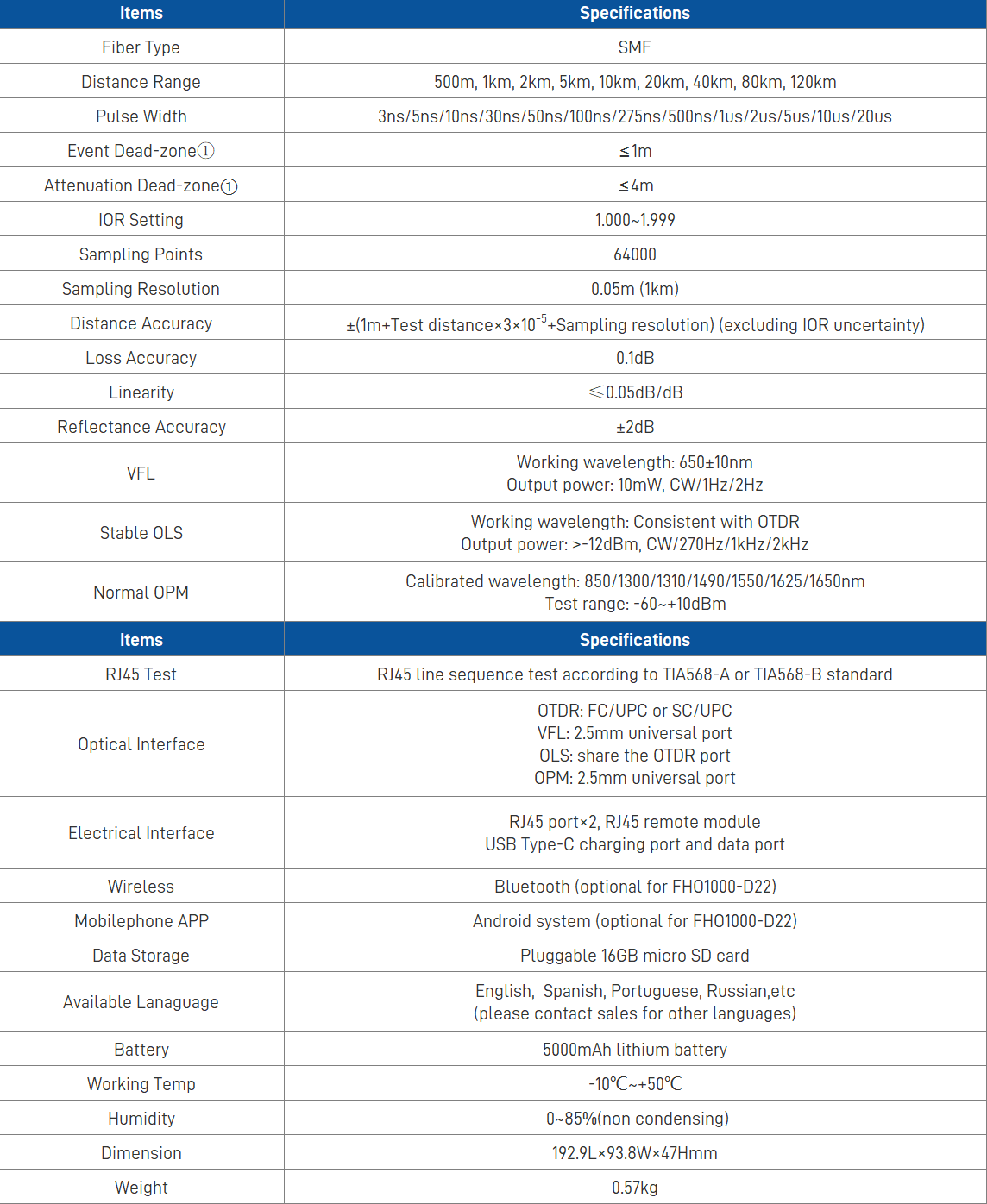

FHO1000 Handheld OTDR Parameters
