Optical Distribution Frame

F2H-ODU-P8 Series ODF

Functions

F2H-ODU-P8 Series ODF is used as terminal equipment of fiber optic cable for optical fiber wiring, fixation, fusion and patching.

DATASHEET

SOFTWARE

MANUAL

CERTIFICATE

Order information

Features

Features
Parameter
Order information

F2H-ODU-P8 Optical Distribution Frame Features

1.Cable clamping and strength member fixation system.

2.Changeable adapter panel suitable for various adapters.

3.Clear fiber number marking on adapter panel and for pigtails.

4.Modular design of eight adapter panel installation.

5.The full front of drawer-type box is easy to operate and construct.

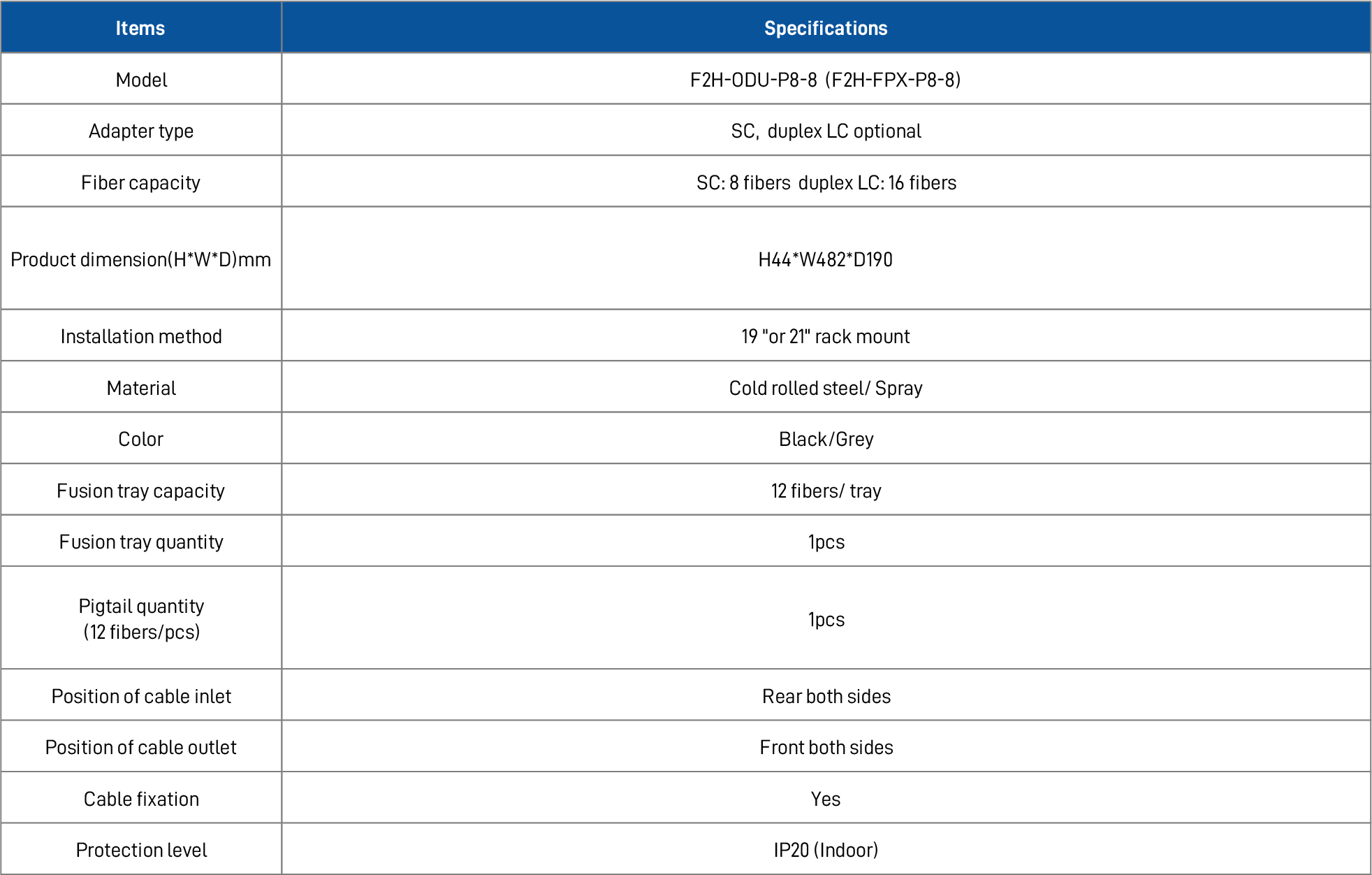

F2H-ODU-P8 Optical Distribution Frame Specification Parameters

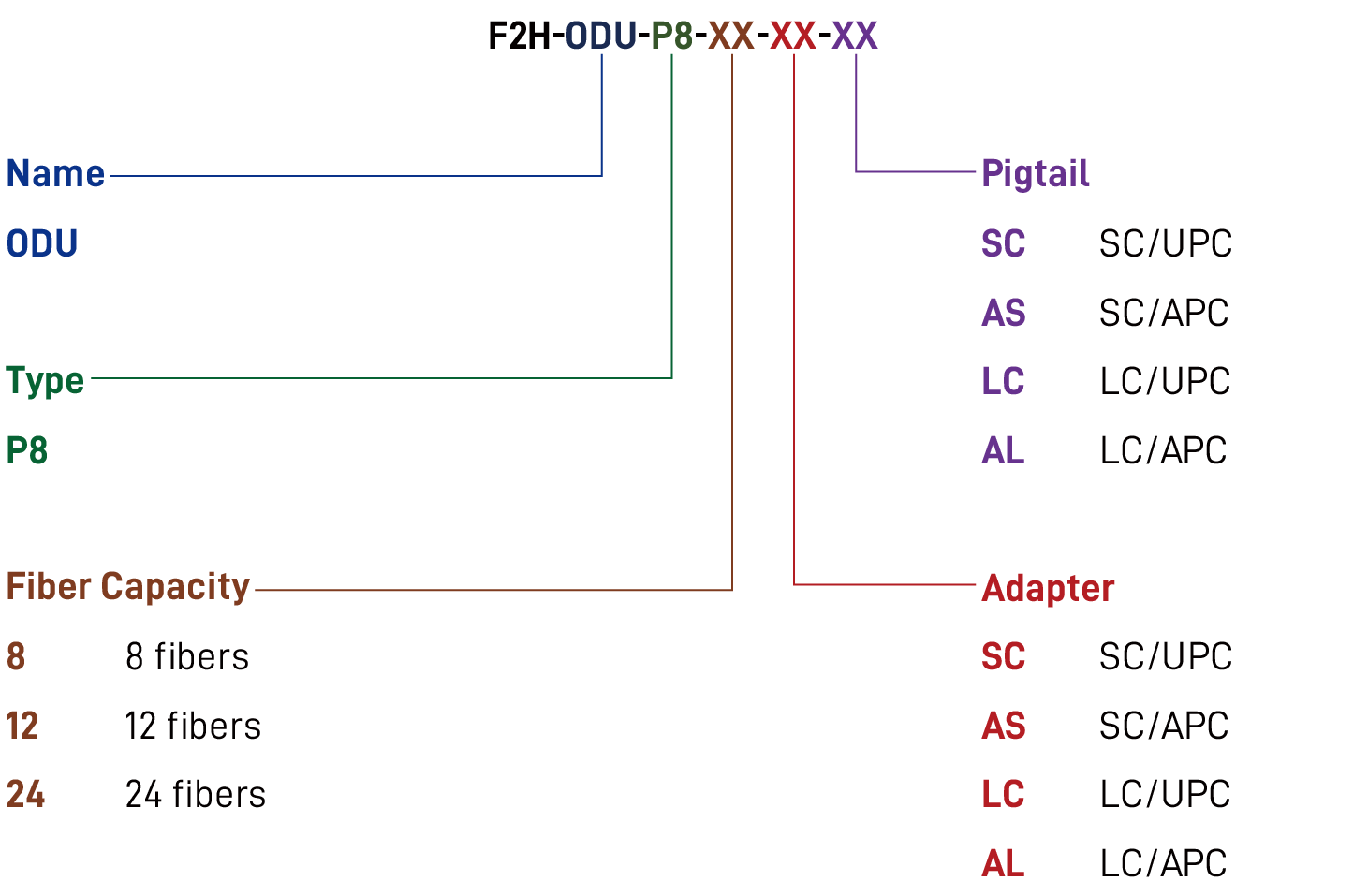

F2H-ODU-P8 Optical Distribution Frame Order information
