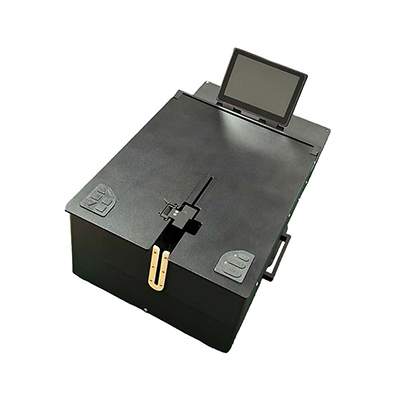

GWCQG Optical Fiber Preparation Machine
GRANDWAY
The machine provides a full automatic solutions for the optical fiber preparation process, automatically performing all the steps for removing, cleaning and cleaving the optical fiber. Convenient operation, high repeatability, suitable for large-scale optical fiber preparation.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Automatic machine
Fast operation time, stripping/cleaning/cleaving in 34 seconds
Automatic collection and cleaning of residues
Alcohol circulatory system
Stable cleaving quality
Good stripping effect
| ltems | Specifications |
|---|---|
| Model | GWCQG-30/31/32 |
| Type | Optical Fiber Preparation Machine |
| Applicable optical fiber material | Quartz optical fiber |
| Re-coating material | UV light curing resin |
| Cladding diameter | GWCQG-30: 125μm; GWCQG-31: 242μm; GWCQG-32: 250μm |
| Coating diameter | GWCQG-30: 250μm; GWCQG-31: 330μm; GWCQG-32: 390~400μm |
| Optical fiber clamp | GWCQG-30: MS-XL-250; GWCQG-31: MS-XL-330; GWCQG-32: MS-XL-400 |
| Cleaving angle（Typical value） | GWCQG-30: 0.5°; GWCQG-31: 0.8°; GWCQG-32: 0.8° |
| Cleaving length | 11-20mm（Beyond the end of clamp） |
| Operating time | 34s |
| Display | 5-inch LCD screen |
| Interface | RS422*1,USB*1 |
| Dimensions | 433(L)*305(W)*162 (H)mm |
| Power supply | Power adapter：DC13.5V／10A |
| Gas pressure | 0.4MPa(4bar) |
| Operating condition | Humidity 0～95%, Temperature： 0～40℃(non dew) |
| Storage condition | Humidity 0～95%, Temperature：-40～80℃(non dew) |
