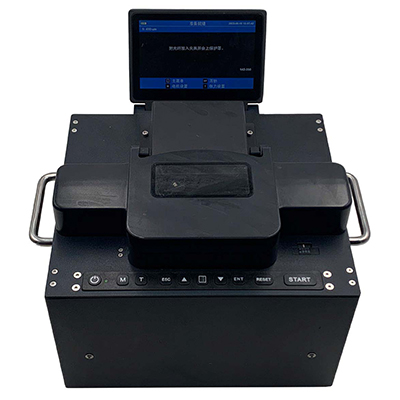

GWCBC-30 Optical Fiber Coating Stripper
GRANDWAY
GWCBC-30 Optical Fiber Coating Stripper is suitable for single-core optical fiber coating adjustment stripping with coating 100~1500μm diameter.
DATASHEET
SOFTWARE
MANUAL
CERTIFICATE
Stable and effective, easy to use and maintain
For single-core optical fiber coating stripping
Suitable for optical fiber with coating 100-1500μm diameter
Compatible to various optical fiber
Internal lithium battery: 20400mAh
| ltems | Specifications |
|---|---|
| Model | GWCBC-30 |
| Type | Optical Fiber Coating Stripper |
| Fiber cladding diameter | Ф60μm-1200μm |
| Fiber coating diameter | Ф100μm-1500μm |
| Stripping length | 1～35mm（Window stripping: 4～31mm） |
| Blade life | Blade life: 350×4(times) |
| Optical fiber quantity | Single core each time |
| Stripping time | Coating stripping action ×4：18s |
| Coating stripping action ×8：35s | |
| Coating stripping action ×16：60s | |
| Dimensions | 238(L)*215(W)*193(H)mm |
| Weight | 6.1kg(With battery) |
| Power supply | External power supply: AC Input:100~240 V (50~60Hz）DC output:13.5V /5A |
| Battery | Internal lithium battery: 10.8V, 20400mAh |
| Operating condition | Temperature: 0～＋40℃; Humidity: ＜95％(non dew)，Altitude: 0～5000m |
