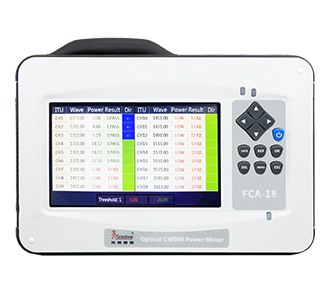

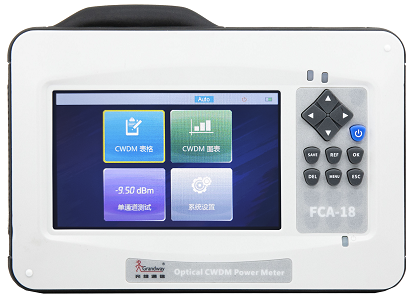

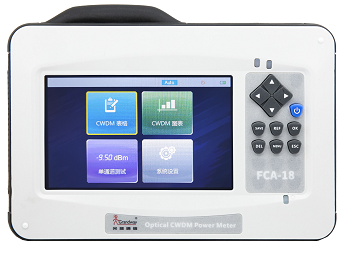

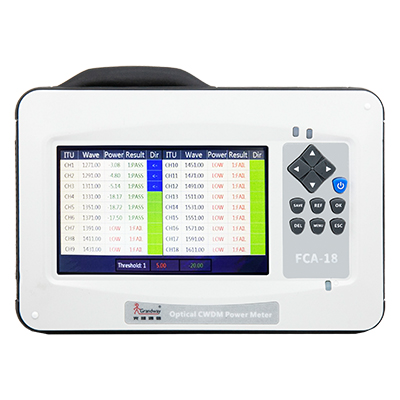

FCA-18 CWDM Power Meter

FCA-18 CWDM Power Meter
FCA-18 CWDM Power Meter
FCA-18 CWDM Power Meter

Functions

FCA-18 CWDM optical power meter is an ideal tester for the installation and maintenance of CWDM system. It can realize wavelength identification and accurate power measurement for 18 channels of 1271nm ~ 1611nm used in CWDM system. FCA-18B also supports connect in series into CWDM system and display up to 18 wavelengths at the same time. The test will not interrupt the operating CWDM system.

InGaAs

Detector type

<1.5dB

Insertion Loss

1271~1611nm

Working Wave

-40~+10dBm

Testing Range

18 channels

No Of Channel

FCA-18 CWDM Power Meter

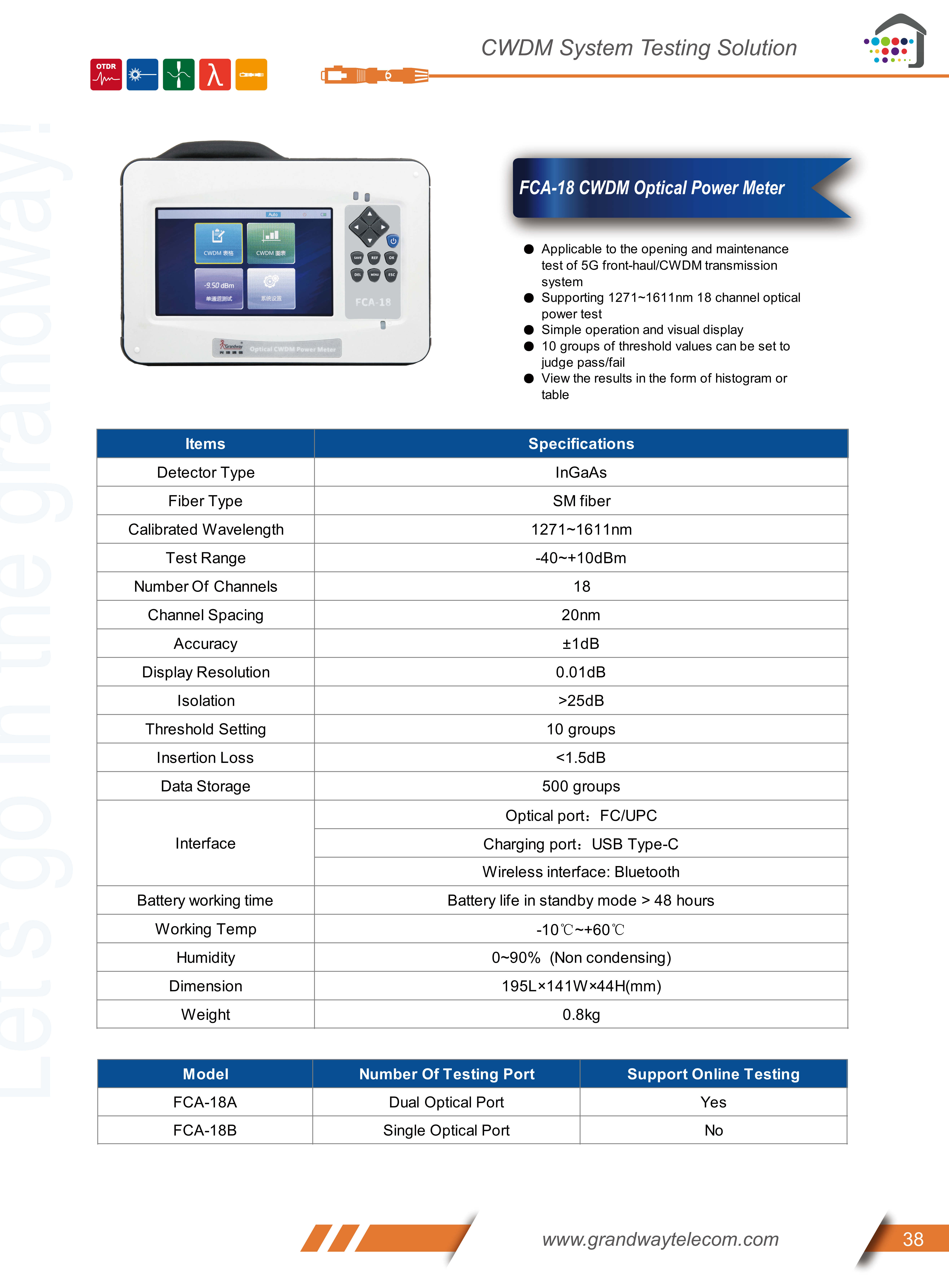

DATASHEET

FCA-18 CWDM Power Meter

SOFTWARE

FCA-18 CWDM Power Meter

MANUAL

FCA-18 CWDM Power Meter

CERTIFICATE

Features

FCA-18 CWDM Power Meter

CWDM channels analysis, support 1271~1611nm 18 channels testing

Present results by histagram or table formats

10 thresholds for judging if PASS/FAIL

Support Bluetooth for connection with mobile phone APP and network management platform

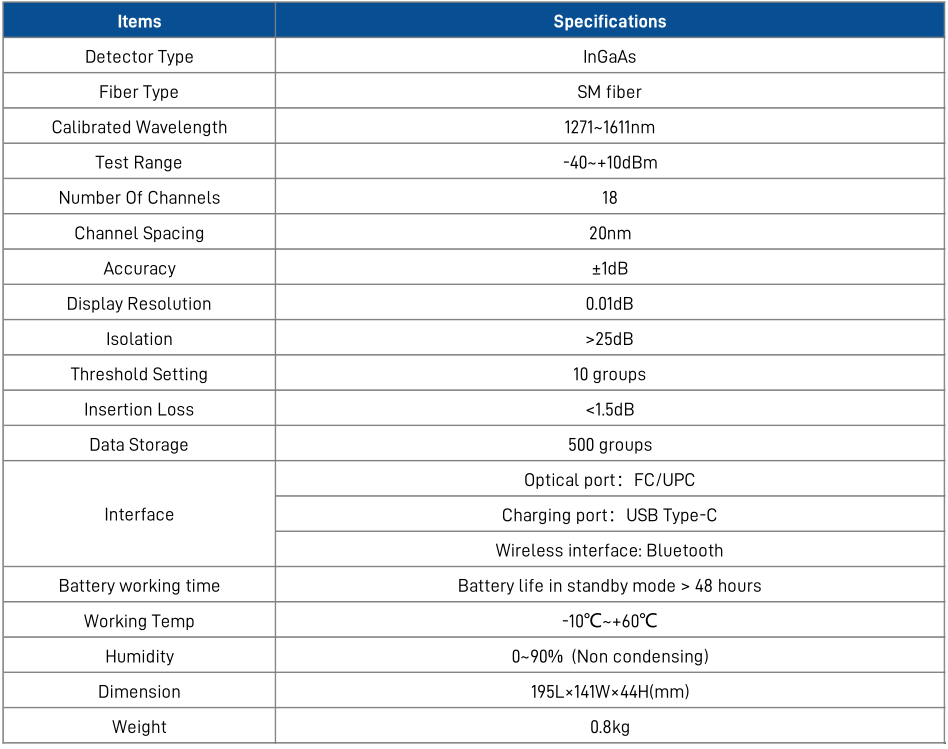

Parameter
